74048 TE (4000) - Toro 122cm Z Master Zero-Turn Mower (SN: 400000000 - 408767851) Deck Lift Assembly Parts Diagram

122cm Z Master Zero-Turn Mower

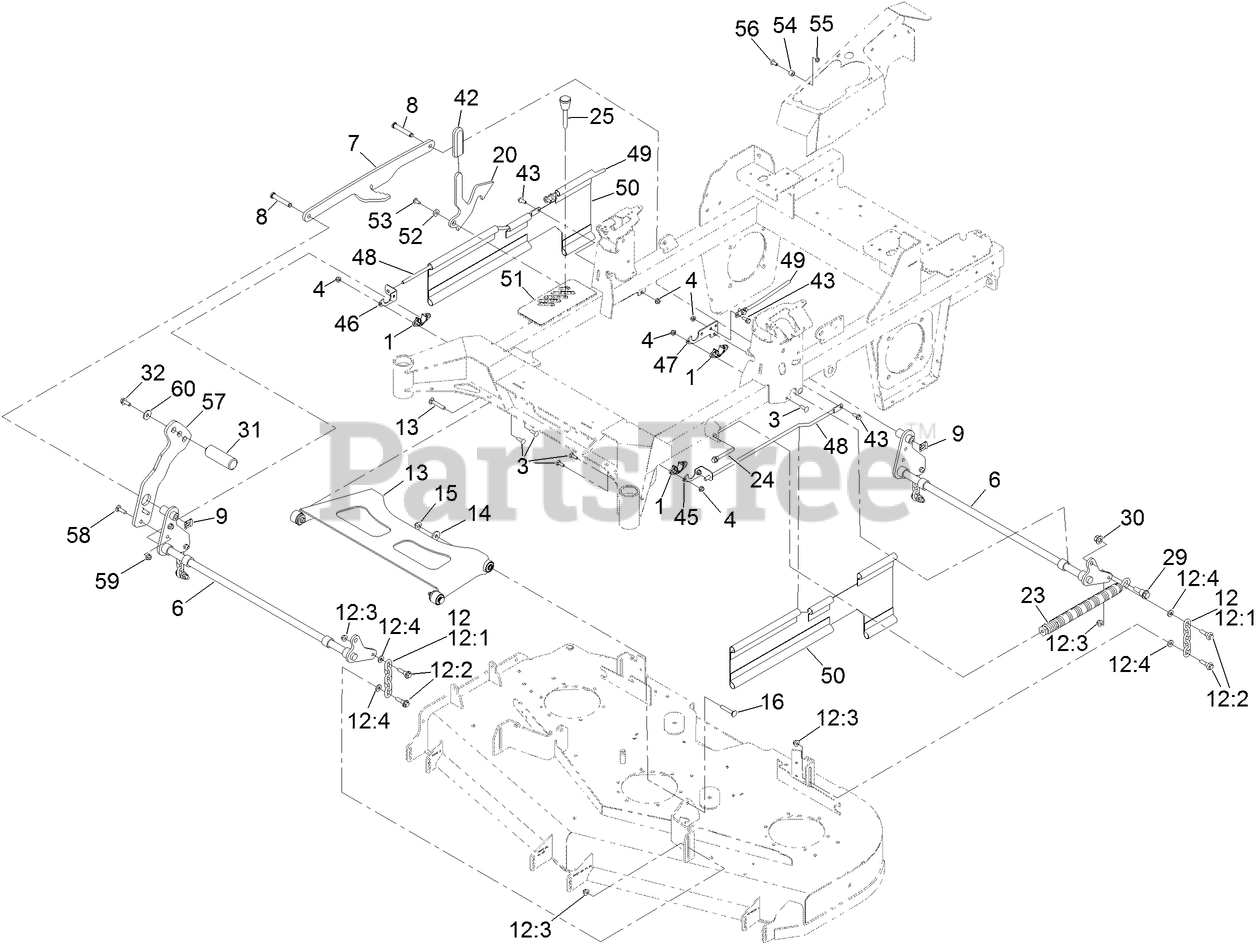

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 12

0

3

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Toro 140-4975-03

DECK LIFT SHAFT ASM [BLACK]

$95.99

$

Usually ships in 3-6 days

0

7

Toro 126-4639-03

LINK-LIFT

$62.99

$

Usually ships in 3-6 days

0

8

Toro 126-9181

PIN-CLEVIS

$8.49

$

In Stock, only 1 left!

0

9

Toro 138-8491

CLIP-PIN

$7.49

$

In Stock, only 2 left!

0

12

Toro 126-8877

DECK CHAIN ASM

$13.99

$

Usually ships in 3-6 days

0

12:1

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

12:2

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, only 3 left!

0

12:3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12:4

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

13

Toro 140-1179

ASM-DECK STRUT W/ BUSHINGS

$137.99

$

In Stock, only 1 left!

0

14

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

15

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 15

0

20

Toro 140-1249

PLATE-TRANSPORT LOCK

$28.99

$

Usually ships in 3-6 days

0

23

Toro 116-0886

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

0

24

Toro 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

25

Toro 126-5401

PIN-HOC

$21.99

$

Usually ships in 3-6 days

0

29

Toro 116-0780

SCREW-SHOULDER, HHF

$9.49

$

Usually ships in 3-6 days

0

30

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

31

Toro 140-4959

PEDAL-FOOT LIFT

$43.99

$

Usually ships in 3-6 days

0

32

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

42

Toro 132-4749

GRIP-LEVER

$5.49

$

In Stock, only 1 left!

0

43

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

45

Toro 140-4918

BRACKET-MOUNT, UPPER FRONT (LH)

$28.99

$

Usually ships in 3-6 days

0

46

Toro 140-4919

BRACKET-MOUNT, UPPER FRONT (RH)

$28.99

$

Usually ships in 3-6 days

0

47

Toro 140-4917

BRACKET-MOUNT, UPPER REAR
(Superseded to 145-1275)

$12.99

$

Usually ships in 3-6 days

0

48

Toro 126-7760

ROD-SUPPORT, UPPER

$92.99

$

Usually ships in 3-6 days

0

49

Toro 140-4920

ROD-SUPPORT, UPPER REAR

$

$

Not available

50

Toro 126-8561

GUARD-SIDE

$153.99

$

Usually ships in 3-6 days

0

51

Toro 140-4927

DECAL-HOC, MM

$41.99

$

Usually ships in 3-6 days

0

52

Toro 104-7658

SPACER

$1.49

$

In Stock, only 2 left!

0

53

Toro 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

54

Toro 114-2754

SPACER

$11.99

$

In Stock, only 4 left!

0

55

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

56

Toro 126-7439

SCREW-TORX

$2.99

$

In Stock, only 1 left!

0

57

Toro 144-2699-03

ARM-DECK LIFT [BLACK]

$43.99

$

Usually ships in 3-6 days

0

58

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

59

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

60

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0
