74041 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) OIL BASE & FILL TUBE ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

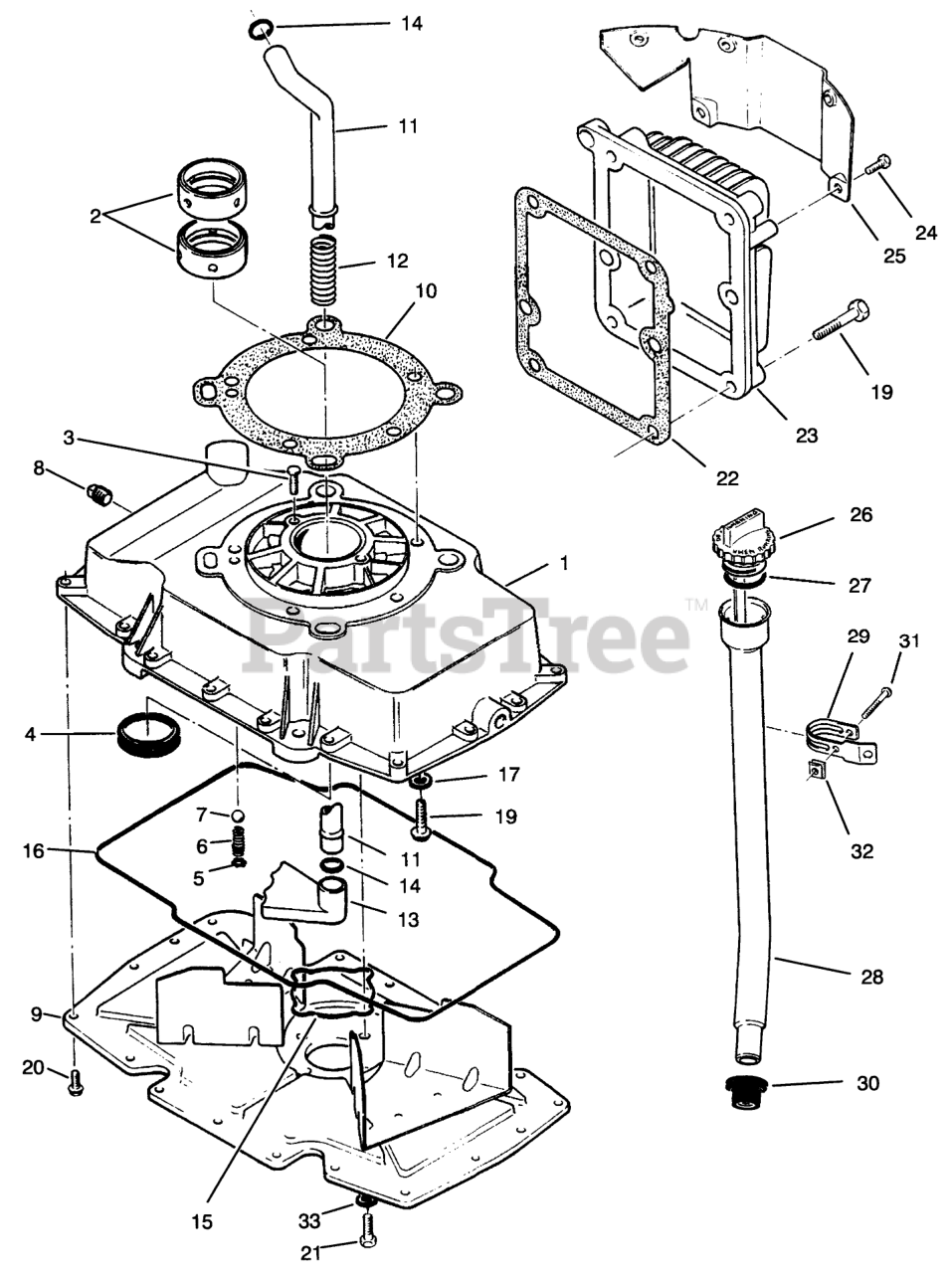

OIL BASE & FILL TUBE ASSEMBLY Parts Diagram

  • Title
1

Toro NN10867

Base-Oil (Incl. Ref. #2-7)

$1124.99

$

Usually ships in 3-6 days

0

2

Toro 57-8050

BEARING KIT (STANDARD SLEEVE)

$236.99

$

Usually ships in 3-6 days

0

Toro NN10010

Rear Crankshaft Brg-.002 under
(Superseded to 59-0020)

$

$

Not available

2

Toro 57-8060

BEARING KIT (.010)

$

$

Not available

Toro NN10012

Rear Crankshaft Brg-.020 under
(Superseded to 59-0030)

Note: Not illustrated

$

$

Not available

Toro NN10013

Rear Crankshaft Brg-.030 under
(Superseded to 59-0040)

Note: Not illustrated

$

$

Not available

3

Toro NN10334

Screw
(Superseded to 59-0730)

$

$

Not available

4

Toro NN10530

OIL-SEAL

$

$

Not available

5

Toro NN10539

RETAINING-RING

$

$

Not available

6

Toro 59-0280

SPRING

$

$

Not available

7

Toro NN10534

BALL-BEARING

$

$

Not available

8

Toro NN10682

Plug
(Superseded to 82-1130)

$4.99

$

Usually ships in 3-6 days

0

9

Toro NN10475

OIL-BASE COVER ZINC

$213.99

$

Usually ships in 3-6 days

0

10

Toro NN10474

OIL-BASE GASKET

$

$

Not available

11

Toro NN10482

OIL-PICKUP TUBE

$

$

Not available

12

Toro NN10483

OIL-PICKUP SPRING

$

$

Not available

13

Toro NN10485

OIL-PICKUP CUP

$

$

Not available

14

Toro NN10531

O-RING

$

$

Not available

15

Toro NN10532

OIL-SEAL

$

$

Not available

16

Toro NN10533

OIL-SEAL

$

$

Not available

17

Toro NN10540

Washer
(Superseded to 82-1300)

$

$

Not available

19

Toro NN10546

HEX-HEAD CAP SCREW

$

$

Not available

20

Toro 59-0980

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

21

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

22

Toro NN10468

Gasket

$

$

Not available

23

Toro NN10480

OIL-COOLER

$

$

Not available

24

Toro 59-0970

HEX HD CAPSCREW

$6.49

$

Usually ships in 3-6 days

0

25

Toro NN10498

OIL-COOLER BAFFLE

$

$

Not available

26

Toro NN10490

Indicator-Oil Level (Incl. Ref. #27)

$

$

Not available

27

Toro 57-9610

SEAL 0-RING

$6.99

$

In Stock, only 1 left!

0

28

Toro NN10491

OIL-FILL TUBE (ZINC)

$

$

Not available

29

Toro NN10492

SUPPORT-BRKT (ZINC)

$

$

Not available

30

Toro NN10325

Seal
(Superseded to 71-6170)

$13.99

$

In Stock, only 1 left!

0

31

Toro NN10407

Screw
(Superseded to 82-1560)

$

$

Not available

32

Toro NN10431

Nut
(Superseded to 82-1700)

$

$

Not available

33

Toro 59-0860

WASHER

$

$

Not available
