74041 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) FENDERS, FLOOR PAN & SEAT ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

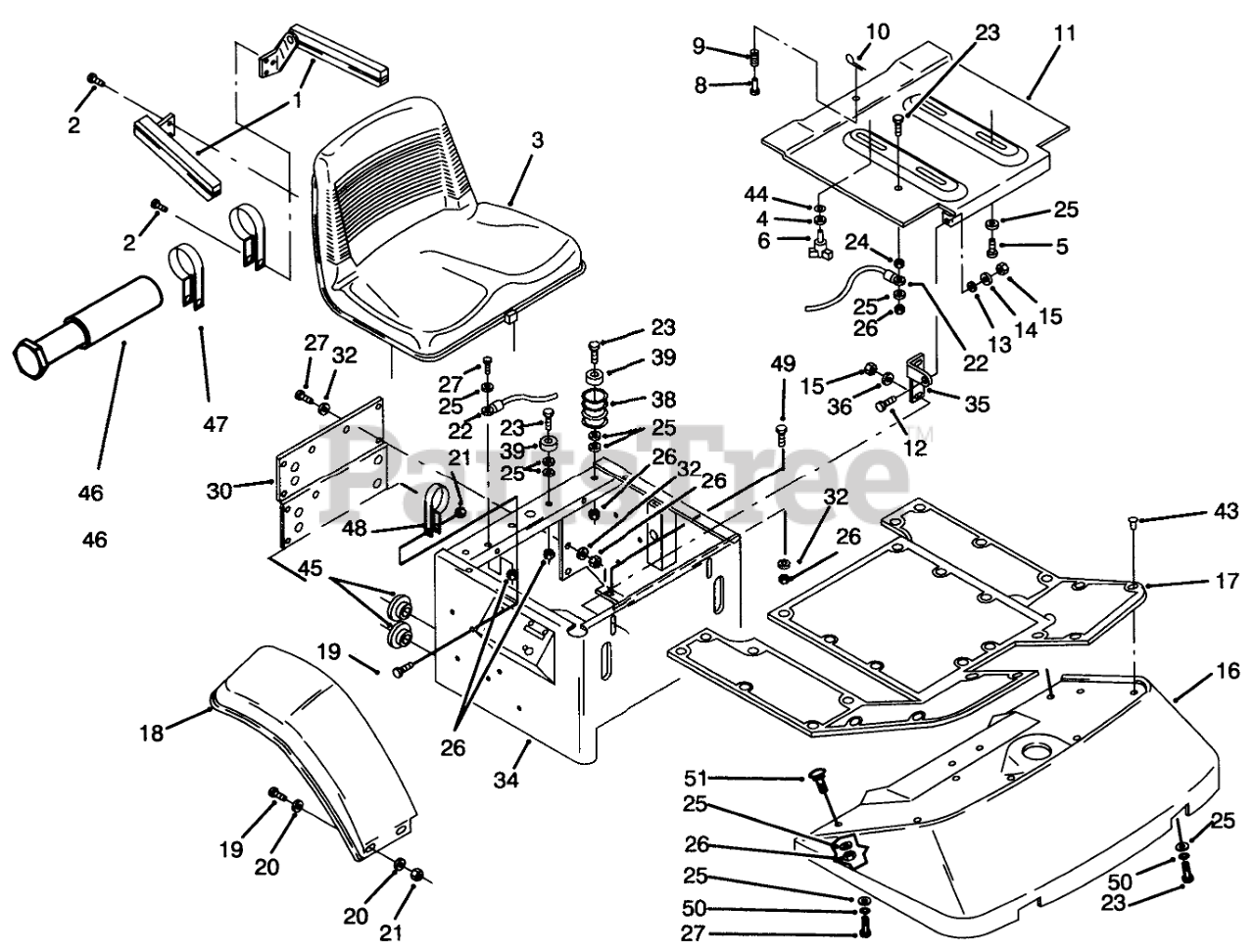

FENDERS, FLOOR PAN & SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 88-3230

KIT-ARMREST

$

$

Not available

2

Toro 92-0992

3/8-16 X 5/8 SCREW

$

$

Not available

3

Toro 88-3210

SEAT V-510

$933.99

$

Usually ships in 3-6 days

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 108686

BOLT 5/16-18X5/8

$8.99

$

Usually ships in 3-6 days

0

6

Toro 116819

KNOB

$

$

Not available

8

Toro 106449

PIN

$6.99

$

Usually ships in 3-6 days

0

9

Toro 116195

SPRING-COMPRESSION

$

$

Not available

10

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

11

Toro 116504

PLATE SEAT PIVOT R

$

$

Not available

12

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

13

Toro 104525

SPACER
(Superseded to 93-3658)

$6.49

$

Usually ships in 3-6 days

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 118940

Floor Pan
(Superseded to 118940-01)

$

$

Not available

17

Toro 116455

Black Mat

$

$

Not available

18

Toro 116064

Fender RH
(Superseded to 116064-01)

$

$

Not available

Toro 116065

Fender LH
(Superseded to 116065-01)

Note: Not illustrated

$199.99

$

Usually ships in 3-6 days

0

19

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 115850

Cable

$

$

Not available

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

25

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 79-2290

Cover

$

$

Currently unavailable

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 79-5960

SUPPORT-SEAT W A R

$690.99

$

Usually ships in 3-6 days

0

35

Toro 116572

Seat Pivot Bracket RH
(Superseded to 116572-01)

$

$

Not available

Toro 116573

Seat Pivot Bracket LH
(Superseded to 116573-01)

Note: Not illustrated

$

$

Not available

36

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

38

Toro 114269

Spring
(Superseded to 114497)

$60.99

$

Usually ships in 3-6 days

0

Toro 114497

SPRING-SEAT NYLON

Note: Not illustrated

$60.99

$

Usually ships in 3-6 days

0

39

Toro 108889

BUMPER

$21.99

$

Usually ships in 3-6 days

0

43

Toro 116456

RIVET .25 PLASTIC

$2.49

$

Usually ships in 3-6 days

0

44

Toro 78-2740

LOCKWASHER INT EXT

$

$

Not available

45

Toro 938037

BUSHING-NYLON 1.500

$3.49

$

Usually ships in 3-6 days

0

46

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

47

Toro 2412-133

CLAMP-R

$8.99

$

Usually ships in 3-6 days

0

48

Toro 2412-104

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

49

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 14

0

50

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

51

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0
