74035 (4000) - Toro 60" Z Master Zero-Turn Mower (SN: 411435544 - 412599999) Engine, Clutch and Muffler Assembly Parts Diagram

60" Z Master Zero-Turn Mower

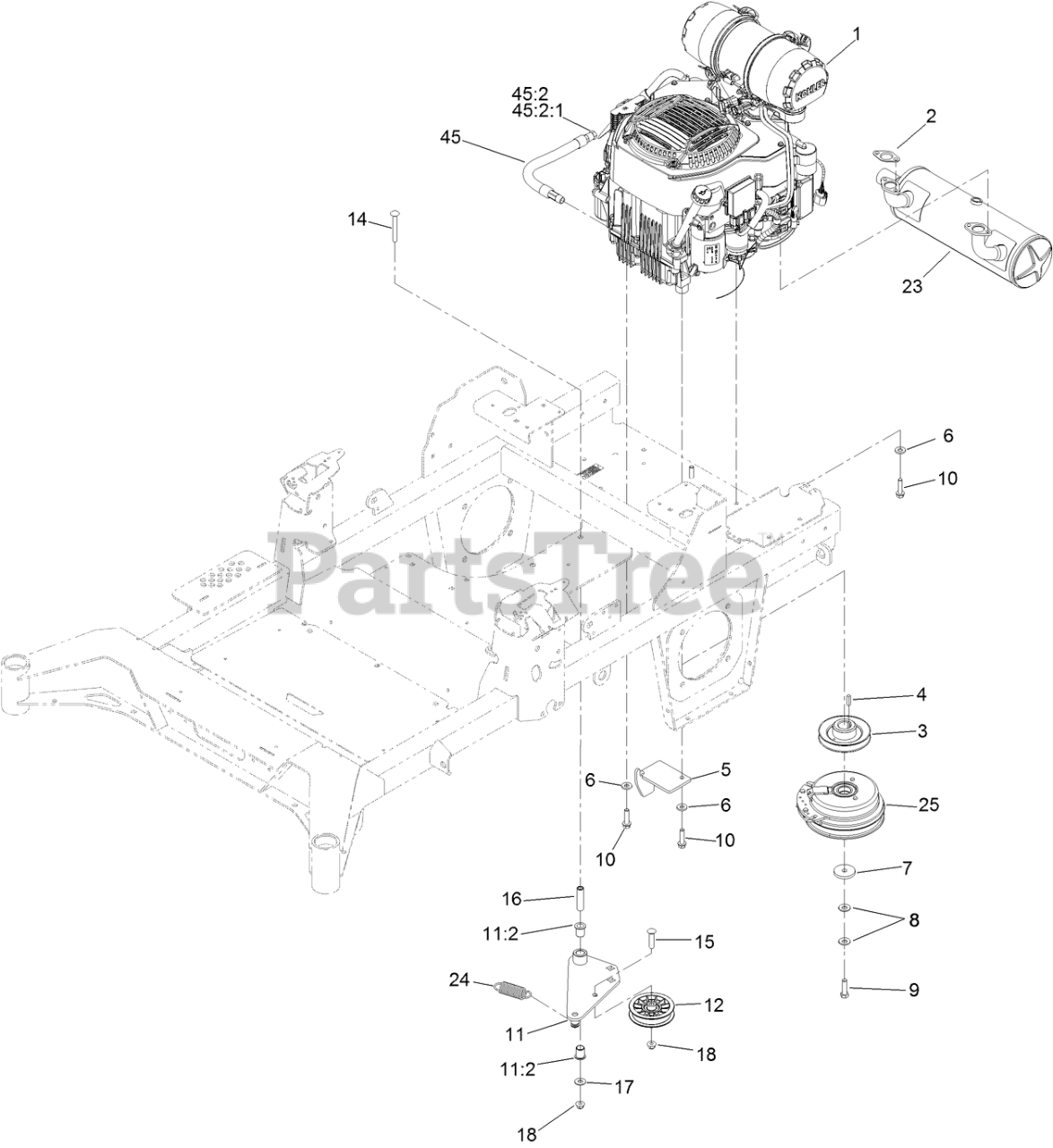

Engine, Clutch and Muffler Assembly Parts Diagram

  • Title

1

Toro 140-8001

ENGINE-KOHLER

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 110-6697

GASKET-EXHAUST

$

$

Not available

3

Toro 139-6702

SHEAVE, W/HUB

$29.99

$

Usually ships in 3-6 days

0

4

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

5

Toro 140-1190

ANCHOR-CLUTCH

$16.99

$

Usually ships in 3-6 days

0

6

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

7

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 6

0

8

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

9

Toro 109-9761

SCREW-HH, W/LOCTITE

$5.49

$

In Stock, Qty 15

0

10

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

11

Toro 144-2671

IDLER ARM ASM

$58.99

$

Usually ships in 3-6 days

0

11:2

Toro 138-2573

BUSHING-FLANGE

$2.99

$

In Stock, only 2 left!

0

12

Toro 116-2456

PULLEY-FLAT IDLER

$23.99

$

In Stock, Qty 20+

0

14

Toro 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

15

Toro 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

16

Toro 139-6690

BUSHING, IDLER PIVOT

$7.49

$

In Stock, only 1 left!

0

17

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 140-7995

MUFFLER-KOHLER EFI

$203.99

$

Usually ships in 3-6 days

0

24

Toro 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

25

Toro 116-1604

See Supercession: 116-1620
(Superseded to 116-1620)

$359.99

$

In Stock, Qty 9

0

45

Toro 116-5316

OIL DRAIN HOSE ASM

$54.99

$

In Stock, Qty 14

0

45:2

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, Qty 5

0

45:2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0
