74029 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 999999999) Idler Mount Assembly No. 126-3372 Parts Diagram

72" Z Master Zero-Turn Mower, Rear-Discharge Deck

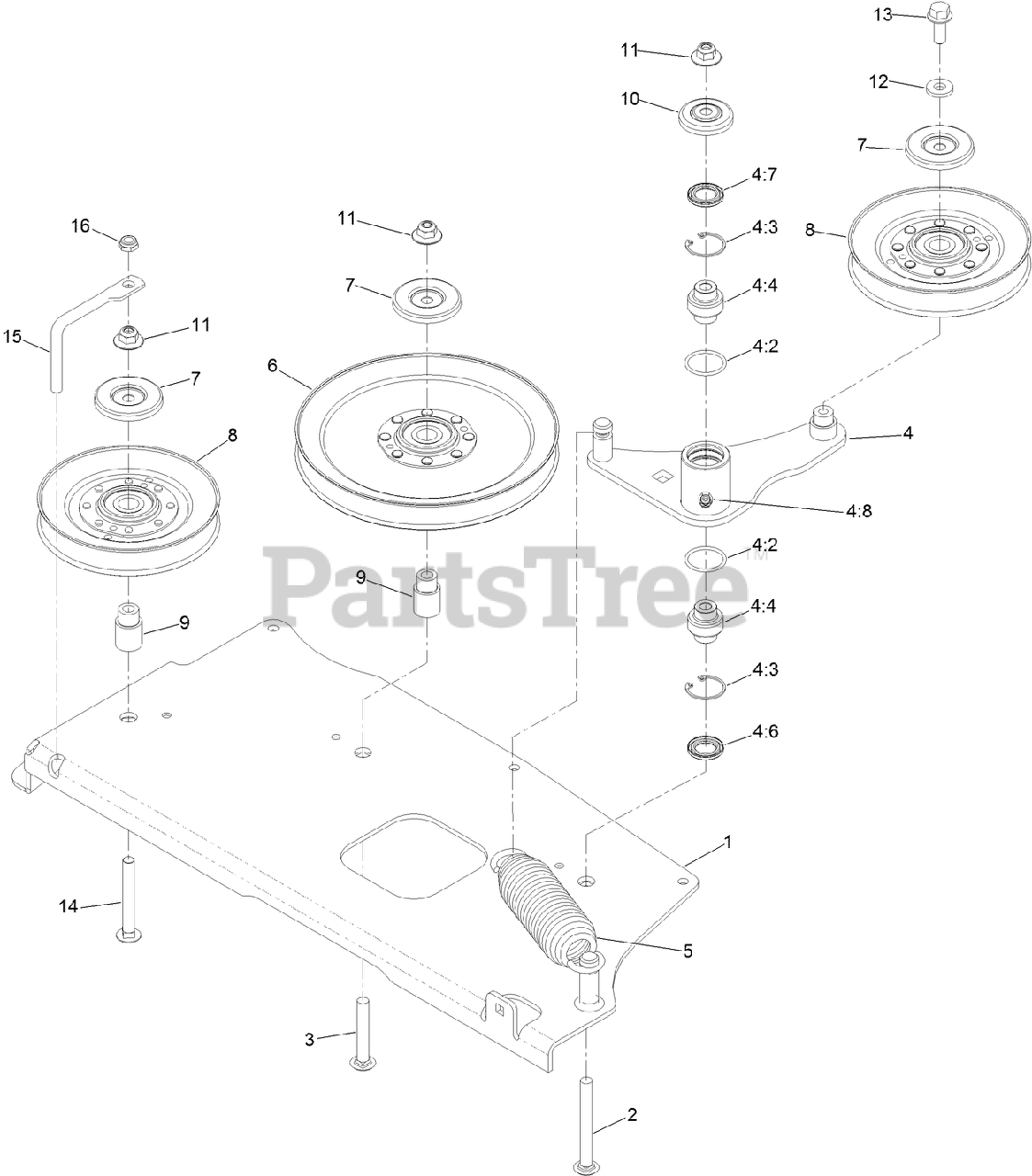

Idler Mount Assembly No. 126-3372 Parts Diagram

  • Title

1

Toro 126-3373-01

MOUNT-IDLER

$286.99

$

Usually ships in 3-6 days

0

2

Toro 116-1502

BOLT-SHOULDER, CARRIAGE

$8.49

$

In Stock, only 2 left!

0

3

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

4

Toro 126-2967

IDLER ARM ASM

$195.99

$

Usually ships in 3-6 days

0

4:2

Toro 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

4:3

Toro 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 19

0

4:4

Toro 103-3504

BEARING-SPHERICAL

$26.99

$

In Stock, Qty 20+

0

4:6

Toro 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, only 1 left!

0

4:7

Toro 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 7

0

4:8

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

Usually ships in 3-6 days

0

5

Toro 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

6

Toro 126-7460

IDLER-V

$120.99

$

Usually ships in 3-6 days

0

7

Toro 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

8

Toro 126-8766

IDLER V

$100.99

$

Usually ships in 3-6 days

0

9

Toro 126-3312

STANDOFF-IDLER

$18.99

$

Usually ships in 3-6 days

0

10

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 8

0

11

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

0

13

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

14

Toro 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

0

15

Toro 135-0362

GUIDE-BELT

$27.99

$

Usually ships in 3-6 days

0

16

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0
