74029 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 999999999) Deck Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Rear-Discharge Deck

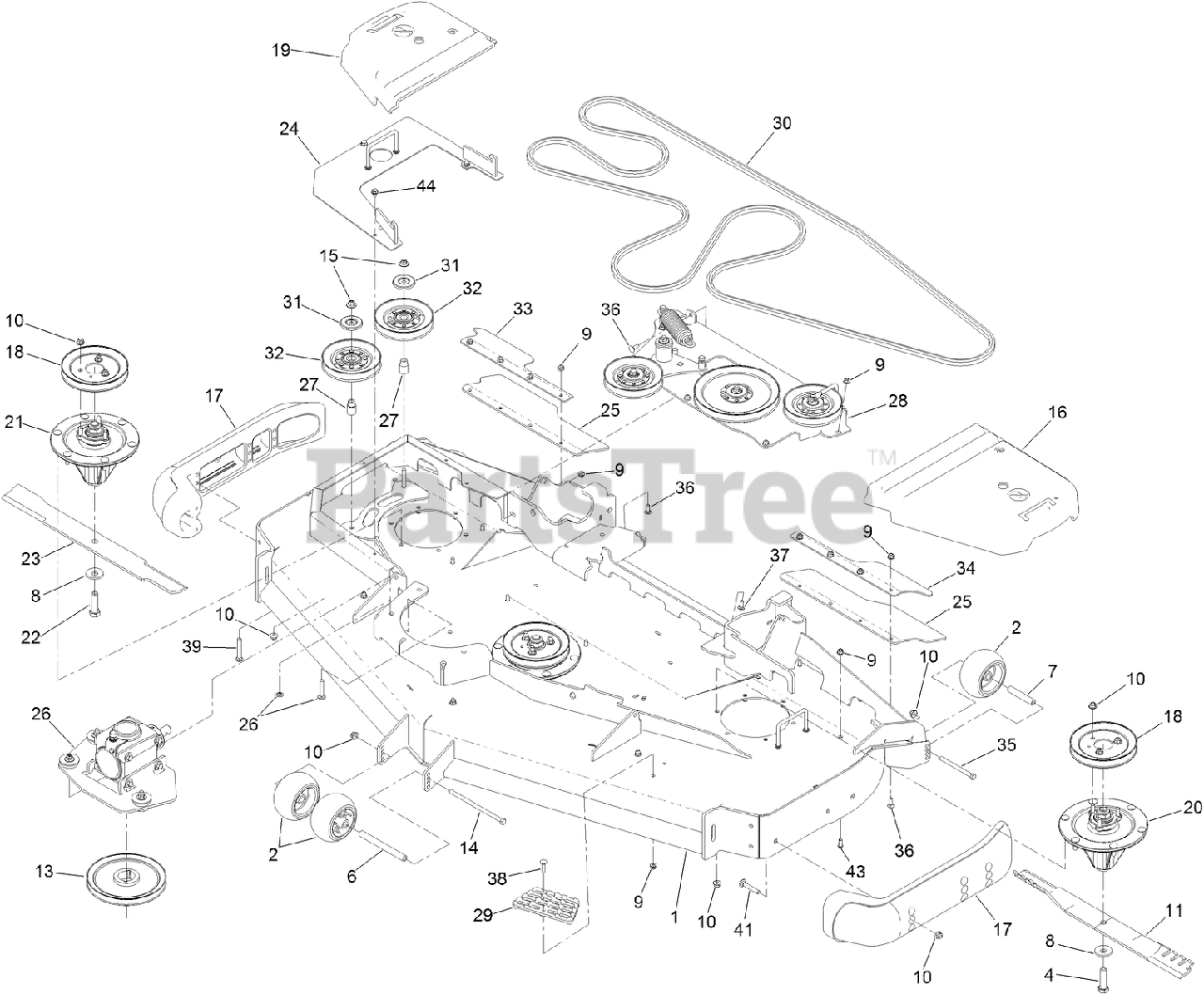

Deck Assembly Parts Diagram

  • Title

1

Toro 126-6819

DECK DECAL ASM

$

$

Currently unavailable

2

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

4

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

6

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

7

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

8

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 105-7719-03

BLADE-ATOMIC, 24.5IN

$52.99

$

In Stock, only 4 left!

0

13

Toro 107-4767

PULLEY

$252.99

$

Usually ships in 3-6 days

0

14

Toro 108-5388

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

15

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

17

Toro 112-1479

SKID-BUMPER, DECK

$101.99

$

Usually ships in 3-6 days

0

18

Toro 115-7450

PULLEY

$57.99

$

In Stock, only 1 left!

0

19

Toro 116-0094

COVER-BELT, RH

$86.99

$

In Stock, only 4 left!

0

20

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, only 2 left!

0

21

Toro 127-0570

LH SPINDLE ASM

$518.99

$

Usually ships in 3-6 days

0

22

Toro 125-9326

SCREW-BLADE, LH

$24.99

$

In Stock, only 4 left!

0

23

Toro 125-9327-01

BLADE-ROTARY, 24.5IN (LOW FLOW)

$37.99

$

In Stock, only 2 left!

0

24

Toro 125-9374-01

COVER-REVERSE DRIVE

$135.99

$

Usually ships in 3-6 days

0

25

Toro 135-0709

GUARD-TIRE

$25.99

$

Usually ships in 3-6 days

0

26

GEARBOX ASM

Note: Not serviced separately

$

$

Not available

27

Toro 126-3312

STANDOFF-IDLER

$17.99

$

Usually ships in 3-6 days

0

28

Toro 126-3372

IDLER MOUNT ASM

$692.99

$

Usually ships in 0 days

0

29

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

30

Toro 126-7628

BELT-BB

$257.99

$

In Stock, only 1 left!

0

31

Toro 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0

32

Toro 126-8766

IDLER V

$94.99

$

Usually ships in 3-6 days

0

33

Toro 135-0402-01

SUPPORT-FLAP, OUTER (RH)

$45.99

$

Usually ships in 3-6 days

0

34

Toro 135-0403-01

SUPPORT-FLAP, OUTER (LH)

$45.99

$

Usually ships in 3-6 days

0

35

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

36

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

37

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

38

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

39

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

41

Toro 323-17

SCREW-HH

$5.99

$

In Stock, only 2 left!

0

43

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

44

Toro 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0
