74021 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) TRANSMISSION & DRIVE SYSTEM ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

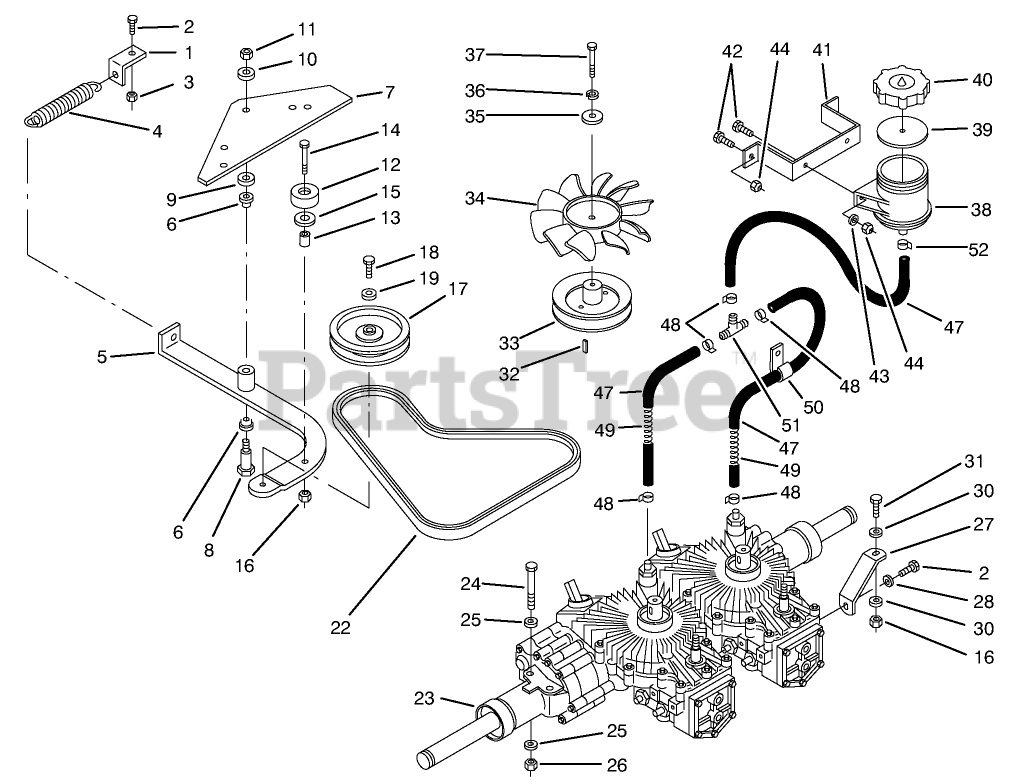

TRANSMISSION & DRIVE SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 116505

BRACKET-SPRING

$

$

Not available

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 116506

SPRING-EXTENSION

$28.99

$

Usually ships in 3-6 days

0

5

Toro 116721

Arm-Idler
(Superseded to 116721-03)

$

$

Not available

6

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

7

Toro 116718

Stiffener
(Superseded to 116718-01)

$

$

Not available

8

Toro 113165

BOLT-SHOULDER

$25.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

10

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

11

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

12

Toro 108889

BUMPER

$24.99

$

Usually ships in 3-6 days

0

13

Toro 116728

SPACER

$

$

Not available

14

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 116531

WASHER

$

$

Not available

17

Toro 116439

PULLEY IDLER

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 116527

V-BELT

$43.99

$

Usually ships in 3-6 days

0

23

Toro 79-2350

TRANSAXLE-781

$

$

Not available

24

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

27

Toro 115274

BRKT-HYDRO SIDE

$

$

Not available

28

Toro 9202674

Washer-Special

$

$

Currently unavailable

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 937086

KEY WOODRUFF

$

$

Not available

33

Toro 78-2760

PULLEY

$

$

Not available

34

Toro 115271

FAN-7"

$36.99

$

In Stock, Qty 5

0

35

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

36

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 79-3500

Reservoir w/Gasket (Incl. Ref.# 39-40)

$

$

Not available

39

Toro 114563

COVER GASKET

$20.99

$

In Stock, only 1 left!

0

40

Toro 79-1080

COVER

$

$

Not available

41

Toro 79-2330

Bracket
(Superseded to 79-2330-01)

$

$

Not available

42

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

47

Toro 79-2360

HOSE-7"

$9.99

$

Usually ships in 3-6 days

0

48

Toro 79-2380

CLAMP .875

$

$

Not available

49

Toro 79-7500

COMPRESSION SPRING

$21.99

$

Usually ships in 3-6 days

0

50

Toro 79-2110

CLAMP

$

$

Not available

51

Toro 79-2410

TEE-5/8 PLASTIC

$

$

Not available

52

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0
