74021 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) PTO ELECTRIC CLUTCH & DRIVE ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

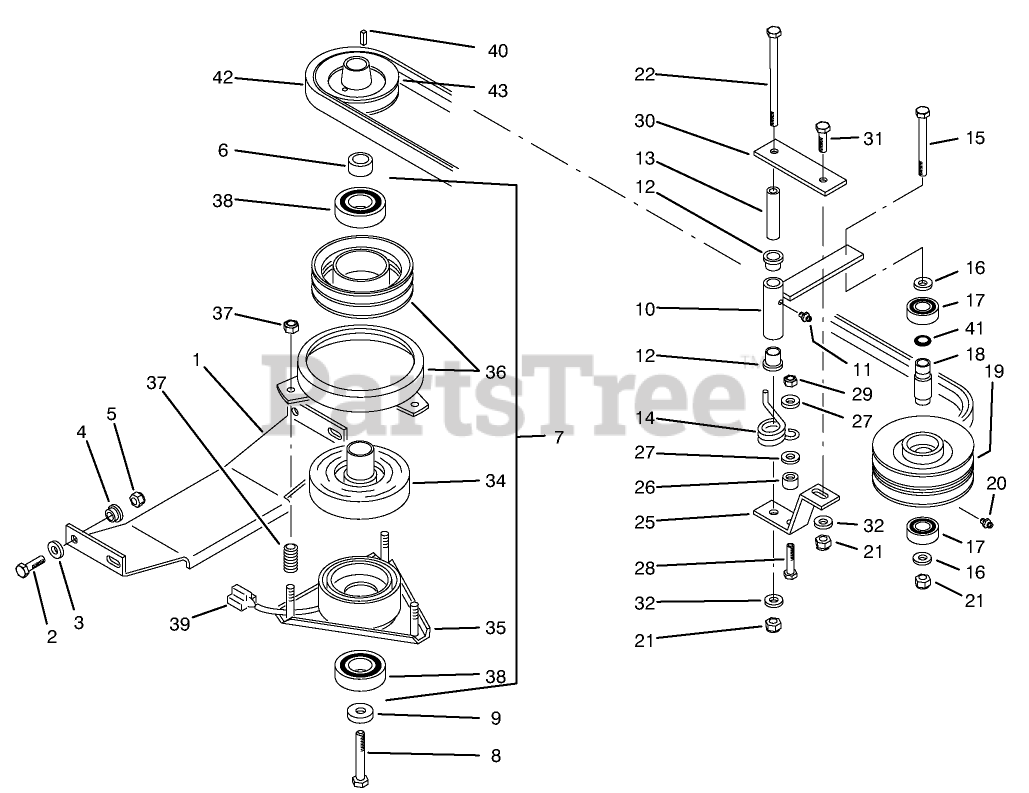

PTO ELECTRIC CLUTCH & DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 116422

BRACKET CLUTCH ST R

$129.99

$

Usually ships in 3-6 days

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 115335

SPACER

$

$

Not available

7

Toro 116277

Electric Clutch Assembly (Incl. Ref. # 34-39)

$

$

Not available

8

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

9

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

10

Toro 115437

Arm-Idler
(Superseded to 116181)

$

$

Not available

11

Toro 111420

Fitting-Grease
(Superseded to 302-11)

$1.99

$

In Stock, only 2 left!

0

12

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

13

Toro 109950

SPACER

$23.99

$

Usually ships in 3-6 days

0

14

Toro 108177

SPRING-TORSION

$19.99

$

Usually ships in 3-6 days

0

15

Toro 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

16

Toro 9202414

WASHER-SPACER

$5.49

$

Usually ships in 3-6 days

0

17

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

18

Toro 115682

SPACER-PTO IDLER

$94.99

$

Usually ships in 3-6 days

0

19

Toro 116184

PULLEY 2- GROOVE

$422.99

$

Usually ships in 3-6 days

0

20

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

22

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

25

Toro 115440

Bracket-Idler
(Superseded to 115440-01)

$

$

Not available

26

Toro 100304

Spacer

$6.99

$

Usually ships in 3-6 days

0

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 116253

Plate
(Superseded to 116253-01)

$

$

Not available

31

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

34

Toro 117194

ROTOR ASSEMBLY

$

$

Not available

35

Toro 117193

Field Assembly (Incl. Ref. #38 & 39)

$

$

Not available

36

Toro 117195

Armature Assembly (Incl. Ref. #38)

$

$

Not available

Toro 93-9817

Rotor & Armature Assembly (Incl. Ref. #34 & 36)

$

$

Currently unavailable

37

Toro 113823

ACCESS SPRING & NUT

$

$

Not available

38

Toro 114064

BEARING-ELEC CLUTCH

$78.99

$

In Stock, only 2 left!

0

39

Toro 110459

CONNECTOR BODY B

$1.99

$

In Stock, only 2 left!

0

40

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

41

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0

42

Toro 116183

V-BELT

$60.99

$

Usually ships in 3-6 days

0

43

Toro 119270

PULLEY

$

$

Not available
