74021 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) PARKING BRAKE ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

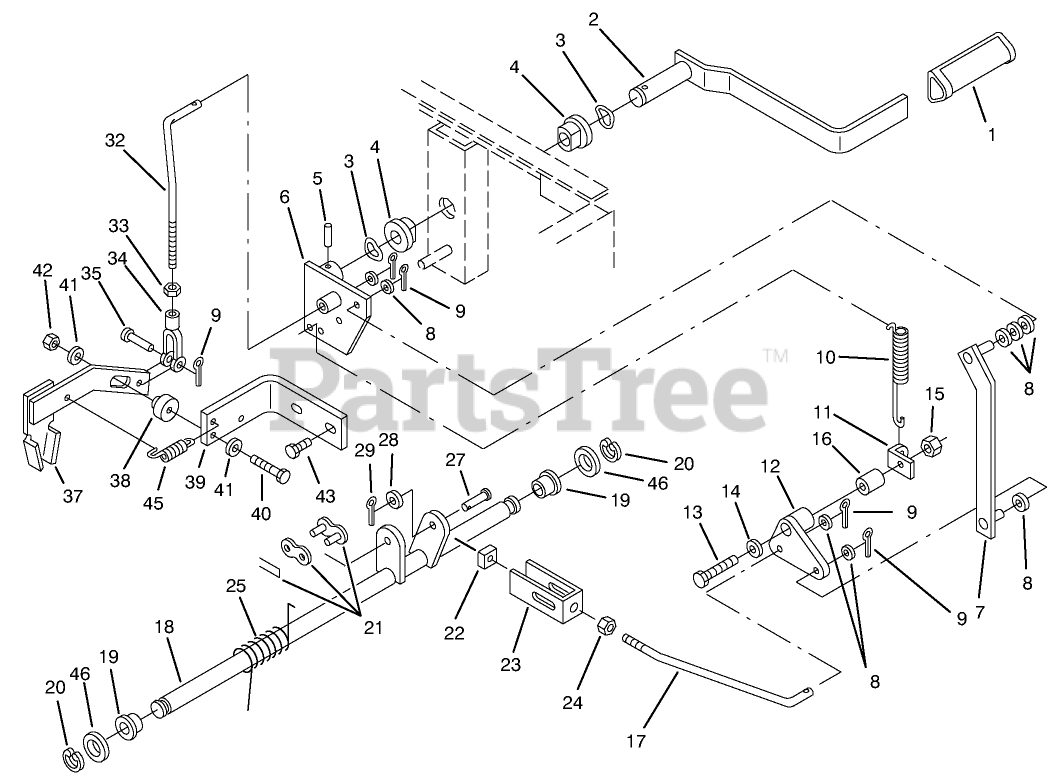

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro 116393

GRIP-PARKING BRAKE

$73.99

$

Usually ships in 3-6 days

0

2

Toro 115725

Brake Lever
(Superseded to 115725-01)

$56.99

$

Usually ships in 3-6 days

0

3

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

4

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 20+

0

5

Toro 32121-93

PIN-SPIRAL

$

$

Not available

6

Toro 116687

Arm
(Superseded to 116687-03)

$

$

Not available

7

Toro 78-0390

ASSY-BRAKE BAR UP

$

$

Not available

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

10

Toro 110769

SPRING-EXTENSION

$14.99

$

In Stock, only 4 left!

0

11

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

12

Toro 115701

WLMNT-BRAKE PIVOT

$

$

Not available

13

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

16

Toro 102025

SPACER

$

$

Not available

17

$

$

Not available

18

Toro 79-2340

Shaft-Brake
(Superseded to 79-2340-03)

$109.99

$

Usually ships in 3-6 days

0

19

Toro 106950

BUSHING

$15.99

$

Usually ships in 3-6 days

0

20

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

21

Toro 2710-33

CONNECTING LINK

$

$

Not available

22

Toro 9151834

NUT 5/16-18 SQ
(Superseded to 99-3565)

$0.99

$

Usually ships in 3-6 days

0

23

Toro 79-2320

YOKE-ADJUSTER

$18.99

$

Usually ships in 3-6 days

0

24

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

25

Toro 79-1780

SPRING-TORSION

$

$

Not available

27

$

$

Not available

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

32

Toro 116476

ROD-NEUTRAL LOCK

$

$

Not available

33

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

34

Toro 282-2

YOKE

$31.99

$

Usually ships in 3-6 days

0

35

$

$

Currently unavailable

37

Toro 116267

Lock-Neutral
(Superseded to 116267-01)

$

$

Not available

38

Toro 116264

SPACER

$

$

Not available

39

Toro 116258

Bracket-Support
(Superseded to 116258-01)

$

$

Not available

40

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

41

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

43

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

45

Toro 116792

SPRING-EXTENSION

$

$

Not available

46

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0
