74021 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) FENDERS & FLOOR PAN ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

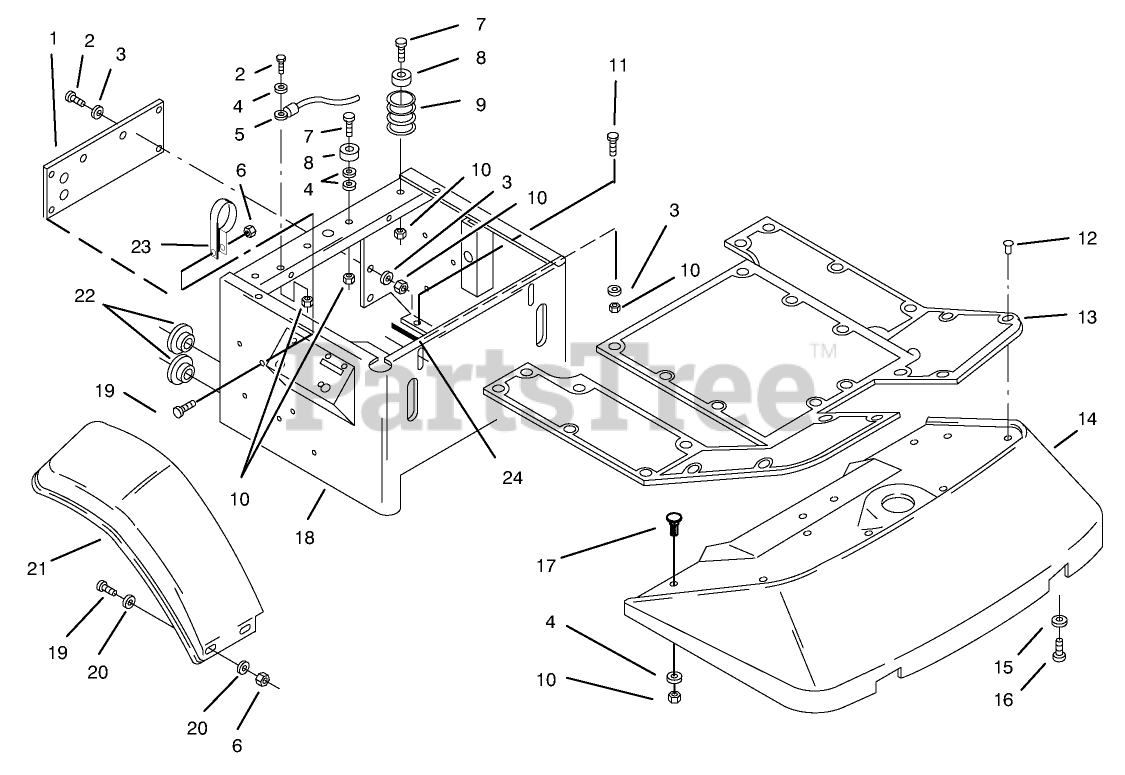

FENDERS & FLOOR PAN ASSEMBLY Parts Diagram

  • Title

1

Toro 79-2290

Cover

$

$

Currently unavailable

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Cable-Seat (Ref.)

$

$

Not available

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 108889

BUMPER

$24.99

$

Usually ships in 3-6 days

0

9

Toro 114496

SPRING

$

$

Not available

Toro 114497

SPRING-SEAT NYLON

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3234-5

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

12

Toro 116456

RIVET .25 PLASTIC

$2.99

$

Usually ships in 3-6 days

0

13

Toro 116455

Black Mat

$

$

Not available

14

Toro 118940

Floor Pan
(Superseded to 118940-01)

$

$

Not available

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

17

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 79-5960

SUPPORT-SEAT W A R

$783.99

$

Usually ships in 3-6 days

0

19

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 116064

Fender RH
(Superseded to 116064-01)

$

$

Not available

Toro 116065

Fender LH
(Superseded to 116065-01)

Note: Not illustrated

$226.99

$

Usually ships in 3-6 days

0

22

Toro 938037

BUSHING-NYLON 1.500

$3.99

$

Usually ships in 3-6 days

0

23

Toro 2412-104

CLAMP-R

$7.49

$

Usually ships in 3-6 days

0

24

Toro 115200

EDGE TRIM

$

$

Not available
