74021 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) COVERS, FUEL PUMP, COIL, REGULATOR & GOVERNOR LINKAGE ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

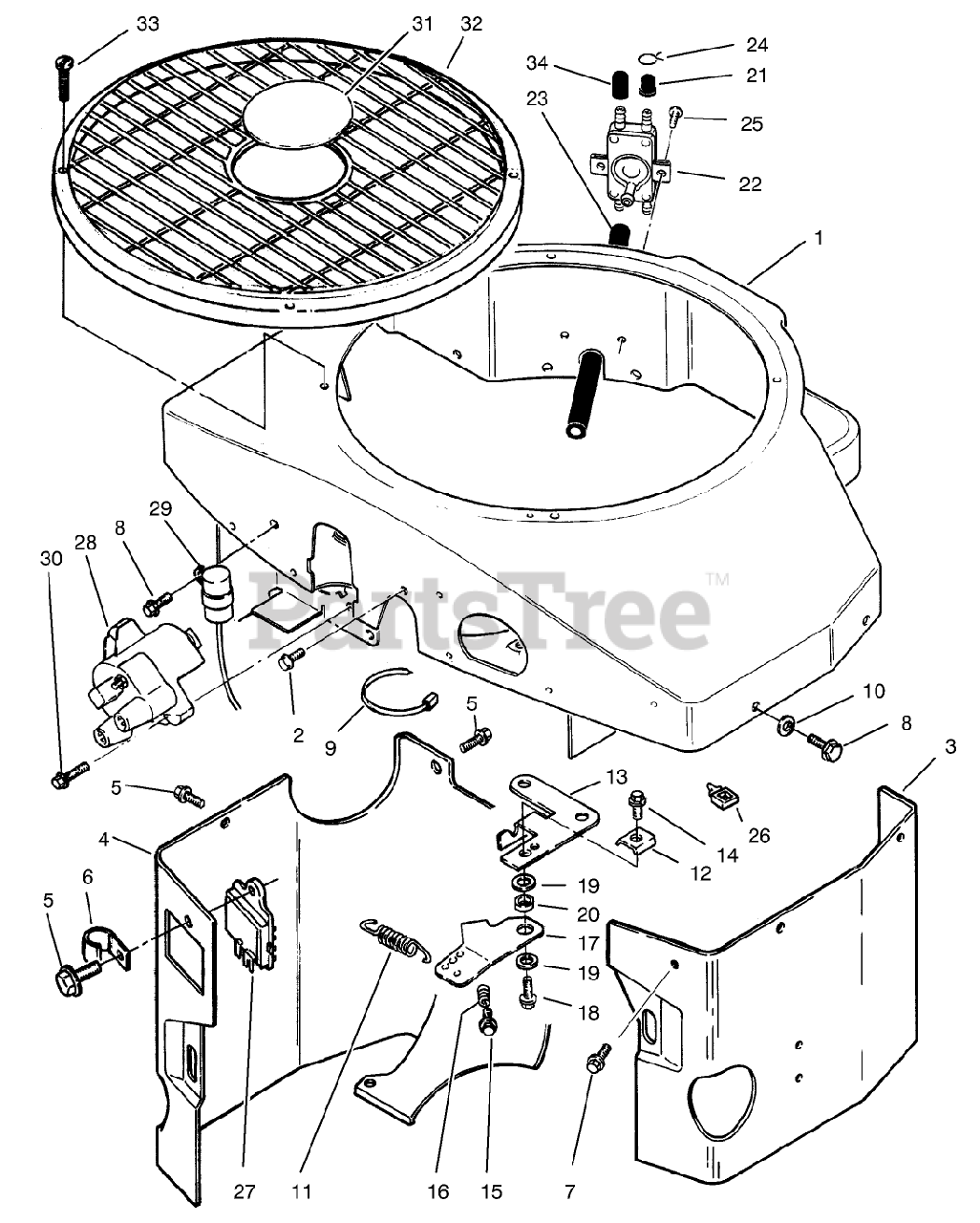

COVERS, FUEL PUMP, COIL, REGULATOR & GOVERNOR LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro NN10862

HOUSING

$

$

Not available

2

Toro 59-0970

HEX HD CAPSCREW

$

$

Not available

3

Toro 92-0957

LH AIR CYLINDER HSG

$178.99

$

Usually ships in 3-6 days

0

4

Toro 92-0958

RH AIR CYLINDER HSG

$

$

Not available

5

Toro 59-1080

SCREW-HWH

$

$

Not available

6

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

7

Toro NN10417

Bolt
(Superseded to 82-1600)

$

$

Not available

8

Toro 59-0980

SCREW-HH

$

$

Not available

9

Toro NN10863

Bolt
(Superseded to 82-1020)

$

$

Not available

10

Toro 59-0820

WASHER-FLAT

$

$

Not available

11

Toro 57-9100

SPRING

$

$

Not available

12

Toro 57-9190

CLIP

$

$

Not available

13

Toro NN10898

Bracket
(Superseded to 57-9150)

$

$

Not available

14

Toro NN10784

Bolt
(Superseded to 72-3900)

$

$

Not available

15

Toro 59-1030

SCREW-TAP

$

$

Not available

16

Toro 59-0430

SPRING

$

$

Not available

17

Toro 57-9140

ARM

$

$

Not available

18

Toro 59-1010

SCREW-HWH

$

$

Not available

19

Toro 59-0830

WASHER-FLAT

$

$

Not available

20

Toro 57-9120

BUSHING

$

$

Not available

21

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

22

Toro NN10505

FUEL-PUMP

$

$

Not available

23

Toro NN10302

Hose
(Superseded to 71-6100)

$12.99

$

Usually ships in 3-6 days

0

24

Toro 57-9550

CLAMP

$

$

Not available

25

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available

26

Toro NN10522

Clip
(Superseded to 71-6060)

$

$

Not available

27

Toro NN10794

Regulator
(Superseded to 117-2742)

$288.99

$

In Stock, only 2 left!

0

28

Toro NN10245

Coil-Ignition
(Superseded to 71-6000)

$

$

Not available

29

Toro NN10276

Condenser
(Superseded to 59-1180)

$45.99

$

In Stock, only 1 left!

0

30

Toro NN10408

Bolt
(Superseded to 71-6460)

$

$

Not available

31

Toro NN10340

Plug
(Superseded to 82-1190)

$

$

Not available

32

Toro NN10551

Guard
(Superseded to 82-0620)

$

$

Not available

33

Toro NN10864

Screw
(Superseded to 82-1590)

$

$

Not available

34

Toro 112841

CAP

$

$

Not available
