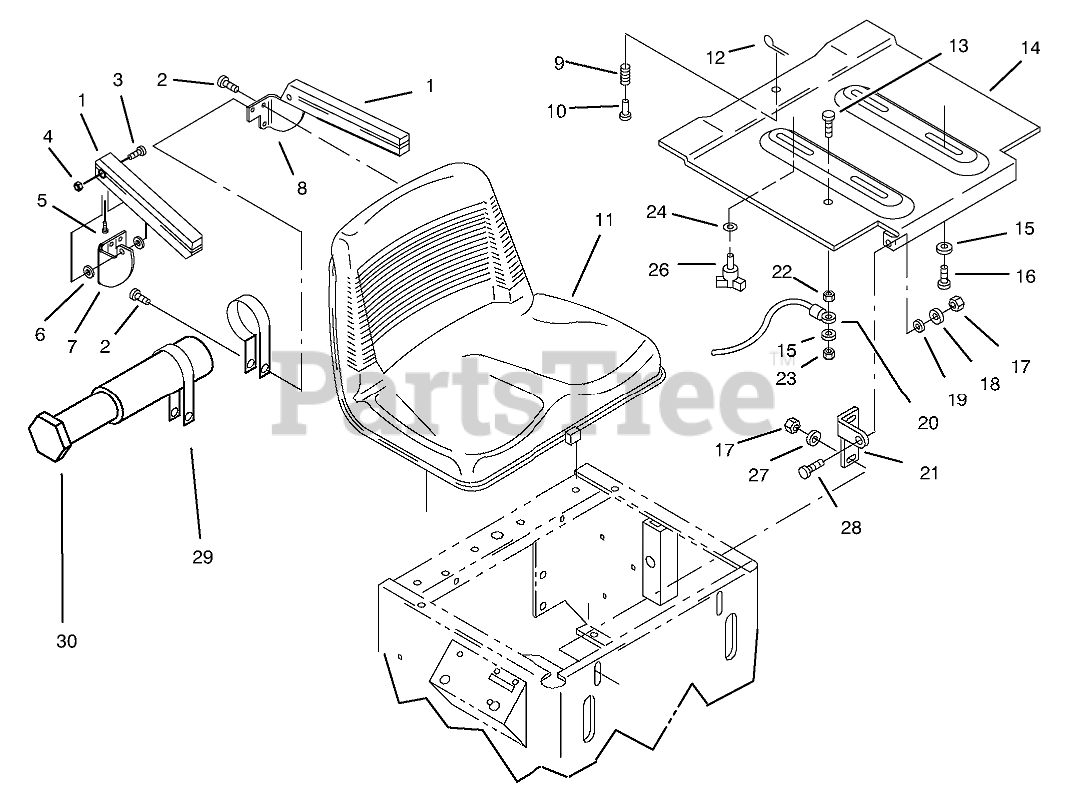

74021 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 059000001 - 059999999) (1995) Seat Assembly Parts Diagram

Zero-Turn Mower, Drive Unit Only

Seat Assembly Parts Diagram

  • Title

1

Toro 92-0988

DISCONTINUED

$

$

Not available

2

Toro 92-0992

3/8-16 X 5/8 SCREW

$

$

Not available

3

Toro 92-0989

3/8-16X1-1/2 SCREW

$

$

Not available

4

Toro 92-0991

3/8-16 ACORN LOCKNUT

$

$

Not available

5

Toro 92-0990

3/8-16 X 3/4 SCREW

$

$

Not available

6

Toro 92-0993

NYLON SPACER

$

$

Not available

7

Toro 92-0987

RH ARM BRACKET

$146.99

$

Usually ships in 3-6 days

0

8

Toro 92-0986

LH ARM BRACKET

$

$

Not available

9

Toro 116195

SPRING-COMPRESSION

$

$

Not available

10

Toro 106449

PIN

$6.99

$

Usually ships in 3-6 days

0

11

Toro 88-3220

DISCONTINUED
(Superseded to 98-1625)

$

$

Not available

Toro 88-3210

SEAT V-510

Note: Not illustrated

$933.99

$

Usually ships in 3-6 days

0

12

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 116504

DISCONTINUED

$

$

Not available

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 108686

BOLT 5/16-18X5/8

$8.99

$

Usually ships in 3-6 days

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 104525

See Supercession: 93-3658
(Superseded to 93-3658)

$6.49

$

Usually ships in 3-6 days

0

20

Toro 115850

DISCONTINUED

$

$

Not available

21

Toro 116572

See Supercession: 116572-01
(Superseded to 116572-01)

$

$

Not available

Toro 116573

See Supercession: 116573-01
(Superseded to 116573-01)

Note: Not illustrated

$

$

Not available

22

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

24

Toro 78-2740

LOCKWASHER INT EXT

$

$

Not available

26

Toro 116819

KNOB

$

$

Not available

27

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

29

Toro 2412-133

CLAMP-R

$8.99

$

Usually ships in 3-6 days

0

30

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0
