74021 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 059000001 - 059999999) (1995) Frame Front Wheel Fork Assembly Parts Diagram

Zero-Turn Mower, Drive Unit Only

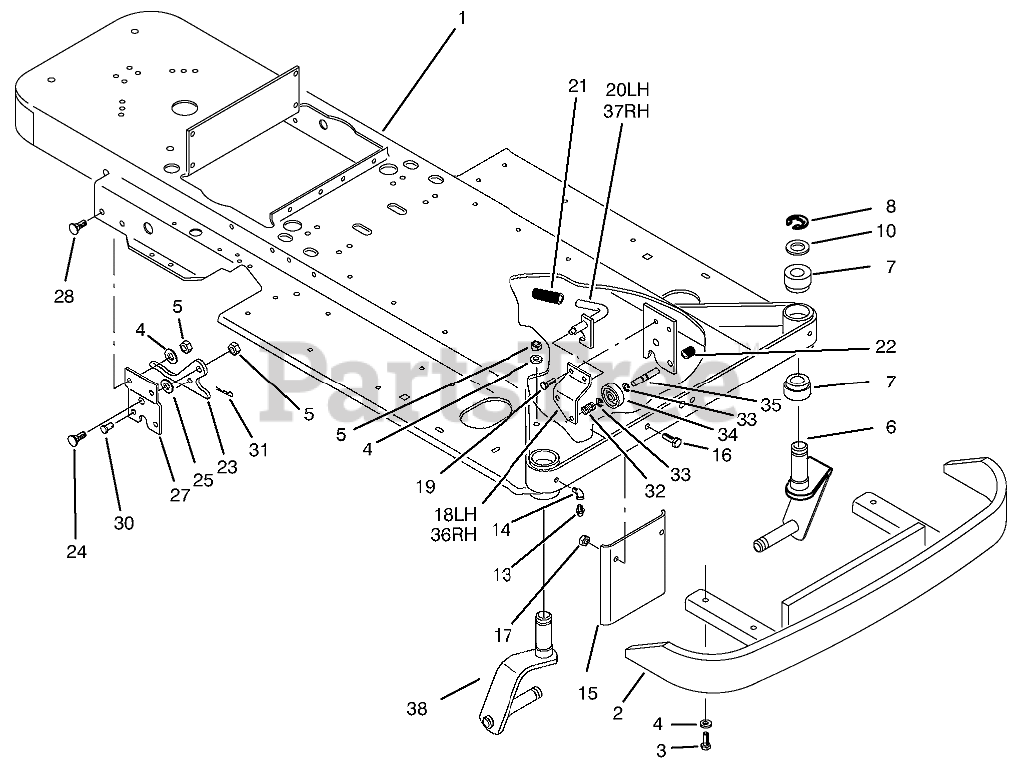

Frame Front Wheel Fork Assembly Parts Diagram

  • Title

1

Toro 92-1758

See Supercession: 92-1758-01
(Superseded to 92-1758-01)

$

$

Not available

2

Toro 117455

See Supercession: 117455-03
(Superseded to 117455-03)

$1227.99

$

Usually ships in 3-6 days

0

3

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 79-5990

See Supercession: 79-5990-01
(Superseded to 79-5990-01)

$

$

Not available

7

Toro 92-1714

BUSHING PIVOT

$33.99

$

Usually ships in 3-6 days

0

8

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 16

0

10

Toro 920251

WASHER

$3.49

$

In Stock, only 2 left!

0

13

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

14

Toro 2811-7

ELBOW

$42.99

$

Usually ships in 3-6 days

0

15

Toro 121290

See Supercession: 121290-01
(Superseded to 121290-01)

$

$

Not available

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 116331

See Supercession: 116331-01
(Superseded to 116331-01)

$18.99

$

Usually ships in 3-6 days

0

19

Toro 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, only 3 left!

0

20

Toro 116245

See Supercession: 116245-01
(Superseded to 116245-01)

$

$

Not available

21

Toro 9038

GRIP

$7.49

$

In Stock, only 2 left!

0

22

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

23

Toro 104657

PLATE-LATCHING

$44.99

$

Usually ships in 3-6 days

0

24

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 115123

DISCONTINUED

$

$

Not available

27

Toro 79-5970

See Supercession: 79-5970-01
(Superseded to 79-5970-01)

$

$

Not available

28

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

30

Toro 932120

See Supercession: 9321204
(Superseded to 9321204)

$5.49

$

Usually ships in 3-6 days

0

31

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

32

Toro 8616

SPRING

$4.49

$

Usually ships in 3-6 days

0

33

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

34

Toro 101017

LOCK

$32.99

$

Usually ships in 3-6 days

0

35

Toro 116244

ROD-LOCK

$

$

Not available

36

Toro 116330

See Supercession: 116330-01
(Superseded to 116330-01)

$

$

Not available

37

Toro 116246

See Supercession: 116246-01
(Superseded to 116246-01)

$

$

Not available

38

Toro 79-6000

See Supercession: 79-6000-01
(Superseded to 79-6000-01)

$363.99

$

Usually ships in 3-6 days

0
