74021 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 049000001 - 049999999) (1994) Transmission Assembly Eaton Model 781-016 Parts Diagram

Zero-Turn Mower, Drive Unit Only

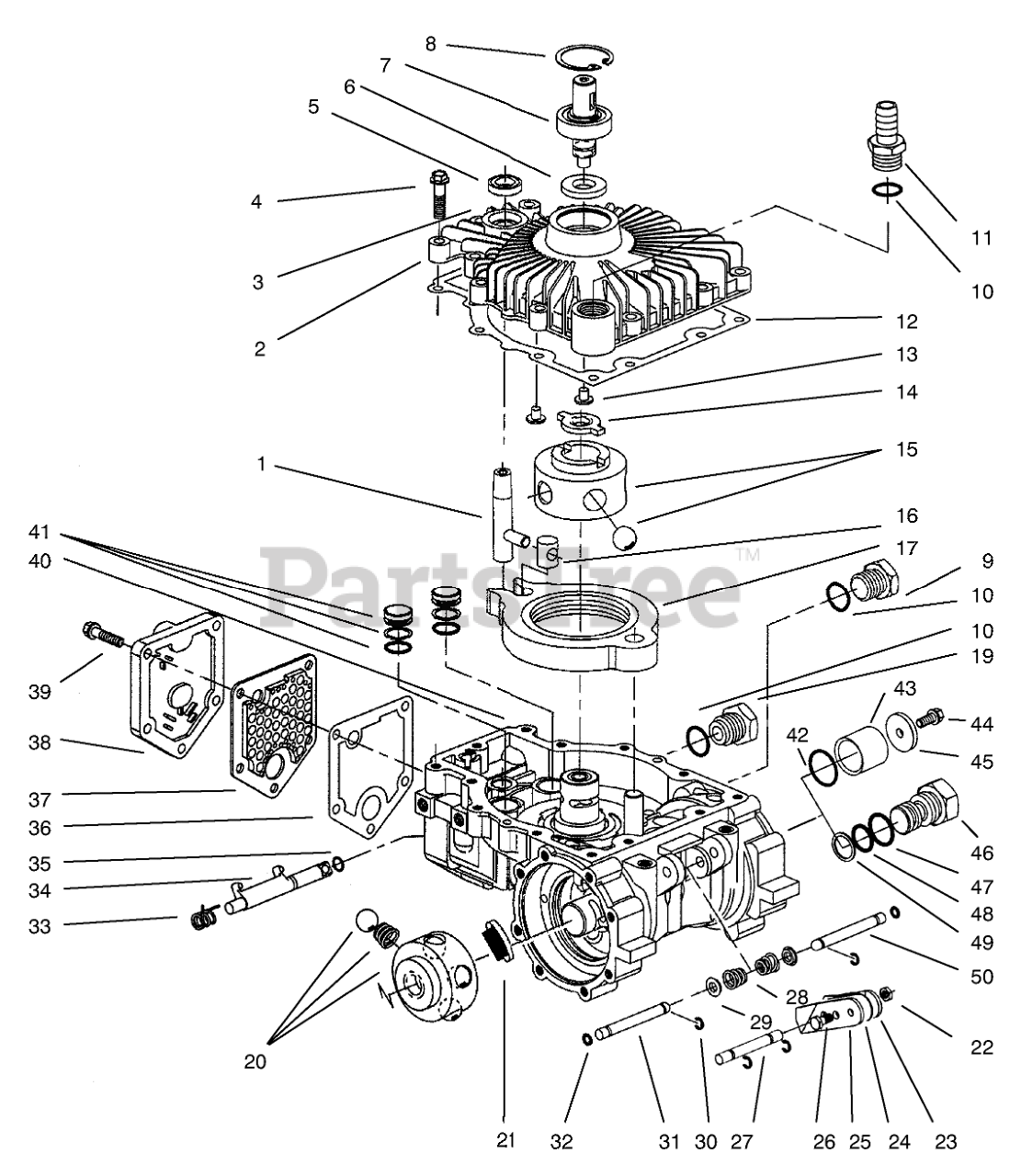

Transmission Assembly Eaton Model 781-016 Parts Diagram

  • Title
1

Toro 88-2930

CONTROL SHAFT

$

$

Not available

2

Toro 88-2210

COVER ASM

$1105.99

$

Usually ships in 3-6 days

0

3

Toro 88-2220

COVER

$1211.99

$

Usually ships in 3-6 days

0

4

Toro 88-2230

DISCONTINUED

$

$

Not available

5

Toro 112605

SEAL-OIL

$18.99

$

Usually ships in 3-6 days

0

6

Toro 112604

See Supercession: 56-2820
(Superseded to 56-2820)

$40.99

$

In Stock, only 2 left!

0

7

Toro 88-2240

DISCONTINUED

$

$

Not available

8

Toro 112600

See Supercession: 56-3290
(Superseded to 56-3290)

$

$

Not available

9

Toro 88-2250

DISCONTINUED

$

$

Not available

10

Toro 88-2260

O-RING

$

$

Not available

11

Toro 88-2270

See Supercession: 88-2850
(Superseded to 88-2850)

$77.99

$

Usually ships in 3-6 days

0

12

Toro 88-2280

DISCONTINUED

$

$

Not available

13

Toro 112595

See Supercession: 56-2880
(Superseded to 56-2880)

$

$

Not available

14

Toro 88-2290

DISCONTINUED

$

$

Not available

15

Toro 88-2300

DISCONTINUED

$

$

Not available

16

Toro 88-2310

DISCONTINUED

$

$

Not available

17

Toro 88-2320

CAM RING ASM

$

$

Not available

19

Toro 88-2340

ROTOR BALL ASM

$919.99

$

Usually ships in 3-6 days

0

20

Toro 88-2340

ROTOR BALL ASM

$919.99

$

Usually ships in 3-6 days

0

21

Toro 88-2350

DISCONTINUED

$

$

Not available

22

Toro 88-2360

DISCONTINUED

$

$

Not available

23

Toro 88-2370

DISCONTINUED

$

$

Not available

24

$

$

Not available

Toro 88-1340

Shim-.020

Note: Not illustrated

$

$

Currently unavailable

25

Toro 88-2390

LH BRAKE LEVER

$

$

Not available

26

Toro 88-2400

HEX HEAD SCREW

$

$

Not available

27

Toro 88-2410

BRAKE SHAFT

$72.99

$

Usually ships in 3-6 days

0

28

Toro 88-2420

DISCONTINUED

$

$

Not available

29

Toro 88-2430

DISCONTINUED

$

$

Not available

30

Toro 88-2440

DISCONTINUED

$

$

Not available

31

Toro 88-2450

PUSH ROD

$64.99

$

Usually ships in 3-6 days

0

32

Toro 88-2460

QUAD SEAL

$

$

Not available

33

Toro 88-2470

DISCONTINUED

$

$

Not available

34

Toro 88-2480

DUMP VALVE BRACKET

$

$

Not available

35

Toro 88-2490

DISCONTINUED

$

$

Not available

36

Toro 88-2500

DISCONTINUED

$

$

Not available

37

Toro 88-2510

DISCONTINUED

$

$

Not available

38

Toro 88-2520

DISCONTINUED

$

$

Not available

39

Toro 88-2530

1/4-20 HEX HEAD SCREW

$

$

Not available

40

Toro 88-2940

DISCONTINUED

$

$

Not available

41

Toro 88-2950

PISTON ASM

$

$

Not available

42

Toro 88-2960

O-RING

$

$

Not available

43

Toro 88-2970

CUP SEAL

$

$

Not available

45

Toro 88-2980

WASHER

$

$

Not available

46

$

$

Not available

47

Toro 88-3000

O-RING

$

$

Not available

48

Toro 88-3010

O-RING

$

$

Not available

49

Toro 88-3020

BACKUP RING

$

$

Not available

50

Toro 88-3030

PUSH ROD

$

$

Not available
