74021 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) STARTER ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

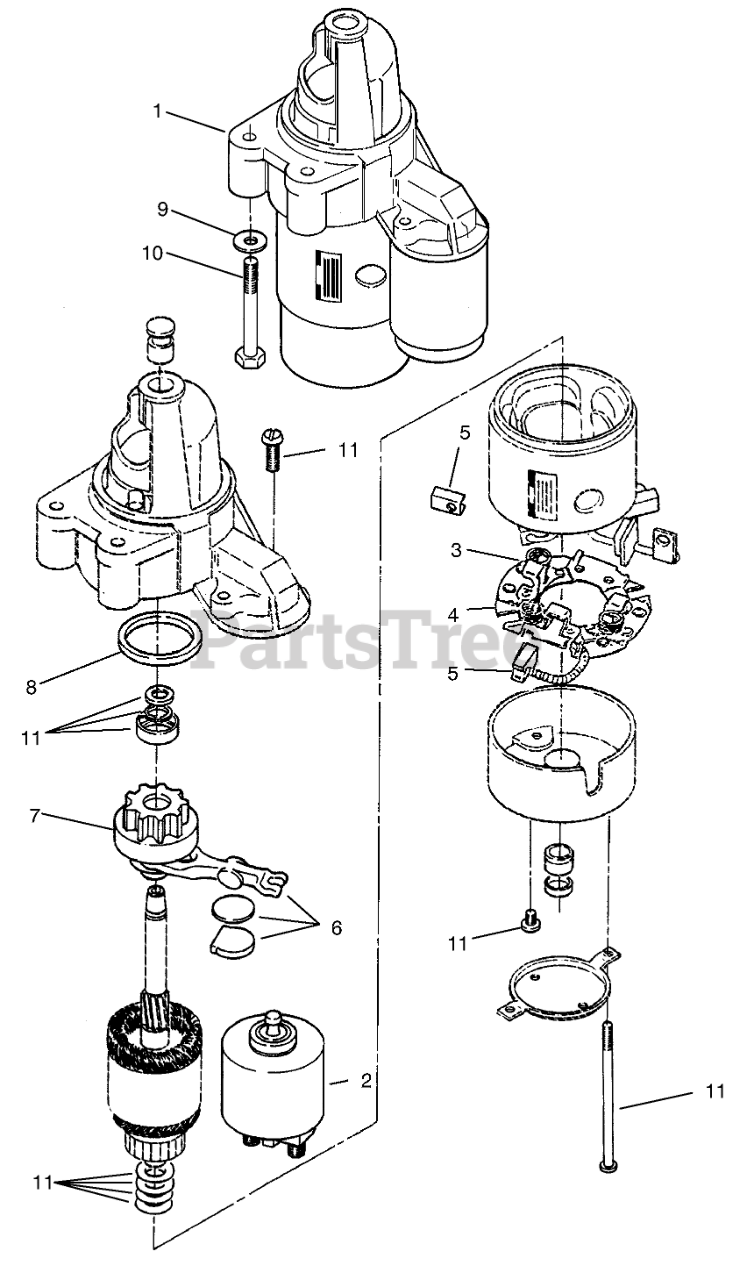

STARTER ASSEMBLY Parts Diagram

  • Title
1

Toro NN10519

Starter Assy
(Superseded to NN10889)

$

$

Not available

2

Toro 62-2720

Kit-Starter Solenoid (Incl. Spring Plunger)
(Superseded to 72-3930)

$

$

Not available

3

Toro 79-6300

SPRING-BRUSH

$

$

Not available

4

Toro 62-2750

Holder-Brush (Incl. Negative Brush)
(Superseded to 62-2740)

$

$

Not available

5

Toro 62-2740

Kit-Brush (Incl. Positive Brush (2) & Negative Brush w/Pigtail)

$

$

Not available

6

Toro 62-2770

Kit-Starter Shift Lever (Incl. Wear Plate & Plug)

$

$

Not available

7

Toro 72-3940

Clutch-Starter (Incl. Pinion Gear w/Clutch)

$

$

Not available

8

Toro 72-3950

Dust Seal
(Superseded to NN10886)

$

$

Not available

9

Toro 57-9770

WASHER

$

$

Not available

10

Toro NN10376

Bolt
(Superseded to 322-22)

$0.99

$

In Stock, Qty 20+

0

11

Toro NN10265

Kit-Hardware (Incl. Solenoid Screws (2) Brush Holder Screws (2) Thru Bolts (2) Armature Shims (2) Pinion Stop Collar & Pinion Retaining Ring)
(Superseded to 62-2760)

$

$

Not available
