74020 (4000) - Toro 60" Z Master Zero-Turn Mower (SN: 414137561 - 414307275) Frame Assembly Parts Diagram

60" Z Master Zero-Turn Mower

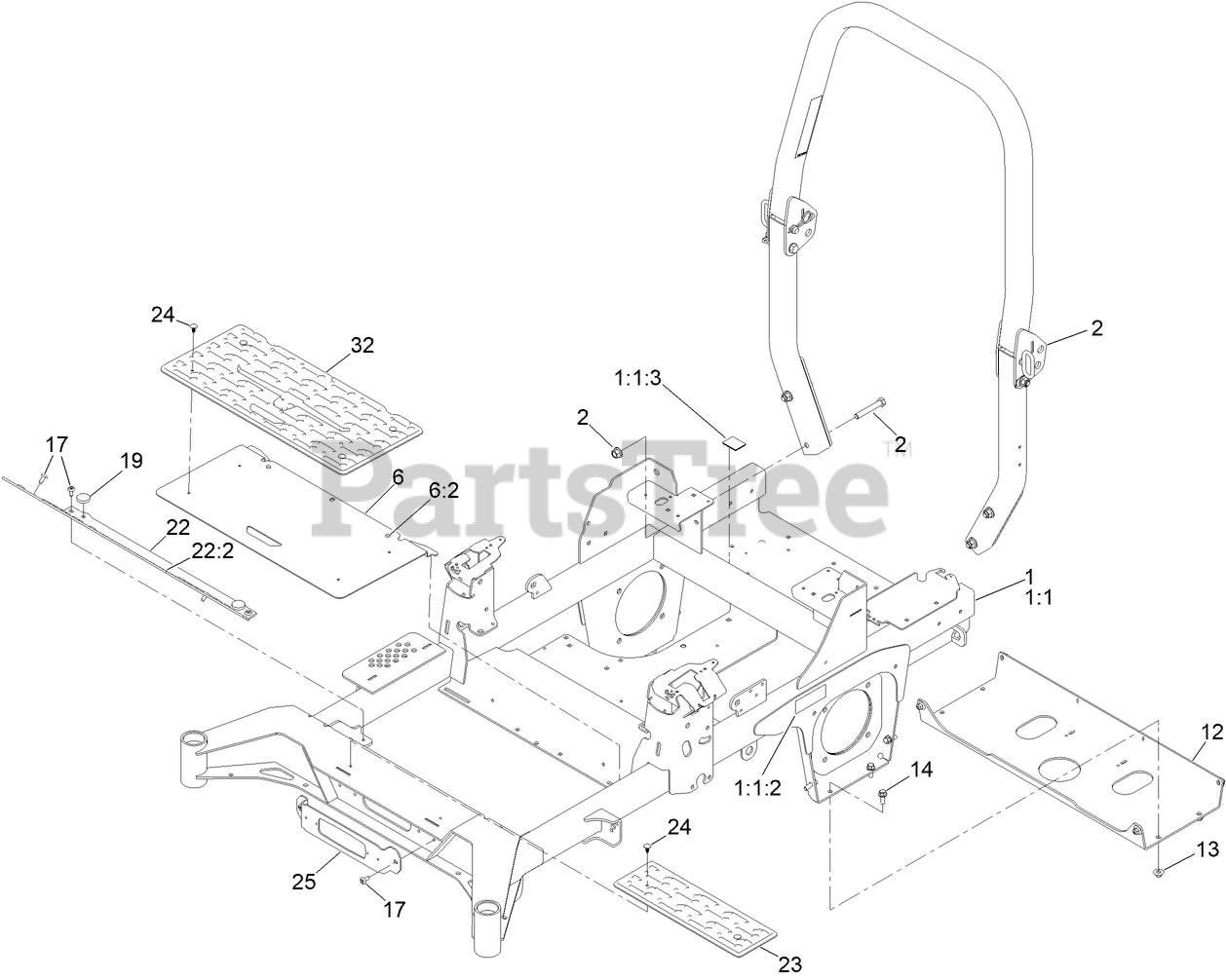

Frame Assembly Parts Diagram

  • Title

1

Toro 145-5775

FRAME ASM

$

$

Currently unavailable

1:1

FRAME-60 XL

Note: Not serviced separately

$

$

Not available

1:1:2

Toro 126-4363

DECAL-WARNING

$17.99

$

Usually ships in 3-6 days

0

1:1:3

Toro 144-2687

DECAL, BELT ROUTING

$2.99

$

Usually ships in 3-6 days

0

2

Toro 139-8062

ASM-ROPS

$557.99

$

Usually ships in 3-6 days

0

6

Toro 138-6098

ASM-FLOOR PAN

$115.99

$

Usually ships in 3-6 days

0

6:2

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 17

0

12

Toro 139-6717-01

PLATE-HYDRO

$184.99

$

Usually ships in 3-6 days

0

13

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

17

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

19

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 17

0

22

Toro 140-4995

TOEBOARD

$161.99

$

Usually ships in 3-6 days

0

22:2

Toro 126-8383

DECAL-DANGER

$8.99

$

In Stock, only 1 left!

0

23

Toro 140-4992

STEP

$20.99

$

Usually ships in 3-6 days

0

24

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 10

0

25

Toro 140-4994-01

BRACKET-LIGHT

$19.99

$

Usually ships in 3-6 days

0

32

Toro 140-7950

FLOORMAT-FIXED SEAT

$53.99

$

Usually ships in 3-6 days

0
