74000 TA (4000) - Toro 48" Z Master Zero-Turn Mower (SN: 414070904 - 414070927) Deck Assembly Parts Diagram

48" Z Master Zero-Turn Mower

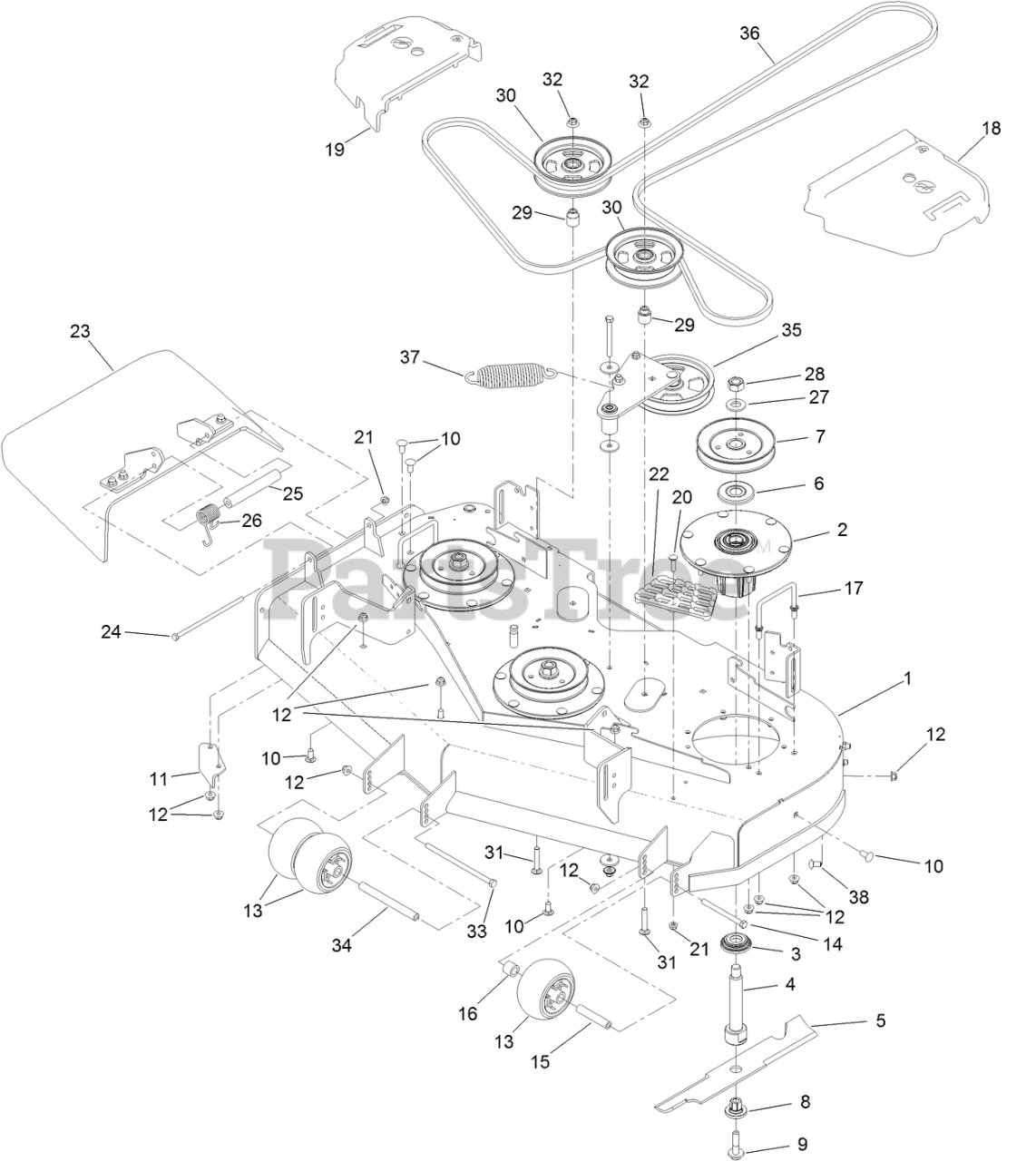

Deck Assembly Parts Diagram

  • Title

1

Toro 144-6586

DECK DECAL ASM

$1608.99

$

Usually ships in 3-6 days

0

2

Toro 137-9780

SPINDLE ASM

$156.99

$

In Stock, Qty 13

0

3

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, Qty 12

0

4

138-6045

SHAFT-SPINDLE

$

$

Not available

5

Toro 140-1243

BLADE-16.50 HIGH FLOW

$35.99

$

In Stock, Qty 16

0

6

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 12

0

7

Toro 138-6065

SHEAVE,BLADE DRIVE 5.91

$23.99

$

In Stock, only 2 left!

0

8

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

9

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

10

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 6

0

11

Toro 107-8541-01

BAFFLE-DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

14

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

15

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

16

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

17

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, Qty 9

0

18

Toro 109-6936

COVER-BELT, LH

$41.99

$

In Stock, Qty 15

0

19

Toro 109-6935

COVER-BELT, RH

$41.99

$

In Stock, Qty 8

0

20

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 126-4781-03

STEP-DECK

$28.99

$

In Stock, only 2 left!

0

23

Toro 144-2635

RUBBER DEFLECTOR ASM

$175.99

$

Usually ships in 3-6 days

0

24

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

0

25

Toro 105-4622

SPACER

$11.99

$

In Stock, Qty 6

0

26

Toro 108-4052

SPRING-TORSION

$26.99

$

In Stock, Qty 7

0

27

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

28

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

29

Toro 139-8061

BUSHING, IDLER

$6.99

$

In Stock, only 2 left!

0

30

Toro 132-9425

PULLEY-IDLER, FLAT

$49.99

$

In Stock, Qty 20+

0

31

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

32

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

33

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

34

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

35

Toro 139-1087

IDLER ARM ASM

$152.99

$

In Stock, only 1 left!

0

36

Toro 144-0358

BELT-V

$176.99

$

Usually ships in 3-6 days

0

37

Toro 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

38

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0
