74-1562 - Toro 32" Gear Case, Power Throw and Power Shift Snow Thrower 24 INCH GEAR CASE ASSEMBLY Parts Diagram

32" Gear Case, Power Throw and Power Shift Snow Thrower

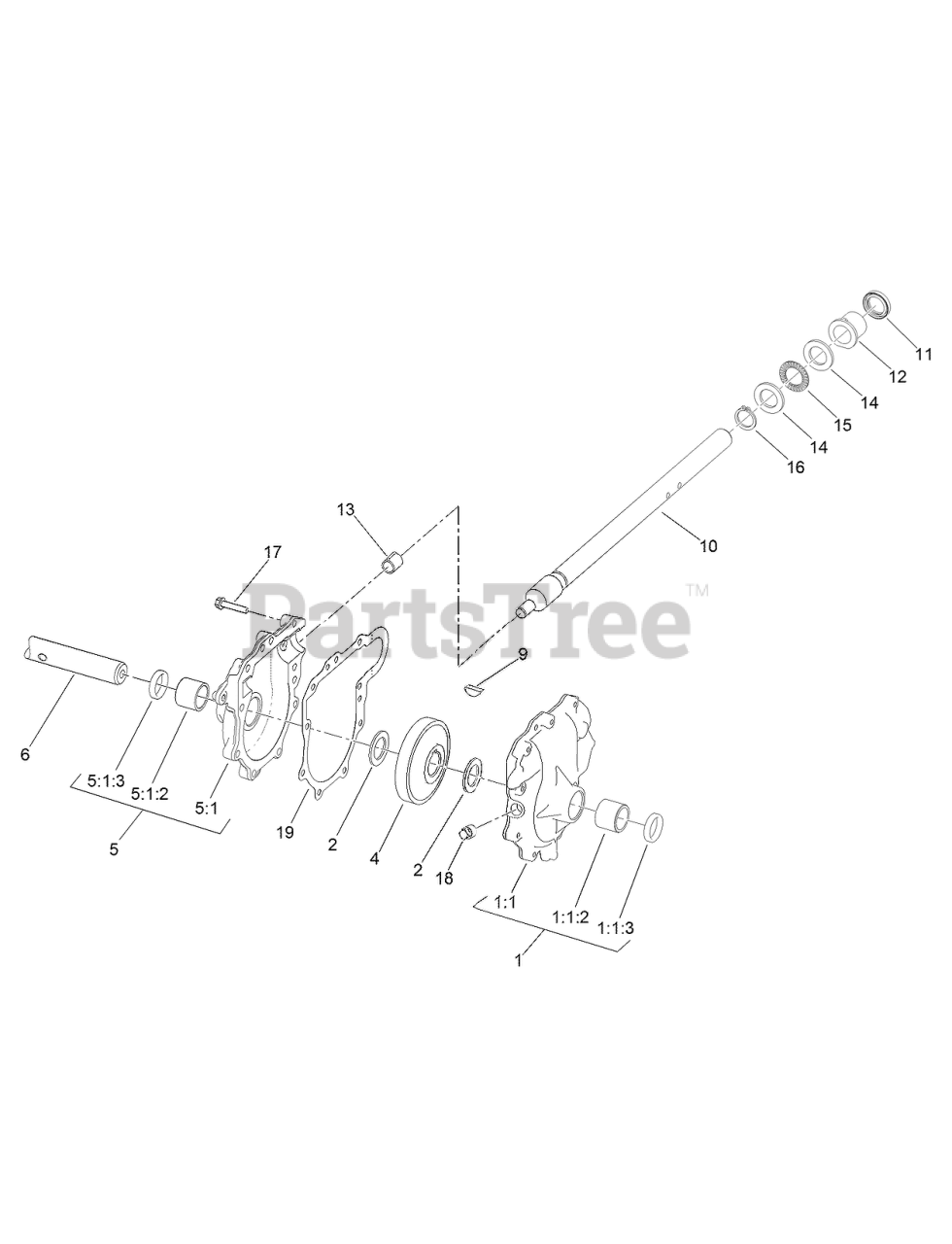

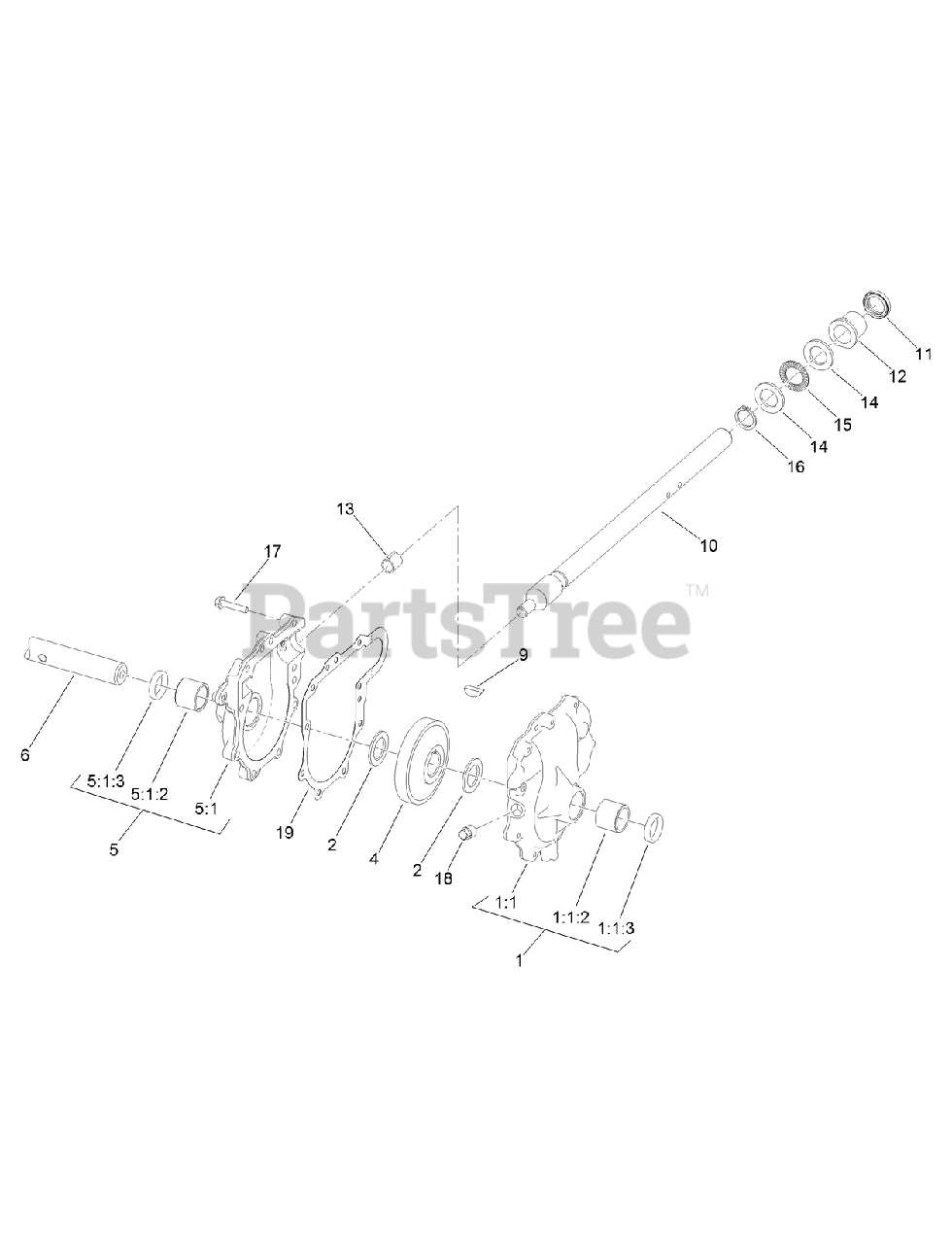

24 INCH GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 108-7325

LH AUGER GEARCASE ASM

$163.99

$

Usually ships in 3-6 days

0

1:1

Gearcase-Auger, LH

Note: Not serviced separately

$

$

Not available

1:1:2

Toro 112-6635

BUSHING-SLEEVE

$6.99

$

Usually ships in 3-6 days

0

1:1:3

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, Qty 6

0

2

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

4

Toro 62-0120

GEAR-HELICAL
(Superseded to 138-0696)

$68.99

$

Usually ships in 3-6 days

0

5

Toro 108-7327

RH AUGER GEARCASE ASM

$163.99

$

Usually ships in 3-6 days

0

5:1

GEARCASE-AUGER, RH

Note: Not serviced separately

$

$

Not available

5:1:2

Toro 112-6635

BUSHING-SLEEVE

$6.99

$

Usually ships in 3-6 days

0

5:1:3

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, Qty 6

0

6

Toro 62-1530

SHAFT-AUGER

$

$

Not available

9

Toro 3257-10

KEY-WOODRUFF

$6.49

$

Usually ships in 3-6 days

0

10

Toro 66-7811

SHAFT-IMPELLER

$266.99

$

Usually ships in 3-6 days

0

11

Toro 253-149

SEAL-OIL

$12.99

$

Usually ships in 3-6 days

0

12

Toro 37-6560

BUSHING-INPUT

$43.99

$

In Stock, only 1 left!

0

13

Toro 62-1150

BUSHING-WORM

$7.99

$

In Stock, only 2 left!

0

14

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

15

Toro 252-76

BEARING-THRUST

$21.99

$

Usually ships in 3-6 days

0

16

Toro 32151-33

RING-RETAINING, Ext

$3.49

$

In Stock, only 1 left!

0

17

Toro 108-4862

SCREW-HWHTF

$3.49

$

In Stock, only 2 left!

0

18

Toro 121-6832

PLUG-PIPE, SQH

$1.49

$

Usually ships in 3-6 days

0

19

Toro 108-7330

GASKET-GEARCASE, AUGER

$30.99

$

Usually ships in 3-6 days

0
