739 (739 PS) - BCS America Two-Wheeled Tractor, Power Safe Steering Column (SN: 918324 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

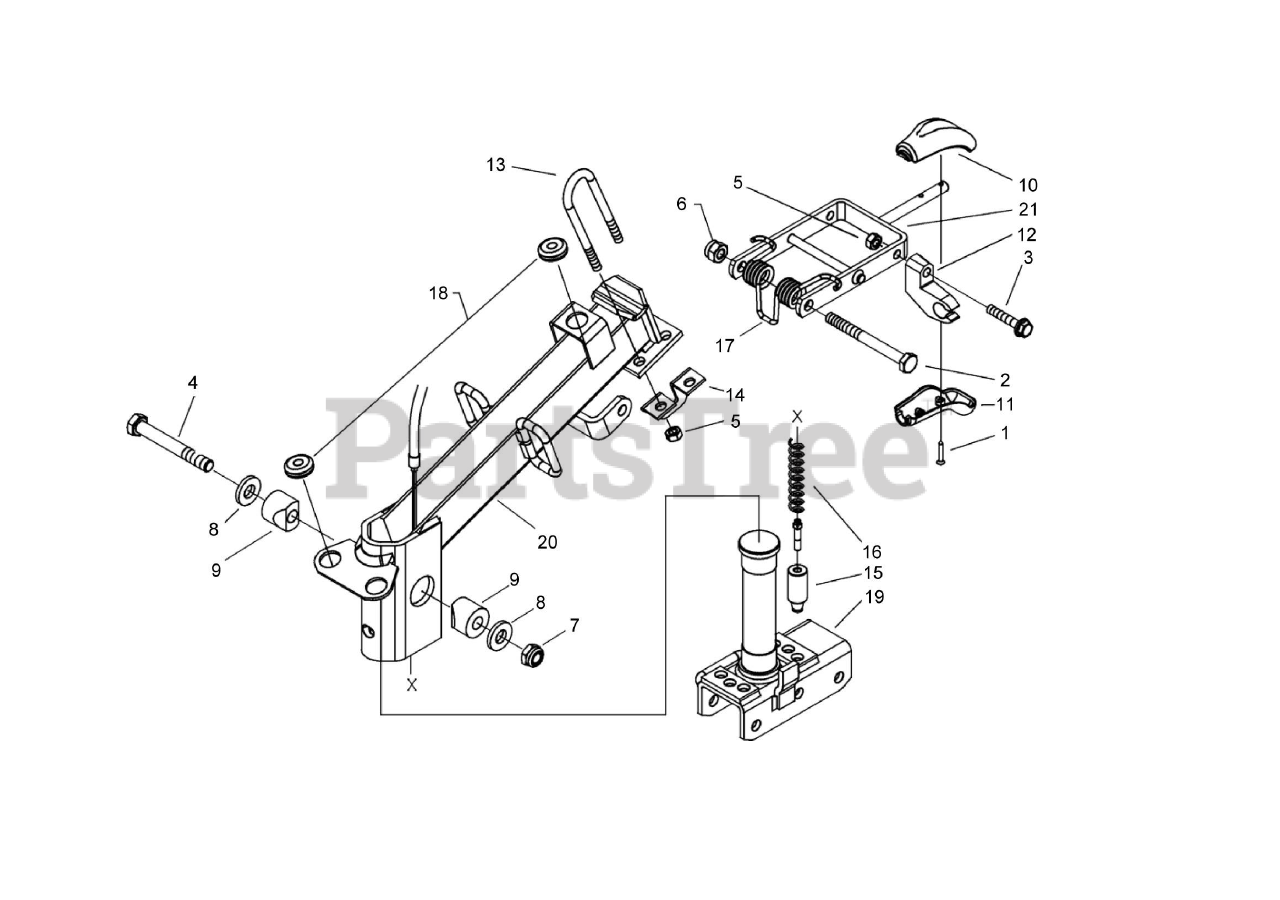

Steering Column (SN: 918324 & Above) Parts Diagram

  • Title

1

BCS America 31100451

SCREW 3.5X25

Note:

$0.99

$

In Stock, Qty 8

0

2

BCS America 31111229

CAPSCREW M10X110 UNI 5737-8G

Note:

$2.49

$

Usually ships in 5-8 days

0

3

BCS America 31112165

SCREW

Note:

$1.99

$

In Stock, only 1 left!

0

4

BCS America 31112293

CAPSCREW M12X80 UNI 5737-8G

Note:

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31241080

LOCKNUT M8 STANDARD DIN985ZC

Note:

$0.99

$

In Stock, Qty 11

0

6

BCS America 31241100

LOCKNUT M10 STANDARD DIN 985ZC

Note:

$1.49

$

In Stock, only 2 left!

0

7

BCS America 31241126

LOCK NUT M12 DEFORMED

Note:

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 31421100Z

SPRING WASHER

Note:

$

$

Currently unavailable

9

BCS America 52156917

WEDGE

Note:

$24.99

$

Usually ships in 5-8 days

0

10

BCS America 55157212

UPPER HDLE.REL.KNOB BLACK

Note:

$6.49

$

Usually ships in 5-8 days

0

11

BCS America 55157213

LOWER HDLE.REL. KNOB BLACK

Note:

$6.49

$

In Stock, only 3 left!

0

12

BCS America 55243340

SUPPORT, CONTROL ROD

Note:

$28.99

$

In Stock, only 1 left!

0

13

BCS America 56156940

U BOLT

Note:

$8.49

$

Usually ships in 5-8 days

0

14

BCS America 56156948N

BRACKET

Note:

$

$

Currently unavailable

15

BCS America 56356924

PIN

Note:

$32.99

$

Usually ships in 5-8 days

0

16

BCS America 58056918

SPRING, STEERING COLUMN

Note:

$4.49

$

Usually ships in 5-8 days

0

17

BCS America 58056942N

SPRING, RELEASE HDLE BAR

Note:

$

$

Currently unavailable

18

BCS America 58056991

SUPPORT CAP, BODY GUARD

Note:

$4.99

$

In Stock, only 3 left!

0

19

BCS America 59056793N

CONNECTION

Note:

$

$

Currently unavailable

20

BCS America 59056820N

COLUMN

Note:

$

$

Currently unavailable

21

BCS America 59057010N

LEVER, HANDLE BAR SELECTION

Note:

$

$

Currently unavailable
