739 (739 PS) - BCS America Two-Wheeled Tractor, Power Safe Electrical System (SN: 918324 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

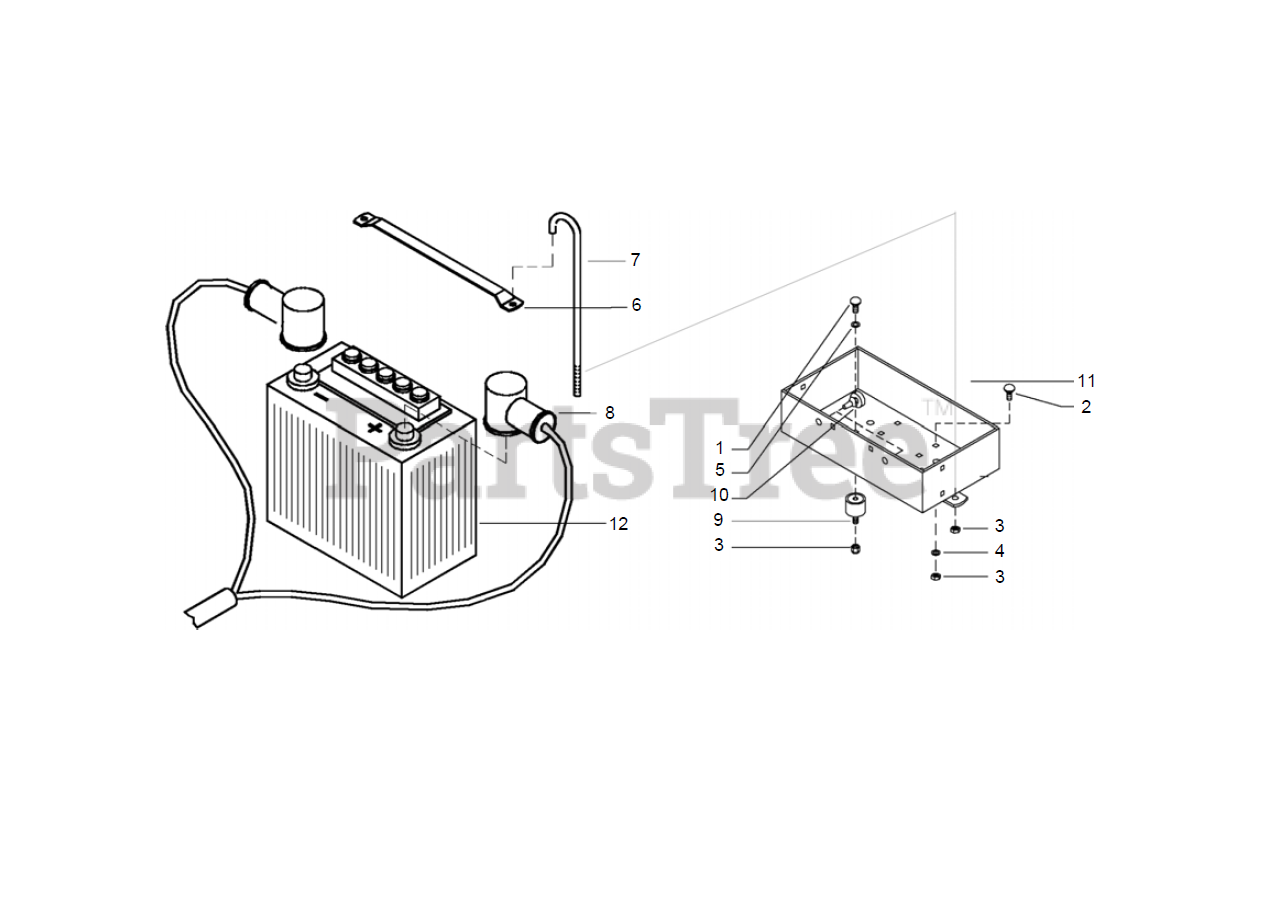

Electrical System (SN: 918324 & Above) Parts Diagram

  • Title
1

BCS America 31100201

BOLT W/SQUARE NUT M6X12

Note:

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 31121558

BOLT M6X16

Note:

$1.49

$

In Stock, Qty 5

0

3

BCS America 31241060

LOCKNUT M6 STANDARD

Note:

$0.99

$

In Stock, only 2 left!

0

4

BCS America 31411064

WASHER, FLAT M6 4X12

Note:

$0.99

$

In Stock, Qty 10

0

5

BCS America 31411090

WASHER, FLAT M9X24

Note:

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 56119937

BRACKET, BATTERY

Note:

$32.99

$

Usually ships in 5-8 days

0

7

$16.99

$

In Stock, only 2 left!

0

8

BCS America 58047460

CABLE, ELECTRIC STARTER

Note:

$106.99

$

Usually ships in 5-8 days

0

9

BCS America 58135225

RUBBER BUFFER,VIBRATION DAMPER

Note:

$24.99

$

Usually ships in 5-8 days

0

10

BCS America 58157405

RUBBER STOPPER

Note:

$2.49

$

Usually ships in 5-8 days

0

11

BCS America 59057390

BOX, BATTERY

Note:

$156.99

$

Usually ships in 5-8 days

0

12

see note

BATTERY, 12V 14:16Ah

Note:

$

$

Not available
