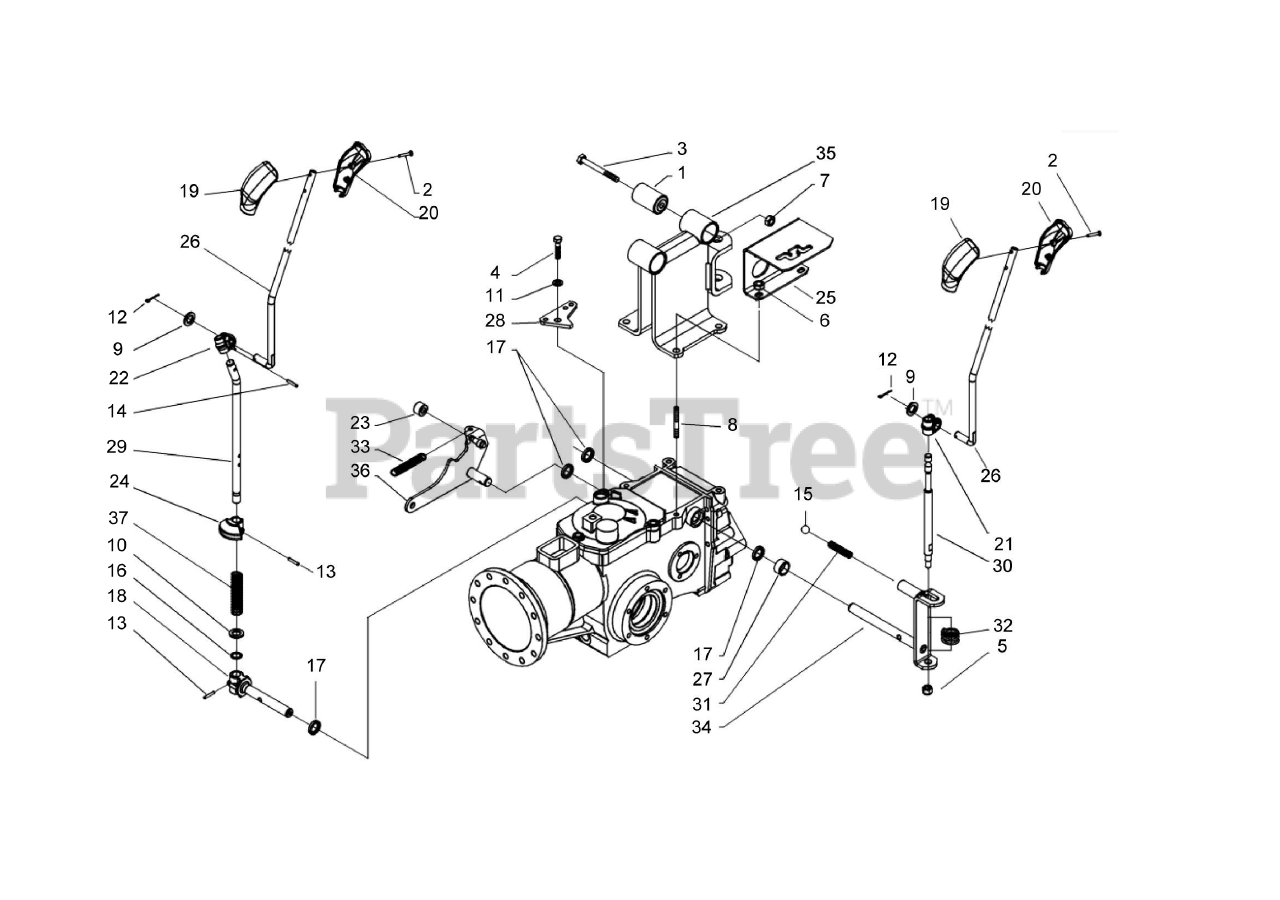

739 (739 PS) - BCS America Two-Wheeled Tractor, Power Safe Controls (SN: 918324 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Controls (SN: 918324 & Above) Parts Diagram

  • Title

1

BCS America 30010142

SILENTBLOCK 10 2X30X45X4

Note:

$30.99

$

Usually ships in 5-8 days

0

2

BCS America 31100451

SCREW 5X25 UNI 10228

Note:

$0.99

$

In Stock, Qty 8

0

3

BCS America 31111217

CAPSCREW M10X75 UNI 5737-8G

Note:

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 31112152

CAPSCREW M8X30 UNI 5739-8G

Note:

$1.49

$

In Stock, only 4 left!

0

5

BCS America 31241080

LOCKNUT M8

Note:

$0.99

$

In Stock, Qty 11

0

6

BCS America 31241084

LOCKNUT M8, FLANGED

Note:

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 31241100

LOCKNUT M10, STANDARD

Note:

$1.49

$

In Stock, only 2 left!

0

8

BCS America 31312082

STUD M8X38X14X20 GRADE 8

Note:

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 31411104

WASHER, FLAT M10.5X18 UNI 6592

Note:

$0.99

$

In Stock, Qty 5

0

10

BCS America 31414130

WASHER, FLAT M13 UNI 1749

Note:

$0.99

$

In Stock, Qty 5

0

11

BCS America 31423084

WASHER, LOCK B 8.4 DIN 137A ZINC

Note:

$0.99

$

In Stock, Qty 10

0

12

BCS America 34110028

PIN, COTTER A 2X15 UNI 1336

Note:

$0.99

$

In Stock, only 2 left!

0

13

BCS America 34213020

PIN, SPLIT 4X20 SPIROL UNI 6876

Note:

$1.49

$

Usually ships in 5-8 days

0

14

BCS America 34213024

PIN, SPLIT SW 4X24 SPIROL UNI 6876

Note:

$1.49

$

Usually ships in 5-8 days

0

15

BCS America 37911532

BALL 15/32

Note:

$1.49

$

In Stock, only 2 left!

0

16

BCS America 38111191

0 RING 115 11.91X2.62

Note:

$0.99

$

In Stock, only 1 left!

0

17

BCS America 38211400

OIL SEAL M14X22X4

Note:

$7.99

$

Usually ships in 5-8 days

0

18

BCS America 52357250

SHAFT, PTO

Note:

$132.99

$

Usually ships in 5-8 days

0

19

BCS America 55157212

UPPER HDLE.REL.KNOB BLACK

Note:

$6.49

$

In Stock, only 2 left!

0

20

BCS America 55157213

LOWER HDLE.REL. KNOB

Note:

$6.49

$

In Stock, only 3 left!

0

21

BCS America 55242528

JOINT D 10, PLASTIC

Note:

$11.99

$

In Stock, only 2 left!

0

22

BCS America 55248379

ARTICULATION, PTO

Note:

$8.99

$

Usually ships in 5-8 days

0

23

BCS America 55257313

PINS, PTO LOCKOUT

Note:

$6.49

$

Usually ships in 5-8 days

0

24

BCS America 55257321

ARTICULATOR, PTO

Note:

$13.99

$

In Stock, only 1 left!

0

25

BCS America 56156734H

SELECTOR, GEAR

Note:

$

$

Currently unavailable

26

BCS America 56156792N

PULL ROD 722

Note:

$

$

Currently unavailable

27

BCS America 56157257Z

SPACER, LEVER

Note:

$

$

Currently unavailable

28

BCS America 56157274

BRACKET ,REVERSE

Note:

$10.99

$

Usually ships in 5-8 days

0

29

BCS America 56157324N

SHIFT ARM, PTO

Note:

$

$

Currently unavailable

30

BCS America 56356738Z

COMMAND LEVER

Note:

$

$

Currently unavailable

31

BCS America 58043176

SPRING

Note:

$2.49

$

In Stock, only 1 left!

0

32

BCS America 58057232Z

SPRING, GEAR STICK

Note:

$

$

Currently unavailable

33

BCS America 58057273

SPRING

Note:

$9.49

$

Usually ships in 5-8 days

0

34

BCS America 59056735N

GEAR LEVER

Note:

$

$

Currently unavailable

35

BCS America 59056920

HANDLE BAR SUPPORT

Note:

$295.99

$

Usually ships in 5-8 days

0

36

BCS America 59057319

LEVER, PTO LOCKOUT

Note:

$63.99

$

Usually ships in 5-8 days

0

37

BCS America F0831193010

SPRING DM 15X70

Note:

$8.99

$

Usually ships in 5-8 days

0
