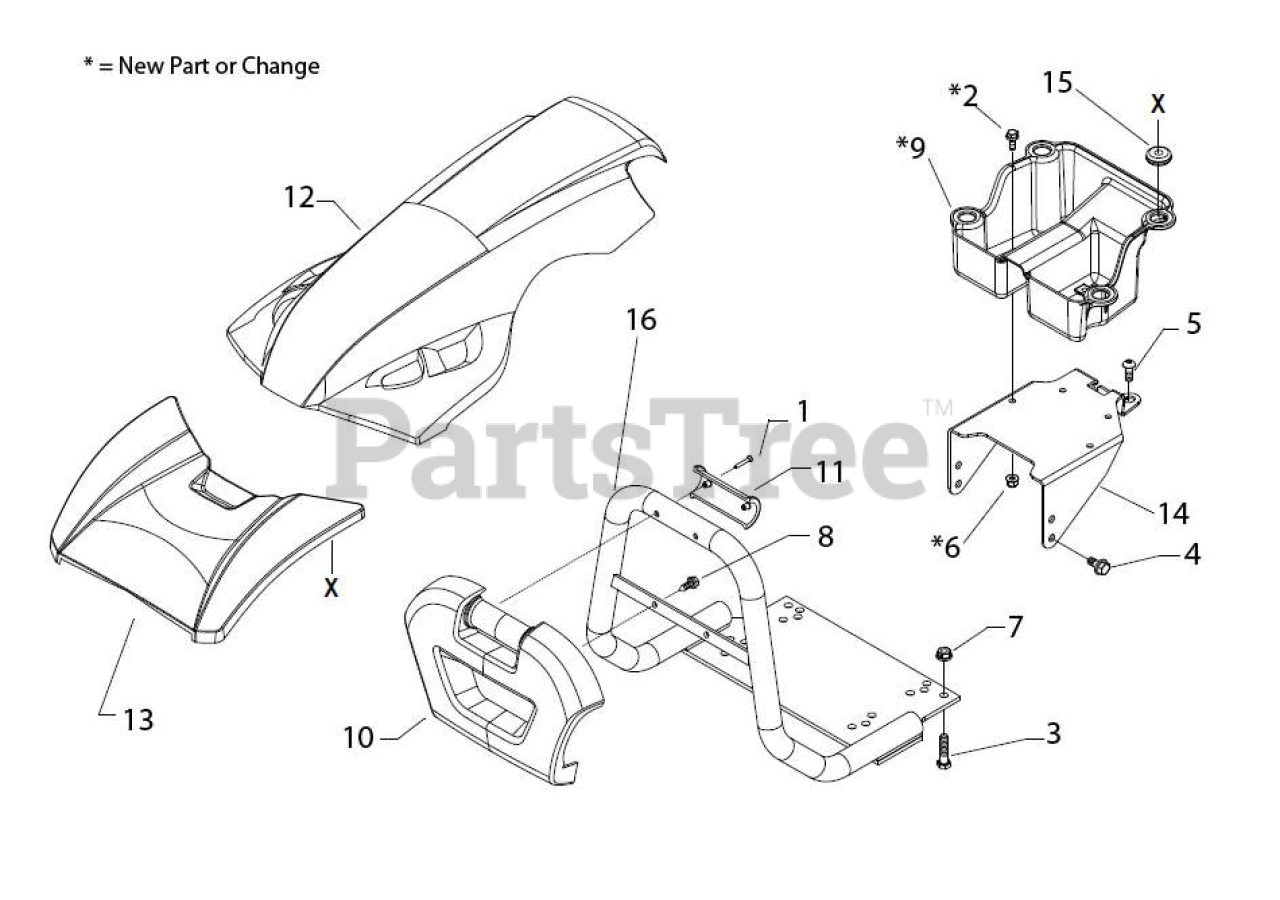

739 (739 PS) - BCS America Two-Wheeled Tractor, Power Safe Bumper & Accessories (SN: 963640 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Bumper & Accessories (SN: 963640 & Above) Parts Diagram

  • Title

1

BCS America 31100451

SCREW 3,5X25

Note:

$0.99

$

In Stock, Qty 8

0

2

BCS America 31112081

SCREW TE C/F M6X20

Note:

$

$

Currently unavailable

3

BCS America 31112154

SCREW TE M8X40

Note:

$1.99

$

In Stock, only 4 left!

0

4

BCS America 31112171

SCREW TE C/F M8X16

Note:

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31121008

SCREW TBCEI M10X16

Note:

$2.99

$

Usually ships in 5-8 days

0

6

BCS America 31241066

SELFLOCK M6

Note:

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 31241084

SELFLOCK NUT M8

Note:

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 31510100

RIBBED SCREW 6,3X19

Note:

$1.49

$

In Stock, only 2 left!

0

9

BCS America 552C1001

SUPPORT TRAY

Note:

$64.99

$

Usually ships in 5-8 days

0

10

BCS America 55257521

BUMPER GUARD

Note:

$58.99

$

Usually ships in 5-8 days

0

11

BCS America 55257522

CLAMP

Note:

$28.99

$

In Stock, only 1 left!

0

12

BCS America 55257620

COVER HANDLEBAR

Note:

$125.99

$

In Stock, only 1 left!

0

13

BCS America 55257621

GUARD, LOWER

Note:

$73.99

$

Usually ships in 5-8 days

0

14

BCS America 56156246

BRACKET SUPPORT

Note:

$86.99

$

Usually ships in 5-8 days

0

15

BCS America 58056991

GROMMET

Note:

$4.99

$

In Stock, only 3 left!

0

16

BCS America 59053021

BUMPER HONDA GX 340

Note:

$187.99

$

Usually ships in 5-8 days

0
