738003 - Ariens Chute Crank Add-On Kit Chute Crank Kit Parts Diagram

Chute Crank Add-On Kit

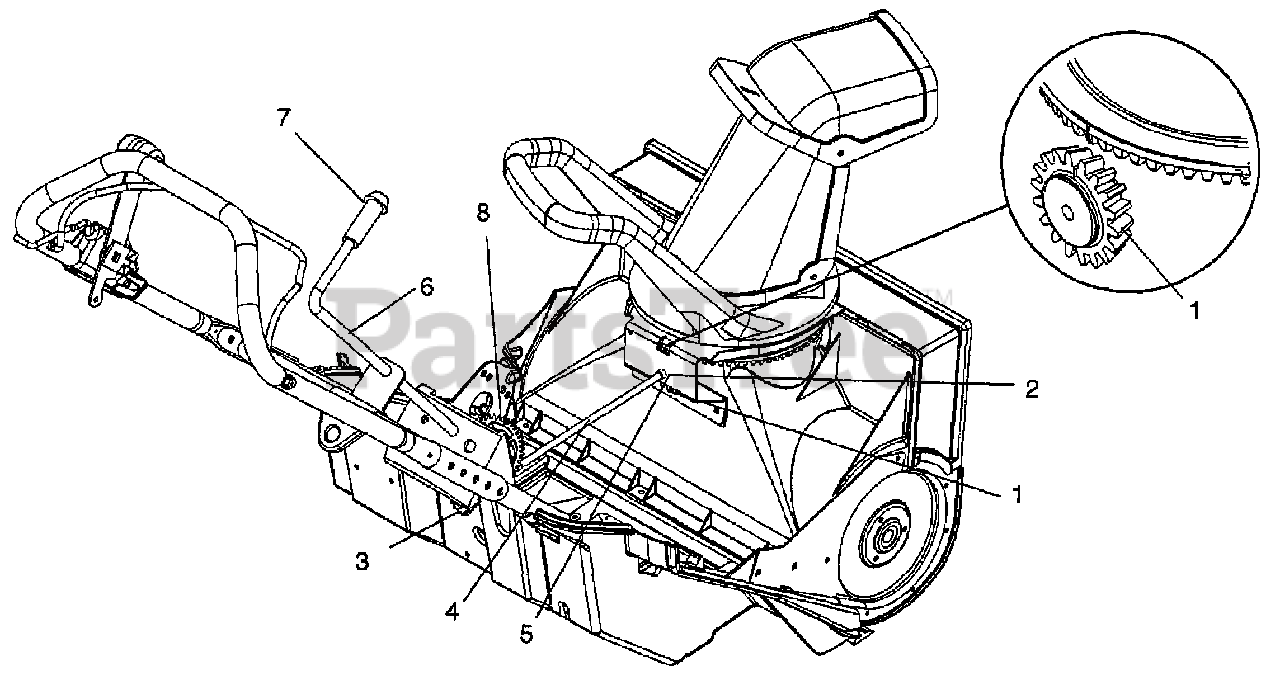

Chute Crank Kit Parts Diagram

  • Title

1

Ariens 03804100

PINION-DISCHARGE CHUTE 18T

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

3

Ariens 03804200

PINION-CRANK TRANSFER 12T

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 03803600

SHAFT CHUTE CRANK TRANSFER

$28.99

$

Usually ships in 4-12 days

0

5

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 53800100

CRANK-CHUTE ASSY

$201.99

$

Usually ships in 4-12 days

0

7

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

8

Ariens 03804300

GEAR-CRANK TRANSFER 48T

$

$

Not available

9

Ariens 03803900

BSHG-SLV .510X.753X2.00

$

$

Not available

10

Ariens 06701100

@PIN-CTR .16X1.25 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

Ariens 04003500

TIE WRAP, 15.25" X 120 LBS

Note: (large)

$

$

Not available

Ariens 07517300

CABLE TIE LG 5-1/2

Note: (medium)

$

$

Not available

Ariens 07527400

CABLE TIE .50 BUNDLE X3.12X18#

Note: (small)

$

$

Not available

Ariens 73800300

KIT-CHUTE CRANK ADD-ON

$

$

Not available
