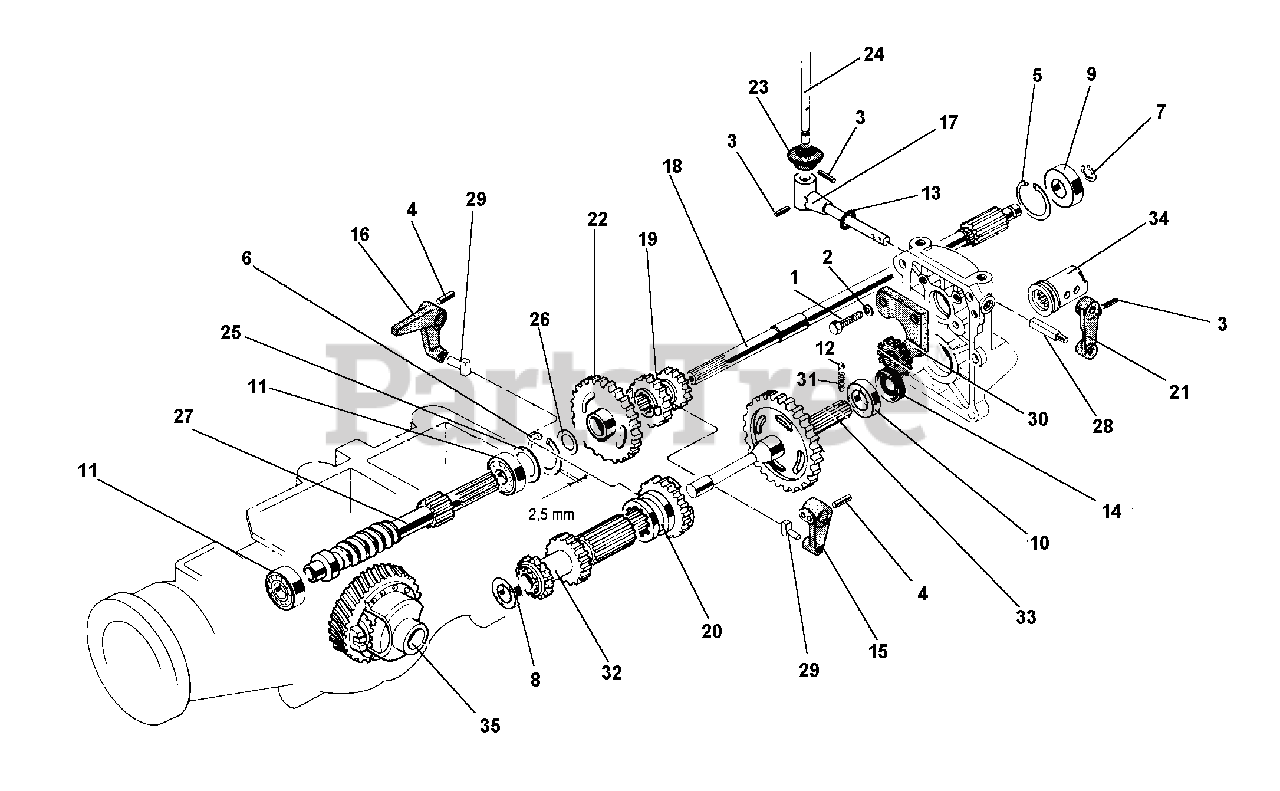

737 - BCS America Two-Wheeled Tractor Gears (SN: 14276 & Above) Parts Diagram

Two-Wheeled Tractor

Gears (SN: 14276 & Above) Parts Diagram

  • Title

1

BCS America 311.12211

SCREW M10 X 30

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 314.21101

SUPER WASHER 10

$1.99

$

In Stock, only 3 left!

0

3

BCS America 34213020

LOCKING PIN 4 X 20 SPIRAL

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 342.13024

LOCKING PIN 4 X 24 SPIRAL

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 351.11042

CIRCLIP, INTERNAL

$2.49

$

Usually ships in 5-8 days

0

6

BCS America 351.11053

CIRCLIP INTERNAL DIAM. 52

$7.49

$

Usually ships in 5-8 days

0

7

BCS America 351.21015

CIRCLIP

$0.99

$

Usually ships in 5-8 days

0

8

BCS America 371.11151

BEARING

$10.99

$

In Stock, only 1 left!

0

9

BCS America 371.11152

BEARING 15 X 42 X 13

$17.99

$

Usually ships in 5-8 days

0

10

BCS America 371.11255

BEARING 25 X 52 X 15

$15.99

$

In Stock, only 1 left!

0

11

BCS America 37141250

BEARING

$101.99

$

Usually ships in 5-8 days

0

12

BCS America 379.11238

BALL 3/8

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 381.11191

O-RING

$0.99

$

In Stock, only 1 left!

0

14

BCS America 38212500

OIL SEAL 25 X 40 X 7

$10.99

$

Usually ships in 5-8 days

0

15

BCS America 521.43171

LEVER, SPEED CHG SLDG GR

$49.99

$

Usually ships in 5-8 days

0

16

BCS America 52147530

LEVER, REVERSER

$48.99

$

Usually ships in 5-8 days

0

17

BCS America 523.47532

PTO CONTROL PIN

$62.99

$

Usually ships in 5-8 days

0

18

BCS America 524.47492

CLUTCH SHAFT FOR REVERSER

$429.99

$

Usually ships in 5-8 days

0

19

BCS America 524.47494

DOUBLE SLIDER

$273.99

$

Usually ships in 5-8 days

0

20

BCS America 524.47516

SLIDER, REVERSER

$

$

Not available

21

BCS America 524.47523

PTO LEVER

$87.99

$

Usually ships in 5-8 days

0

22

BCS America 524.48078

WHEELS FIRST SPEED

$

$

Not available

23

BCS America 552.48378

PTO STOP RING

$32.99

$

Usually ships in 5-8 days

0

24

BCS America 561.47581

PTO CONTROL LEVER

$45.99

$

Usually ships in 5-8 days

0

25

BCS America 563.48056

RING C-72

$2.99

$

Usually ships in 5-8 days

0

26

BCS America 563.48077

WASHER 25 X 32 X 2 C-72

$2.99

$

Usually ships in 5-8 days

0

27

BCS America 56447490

WORM GEAR

$264.99

$

Usually ships in 5-8 days

0

28

BCS America 564.47524

PTO SLIDER

$21.99

$

Usually ships in 5-8 days

0

29

BCS America 580.43086

SHOE

$10.99

$

Usually ships in 5-8 days

0

30

BCS America 580.47528

GEAR, REVERSER

$

$

Currently unavailable

31

BCS America 580.47579

SPRING D6.2 X 15

$39.99

$

Usually ships in 5-8 days

0

32

BCS America 590.47496

GEAR

$357.99

$

Usually ships in 5-8 days

0

33

BCS America 590.47517

PTO SHAFT

$

$

Not available

34

BCS America 590.47521

PTO COUPLING

$203.99

$

Usually ships in 5-8 days

0

35

BCS America 590.48199

DIFFERENTIAL

$1106.99

$

Usually ships in 5-8 days

0
