736038 - Ariens 30" Mower Grass Catcher Repair Parts Parts Diagram

30" Mower Grass Catcher

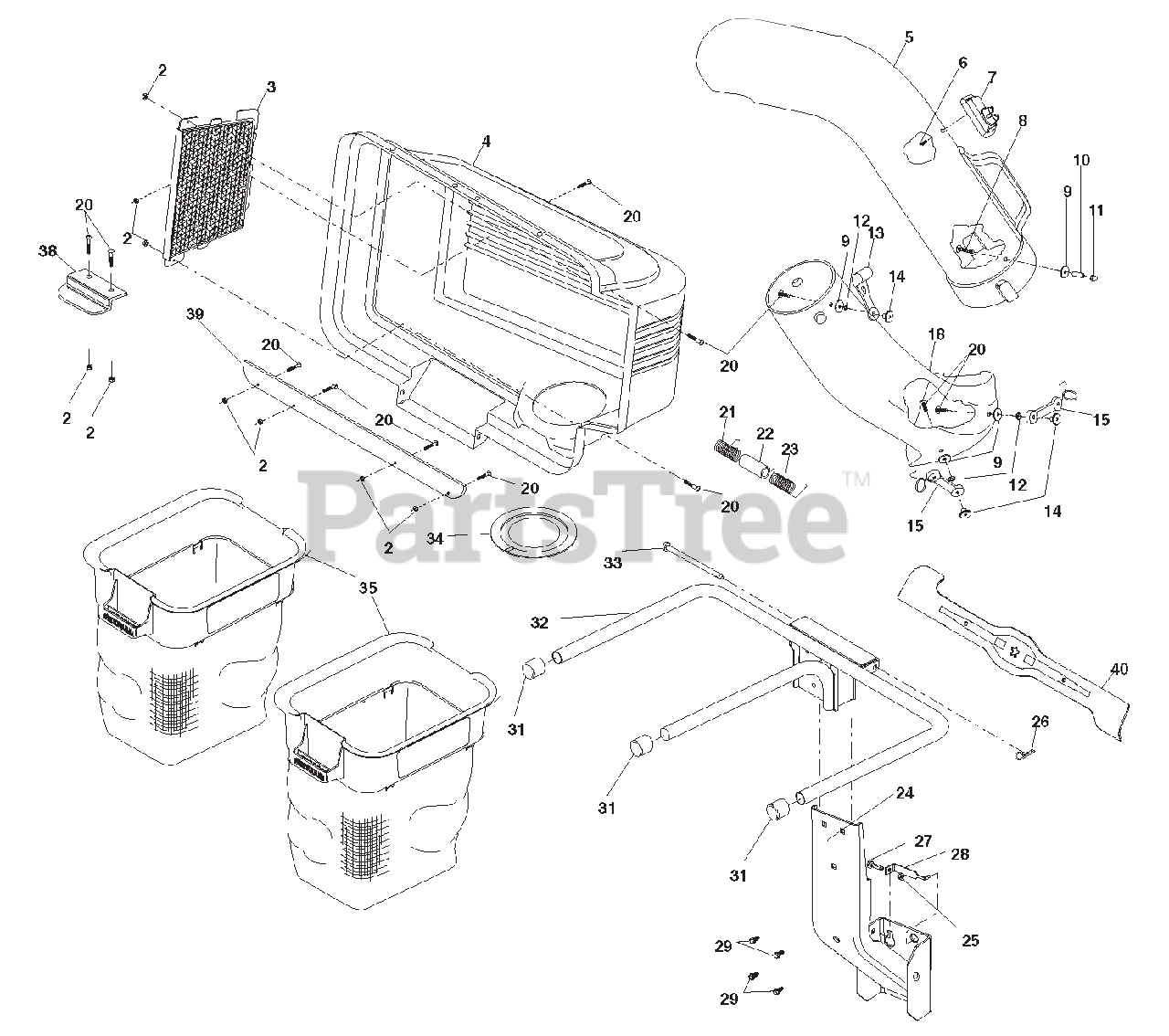

Repair Parts Parts Diagram

  • Title
2

Ariens 21548505

NUT, CROWN LOCK #10-24

$

$

Not available

3

Ariens 21547019

SCREEN, BAGGER COVER

$

$

Not available

4

Ariens 21546940

Cover Assembly (Includes 3, 38

Note: (Includes 3, 38, 39)

$

$

Not available

5

Ariens 21546959

Chute, Upper

$

$

Not available

6

Ariens 21546974

Screw, Special #10-14x1/2

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 21547018

FULL BAG INDICATROR

$

$

Not available

8

Ariens 21548036

SCREW #10-24 X 1-1/8"
(Superseded to 21546920)

$9.49

$

Usually ships in 4-12 days

0

9

Ariens 21546917

Washer 3/16x3/4x16 Ga.
(Superseded to 06400004)

$2.49

$

In Stock, only 3 left!

0

10

Ariens 21546941

Spacer, Split
(Superseded to 21548038)

$6.49

$

In Stock, Qty 8

0

11

Ariens 21548037

ACORN NUT #10-24
(Superseded to 06541300)

$3.99

$

In Stock, Qty 8

0

12

Ariens 21547022

LOCK WASHER

$4.99

$

In Stock, Qty 11

0

13

Ariens 21547023

CHUTE LATCH, HUSQ BAGGER

$6.99

$

In Stock, Qty 13

0

14

Ariens 21546924

Nut, Weld

$

$

Not available

15

Ariens 21546936

Latch Hook
(Superseded to 597000601)

$6.99

$

In Stock, Qty 12

0

18

Ariens 21548515

CHUTE, LOWER

$111.99

$

Usually ships in 4-12 days

0

20

Ariens 21546976

Screw #10-24 x 5/8
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

21

Ariens 21546931

Spring, Cover L.H. (black)

Note: (black)

$

$

Not available

22

Ariens 21546933

Spacer, Cover

$6.49

$

In Stock, only 2 left!

0

23

Ariens 21546932

Spring, Cover R.H. (gray)

Note: (gray)

$

$

Not available

24

Ariens 21546946

Support Assemble
(Superseded to 21546960)

$

$

Not available

25

Ariens 21546979

Lock Nut 1/4-20
(Superseded to 21546914)

$

$

Not available

26

Ariens 21547907

RETAINER.SPRING

$

$

Not available

27

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 21546944

Bracket, Lock

$

$

Not available

29

Ariens 21546939

Bolt, Shoulder 5/16-18

$4.99

$

In Stock, Qty 5

0

31

Ariens 21546942

Plug, Tubing End

$

$

Not available

32

Ariens 21546945

Bagger, Frame

$112.99

$

Usually ships in 4-12 days

0

33

Ariens 21546954

Pin, Hinge

$

$

Not available

34

Ariens 21547021

GASKET, BAGGER COVER

$23.99

$

Usually ships in 4-12 days

0

35

Ariens 21546957

Container

$100.99

$

Usually ships in 4-12 days

0

38

Ariens 21546929

Latch Handle, Cover

$

$

Not available

39

Ariens 21546935

Strip, Reinforcement

$

$

Not available

40

Ariens 21548516

BLADE, 30" BAGGER

$

$

Not available

- -

Ariens 21548517

OWNER'S MANUAL, ENGLISH/FRENCH

$

$

Not available

- -

Ariens 21548518

OWNER'S MANUAL, SPANISH

$

$

Not available
