7360 SS (590-603-100) - Cub Cadet Compact Tractor Transmission - Main Shaft Parts Diagram

Compact Tractor

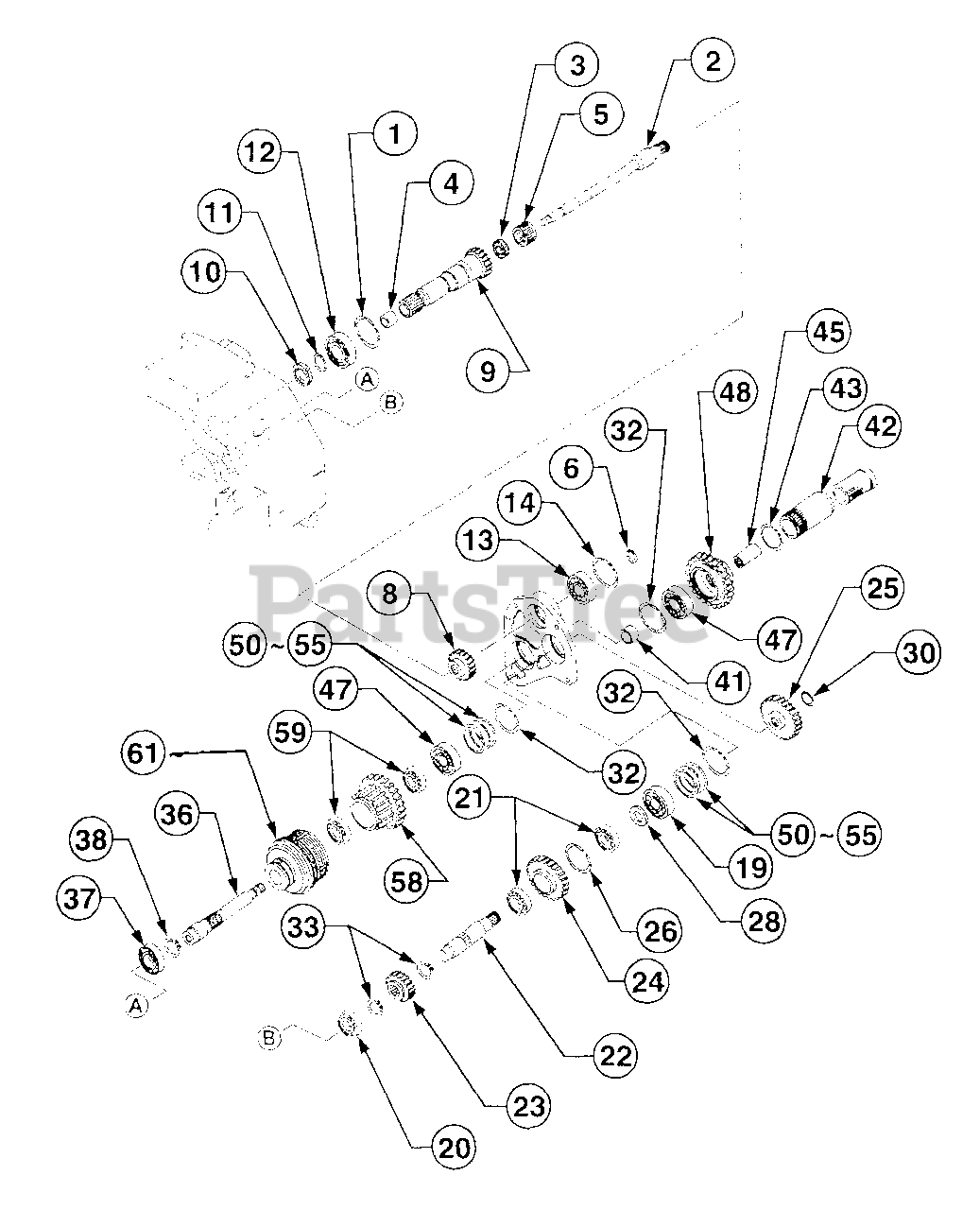

Transmission - Main Shaft Parts Diagram

  • Title

1

Cub Cadet MA-07410007201

C-Ring

$

$

Not available

2

Cub Cadet MA-10371247001

Shaft, Main

$

$

Not available

3

Cub Cadet MA-08401020358

Seal, Oil

$

$

Not available

4

Cub Cadet MA-07963020200

Bushing

$

$

Not available

5

Cub Cadet MA-07802323826

Bearing, Needle

$

$

Not available

6

Cub Cadet MA-07400002500

C-Ring

$

$

Not available

8

Cub Cadet MA-10371253001

Gear 22T

$

$

Not available

9

Cub Cadet MA-19611254000

Shaft Drive A

$

$

Not available

10

Cub Cadet MA-08401035508

Seal, Oil

$15.99

$

Usually ships in 3-6 days

0

11

Cub Cadet MA-07400103500

C-Ring

$2.99

$

In Stock, only 1 left!

0

12

Cub Cadet MA-07500062070

Bearing, Ball

$

$

Not available

13

Cub Cadet MA-07500063050

Bearing, Ball

$38.99

$

In Stock, only 4 left!

0

14

Cub Cadet MA-07410006201

C-Ring

$

$

Not available

19

Cub Cadet MA-07520663050

Bearing, Ball

$

$

Not available

20

Cub Cadet MA-07500063050

Bearing, Ball

$38.99

$

In Stock, only 4 left!

0

21

Cub Cadet MA-07500060060

Bearing, Ball

$

$

Not available

22

Cub Cadet MA-19611236000

Shaft

$

$

Not available

23

Cub Cadet MA-19611256000

Gear 27T

$

$

Not available

24

Cub Cadet MA-19611234000

Gear 31T

$

$

Not available

25

Cub Cadet MA-19611233000

Gear 30T

$

$

Not available

26

Cub Cadet MA-07410005501

C-Ring

$

$

Not available

28

Cub Cadet MA-10301328000

Liner

$

$

Not available

30

Cub Cadet MA-07400102500

C-Ring
(Superseded to MA-07400002500)

$

$

Not available

32

Cub Cadet MA-07410106201

C-Ring

$

$

Currently unavailable

33

Cub Cadet MA-07400004000

C-Ring

$

$

Not available

36

Cub Cadet MA-19611263000

Shaft

$

$

Not available

37

Cub Cadet MA-07500060060

Bearing, Ball

$

$

Not available

38

Cub Cadet MA-07400003000

C-Ring

$

$

Not available

41

Cub Cadet MA-10311264000

Spacer

$25.99

$

Usually ships in 3-6 days

0

42

Cub Cadet MA-10311265000

Joint C

$

$

Not available

43

Cub Cadet MA-07400005001

C-Ring

$

$

Not available

45

Cub Cadet MA-10231915000

Joint, Front
(Superseded to MA-102319150C1)

$104.99

$

Usually ships in 3-6 days

0

47

Cub Cadet MA-07500063050

Bearing, Ball

$38.99

$

In Stock, only 4 left!

0

48

Cub Cadet MA-10311267000

Gear 41T

$

$

Not available

Cub Cadet MA-10211318000

Liner Set

Note: (Incl. item(s) 50-52)

$

$

Not available

50

Cub Cadet MA-07300006201

Liner, t=0.15

$

$

Not available

51

Cub Cadet MA-07300006208

Liner, t=0.8

$

$

Not available

52

Cub Cadet MA-07300006204

Liner, t=0.4

$

$

Not available

53

Cub Cadet MA-07300006202

Liner, t=0.2

$

$

Not available

54

Cub Cadet MA-07300006206

Liner, t=0.6

$

$

Not available

55

Cub Cadet MA-07300006210

Liner, t=1.0

$

$

Not available

58

Cub Cadet MA-19611262000

Gear 40T

$

$

Not available

59

Cub Cadet MA-07500060050

Bearing, Ball

$

$

Not available

61

Cub Cadet MA-19611261000

PTO Clutch Ass'y.

Note: For breakdown of Clutch, go to "Transmission - P.T.O. Clutch" illustration and parts list.

$

$

Not available
