7360 SS (590-603-100) - Cub Cadet Compact Tractor Timing Gear Case Parts Diagram

Compact Tractor

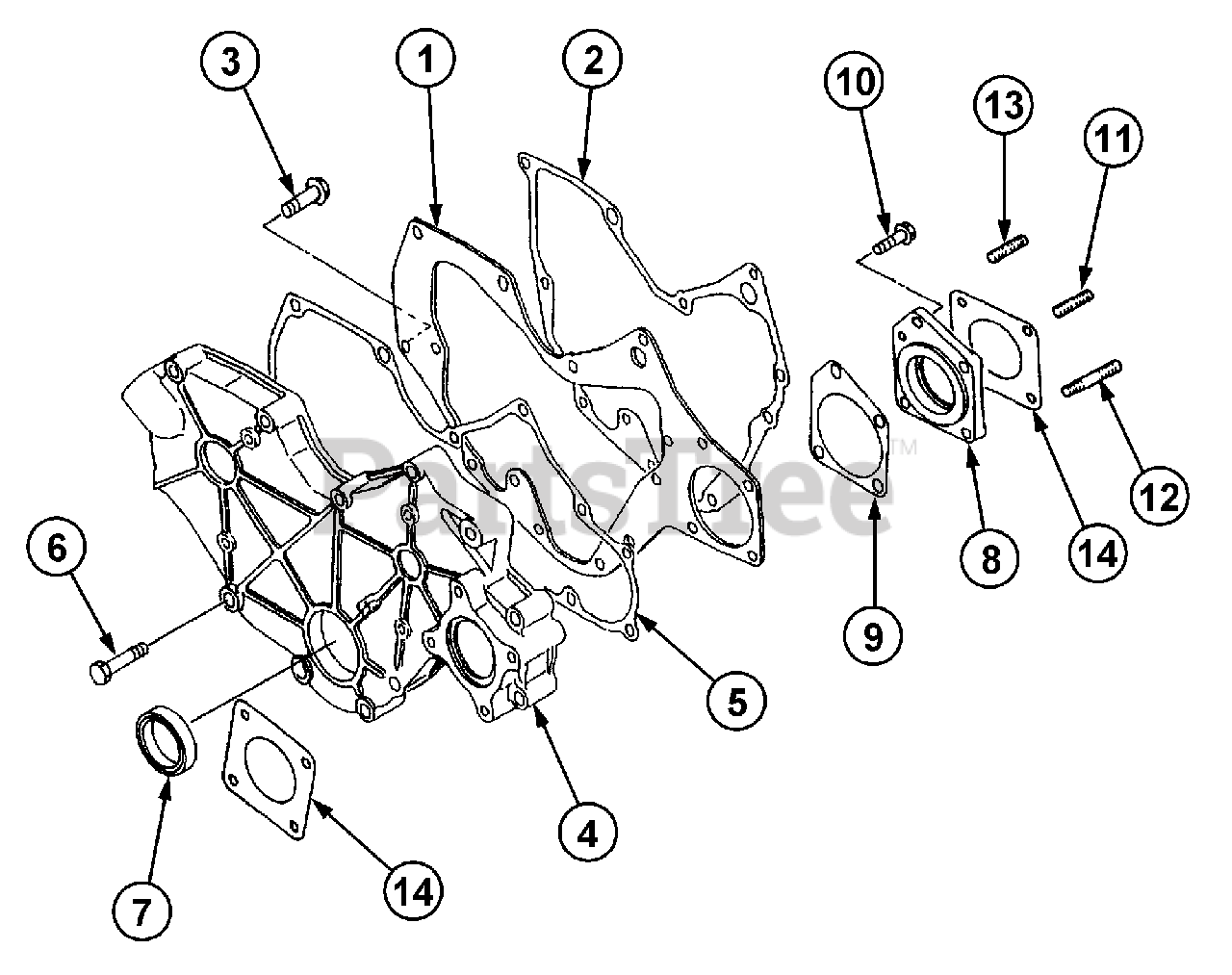

Timing Gear Case Parts Diagram

  • Title
1

$

$

Not available

2

Cub Cadet MA-31A07-11901

Gasket, Plate

$20.99

$

In Stock, only 1 left!

0

3

Cub Cadet MA-31A07-11900

Bolt, w/Washer
(Superseded to MA-31A07-11901)

$20.99

$

In Stock, only 1 left!

0

4

Cub Cadet MA-31A11-00800

Gear Case, P.T.O.

$

$

Not available

5

Cub Cadet MA-31A11-11101

Gasket, Gearcase
(Superseded to MA-31A11-11100)

$

$

Not available

$

$

Not available

7

$

$

Not available

8

Cub Cadet MA-31A11-05101

Housing, Gearpump

$

$

Not available

9

Cub Cadet MA-31A11-05201

Gasket, Housing

$

$

Not available

10

Cub Cadet MA-F1540108030

Bolt, w/Washer

$

$

Not available

11

Cub Cadet MA-MF401936

Stud (8x25)
(Superseded to MA-F1435-08025)

$

$

Not available

12

Cub Cadet MA-MS401335

Stud (8x45)

$

$

Not available

13

Cub Cadet MA-MF401935

Stud (8x22)

$

$

Not available

14

Cub Cadet MA-MM40120601

Gasket, Cover
(Superseded to MA-30A11-00101)

$

$

Not available
