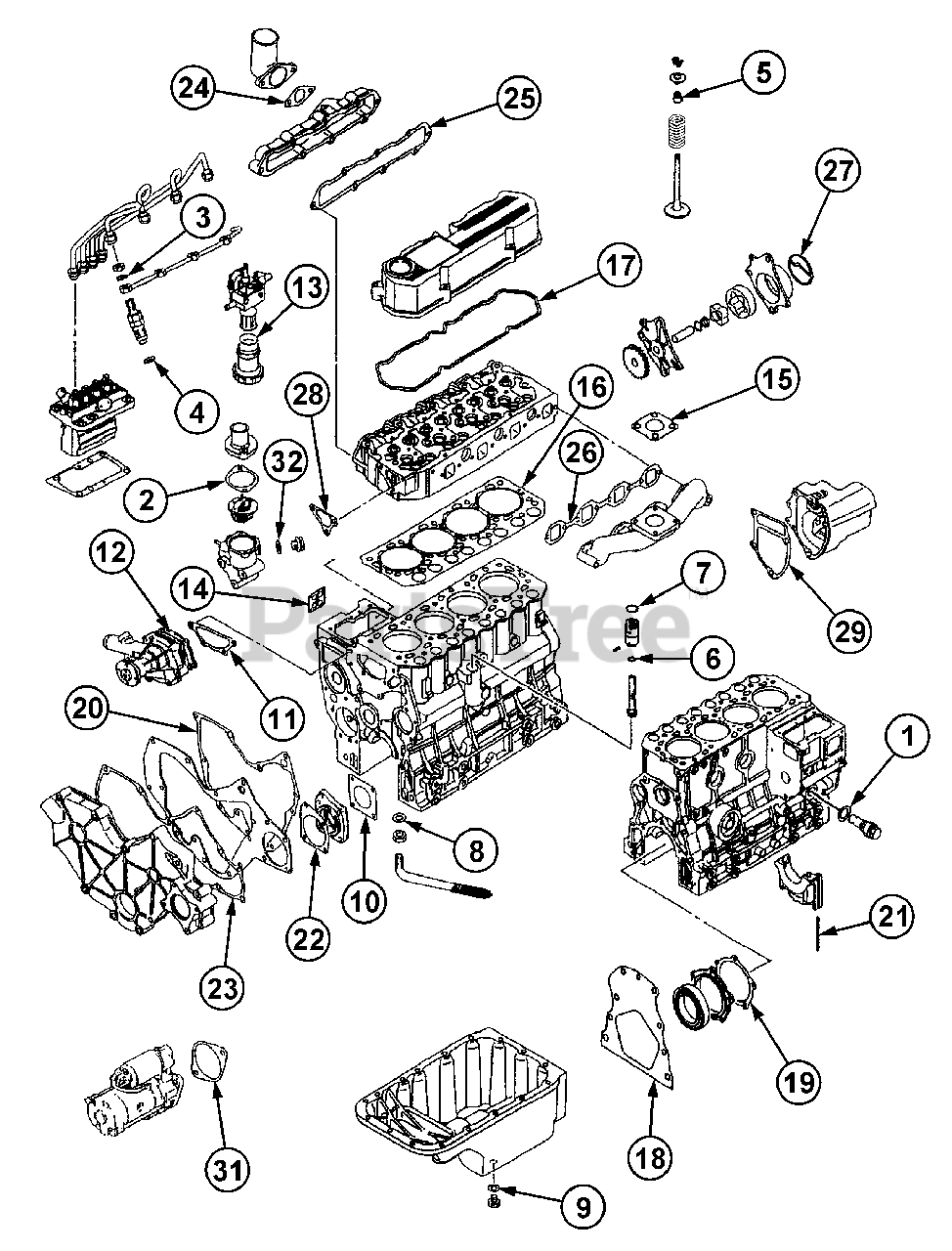

7360 SS (590-603-100) - Cub Cadet Compact Tractor Overhaul Gasket Kit Parts Diagram

Compact Tractor

Overhaul Gasket Kit Parts Diagram

  • Title

Cub Cadet MA-31A94-30011

Gasket Kit (O/H)
(Superseded to MA-31A94-16010)

Note: (Incl. items 1-32)

$

$

Not available

1

Cub Cadet MA-F4202-22000

Gasket

$

$

Not available

2

Cub Cadet MA-MD000551

Gasket
(Superseded to MA-31A46-11200)

$9.99

$

In Stock, only 2 left!

0

3

Cub Cadet MA-MD068355

Gasket

$

$

Not available

4

Cub Cadet MA-MD070717

Gasket, Holder

$6.49

$

In Stock, only 3 left!

0

5

Cub Cadet MA-MD115472

Seal, Valve Stem

$13.99

$

Usually ships in 3-6 days

0

6

Cub Cadet MA-MD701788

O-Ring

$

$

Not available

7

Cub Cadet MA-MF520012

O-Ring
(Superseded to MA-08300100180)

$

$

Not available

8

Cub Cadet MA-MF660036

Gasket

$

$

Not available

9

Cub Cadet MA-MF660065

Gasket

$

$

Currently unavailable

10

Cub Cadet MA-30A11-00100

Gasket, Oil Pump
(Superseded to MA-30A11-00101)

$

$

Not available

11

Cub Cadet MA-30H45-00100

Gasket, Water
(Superseded to MA-30H45-00101)

$

$

Not available

12

Cub Cadet MA-MM409326

Gasket, Water

$

$

Not available

13

Cub Cadet MA-MM409869

O-Ring, Filter

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet MA-MM435249

Protecter

$

$

Not available

15

Cub Cadet MA-30A30-00200

Gasket, Muffler

$8.99

$

Usually ships in 3-6 days

0

16

Cub Cadet MA-31A01-33300

Gasket, Cyl/Head

$241.99

$

Usually ships in 3-6 days

0

17

Cub Cadet MA-31A04-33202

Gasket, Rocker

$

$

Not available

18

Cub Cadet MA-31A07-02401

Gasket, Rear

$

$

Not available

19

Cub Cadet MA-31A07-11701

Gasket

$

$

Not available

20

Cub Cadet MA-31A07-11900

Gasket
(Superseded to MA-31A07-11901)

$20.99

$

Usually ships in 3-6 days

0

21

Cub Cadet MA-31A07-12200

Seal, Side

$

$

Not available

22

Cub Cadet MA-31A11-05201

Gasket, Housing

$

$

Not available

23

Cub Cadet MA-31A11-11101

Gasket, Gearcase
(Superseded to MA-31A11-11100)

$38.99

$

Usually ships in 3-6 days

0

24

Cub Cadet MA-31A30-00801

Gasket, Inlet

$

$

Not available

25

Cub Cadet MA-31A30-10902

Gasket, Inlet

$

$

Not available

26

Cub Cadet MA-31A32-01200

Gasket, Exhaust

$

$

Not available

27

Cub Cadet MA-31A35-02300

Packing, Body

$

$

Not available

28

Cub Cadet MA-31A46-10101

Gasket, Thrmo

$

$

Not available

29

Cub Cadet MA-31A63-12201

Gasket, Gov Case
(Superseded to MA-31A63-12200)

$

$

Not available

?30

Gasket, Liquid

Note: (Not Shown); Purchase Locally

$

$

Not available

31

Cub Cadet MA-30A66-00100

Gasket, Starter

$

$

Not available

32

Cub Cadet MA-30636-35900

Gasket

$

$

Not available
