7360 SS (590-603-100) - Cub Cadet Compact Tractor Hydraulic Lift Lever Parts Diagram

Compact Tractor

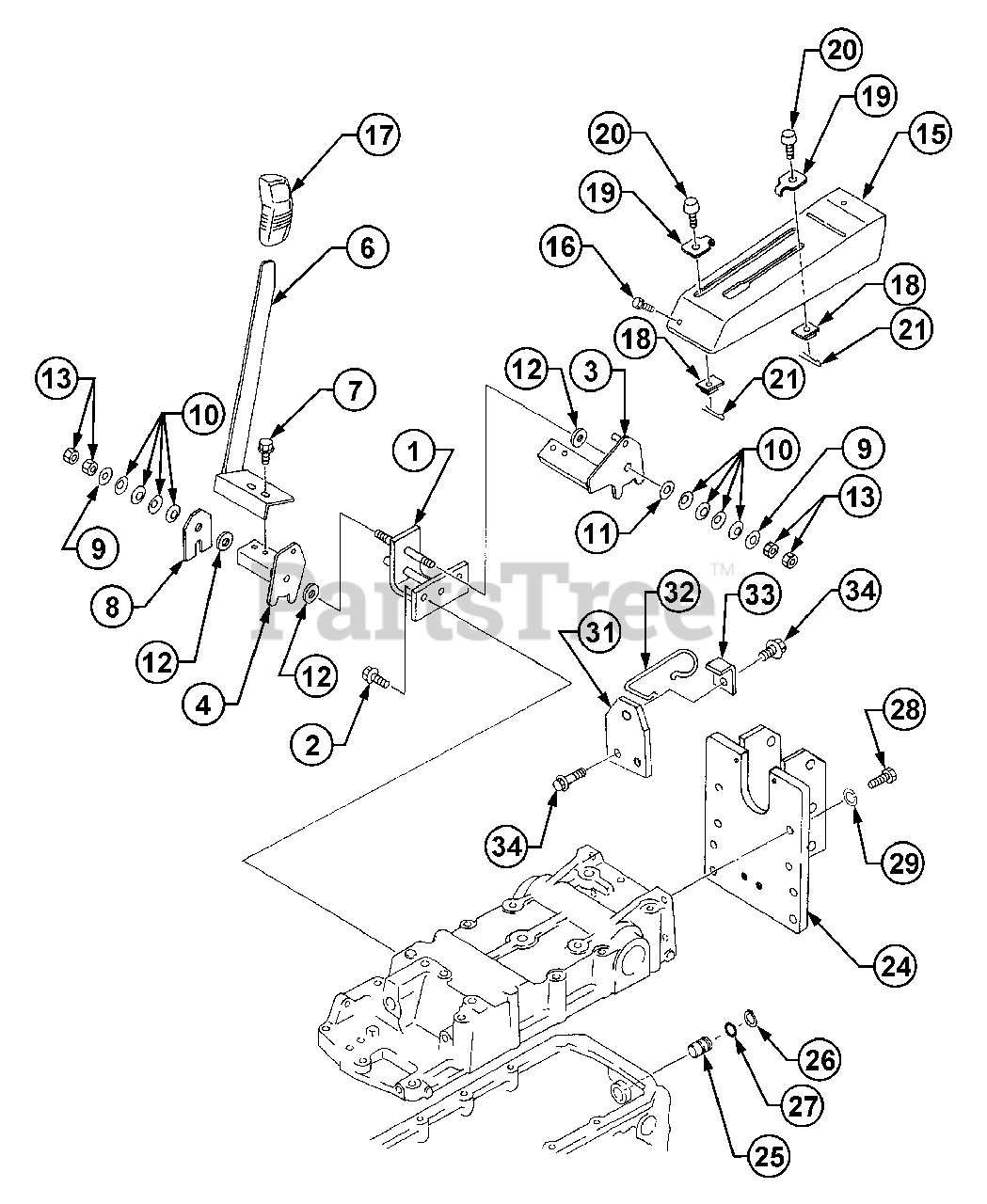

Hydraulic Lift Lever Parts Diagram

  • Title

1

Cub Cadet MA-10312441AG0

Bracket

$

$

Not available

2

Cub Cadet MA-F1550110025

Bolt, w/Washer

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet MA-10312442AG1

Lever C

$

$

Not available

4

Cub Cadet MA-10312443AG0

Lever D

$

$

Not available

6

Cub Cadet MA-10312446AG1

Lever F

$

$

Not available

7

Cub Cadet MA-H1840108020

Bolt, w/Washer

$

$

Not available

8

Cub Cadet MA-10312439AG0

Plate

$

$

Not available

9

Cub Cadet MA-03500151226

Washer

$

$

Not available

10

Cub Cadet MA-03560101201

Spring, Conical

$

$

Not available

11

Cub Cadet MA-31212559000

Liner
(Superseded to MA-36301208000)

$

$

Not available

12

Cub Cadet MA-19680212000

Lining, Brake

$

$

Not available

13

Cub Cadet MA-A3030112002

Nut

$

$

Not available

15

Cub Cadet MA-10372474AG0

Cover

$

$

Not available

16

Cub Cadet MA-F0500406016

Bolt

$

$

Not available

17

Cub Cadet MA-10302444000

Grip

$

$

Not available

18

Cub Cadet MA-10312476000

Plate, Stopper

$

$

Not available

19

Cub Cadet MA-10302445000

Stopper

$10.99

$

Usually ships in 3-6 days

0

20

Cub Cadet MA-10212438000

Grip

$

$

Not available

21

Cub Cadet MA-05200125016

Pin, Split
(Superseded to MA-05200125015)

$

$

Not available

24

Cub Cadet MA-19612448AG0

Bracket

$

$

Not available

25

Cub Cadet MA-10312453000

Pin

$

$

Not available

26

Cub Cadet MA-07400002500

C-Ring

$

$

Not available

27

Cub Cadet MA-08300100210

O-Ring

$

$

Not available

28

Cub Cadet MA-A0400114040

Bolt

$

$

Not available

29

Cub Cadet MA-A3600101402

Washer, Spring

$

$

Not available

31

Cub Cadet MA-19613021AG1

Plate (Replaces MA-19613021AG0)

$

$

Not available

32

Cub Cadet MA-19633031000

Hook Top Link

$

$

Not available

33

Cub Cadet MA-35324858AG0

Plate

$

$

Not available

34

Cub Cadet MA-H1540108020

Bolt (Quantity used with MA-19613012AG0 Plate was three)

$3.49

$

Usually ships in 3-6 days

0

35

Cub Cadet MA-H1540108025

Bolt

$

$

Not available

36

Cub Cadet MA-A3010108002

Nut

$

$

Not available
