7360 SS (590-603-100) - Cub Cadet Compact Tractor Axle, MFD Front - Gear Case Assembly Parts Diagram

Compact Tractor

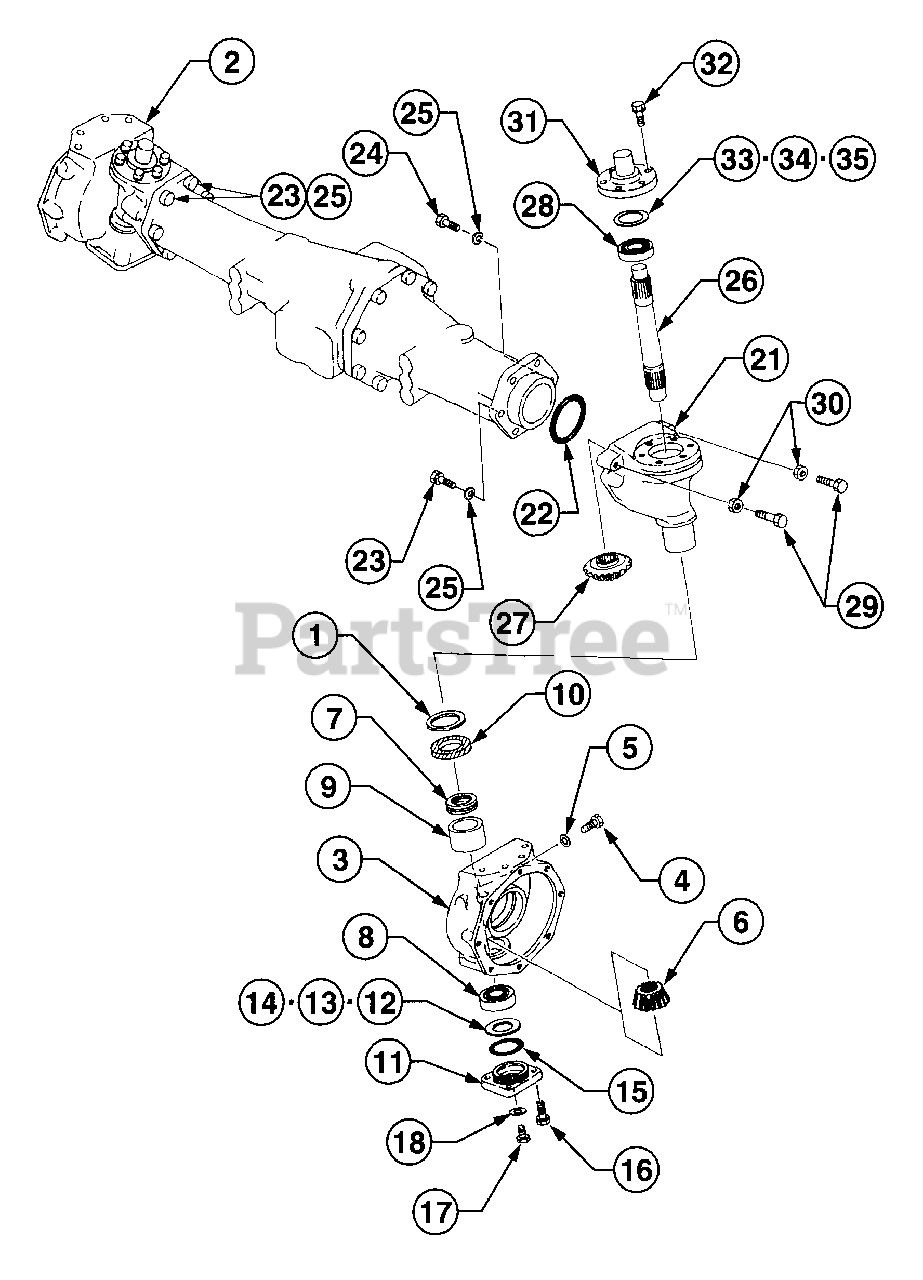

Axle, MFD Front - Gear Case Assembly Parts Diagram

  • Title

1

Cub Cadet MA-10352151000

SI. Sleeve
(Superseded to MA-10352151001)

$

$

Not available

Cub Cadet MA-10352151001

SI. Sleeve

$

$

Not available

2

Cub Cadet MA-10312147AG0

Case R.H., Gear

$

$

Not available

3

Cub Cadet MA-10312148AG0

Case L.H., Gear

$

$

Not available

4

Cub Cadet MA-27403214200

Plug

$

$

Not available

5

Cub Cadet MA-08331000800

Washer, Seal

$

$

Not available

6

Cub Cadet MA-10312149000

Gear, 13T

$

$

Not available

7

Cub Cadet MA-07600051106

Bearing, Thrust

$41.99

$

In Stock, only 1 left!

0

8

Cub Cadet MA-07520663050

Bearing, Ball

$

$

Not available

9

Cub Cadet MA-10312141000

Bushing

$

$

Not available

10

Cub Cadet MA-10352152000

Seal, Oil
(Superseded to MA-10352152001)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-10352152001

Seal, Oil

$52.99

$

Usually ships in 3-6 days

0

11

Cub Cadet MA-10312139AG0

Cover

$

$

Not available

12

Cub Cadet MA-07300006201

Liner, t=0.15

$

$

Not available

13

Cub Cadet MA-07300006202

Liner, t=0.2

$

$

Not available

14

Cub Cadet MA-07300006203

Liner, t=0.3

$

$

Not available

15

Cub Cadet MA-08300500560

O-Ring

$

$

Not available

16

Cub Cadet MA-F1550110030

Bolt, w/washer

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet MA-27403214200

Plug

$

$

Not available

18

Cub Cadet MA-08331000800

Washer, Seal

$

$

Not available

21

Cub Cadet MA-19942131AG1

Case, Kingpin

$

$

Not available

22

Cub Cadet MA-08300200800

O-Ring

$

$

Not available

23

Cub Cadet MA-F1550112035

Bolt, w/Washer

$

$

Not available

Cub Cadet MA-A0520112035

Bolt

$

$

Not available

24

Cub Cadet MA-69542-64600

Bolt
(Superseded to MA-10322149000)

$

$

Not available

25

Cub Cadet MA-A3600101202

Washer, Spring

$

$

Not available

Cub Cadet MA-A3600101203

Washer, Spring

$

$

Not available

26

Cub Cadet MA-10312135001

Shaft

$

$

Not available

27

Cub Cadet MA-10312136000

Gear 18T

$

$

Not available

28

Cub Cadet MA-07500563054

Bearing, Ball

$

$

Not available

29

Cub Cadet MA-A0520110040

Bolt

$

$

Not available

30

Cub Cadet MA-A3030110002

Nut

$

$

Not available

31

Cub Cadet MA-10312138AG0

Holder, Arm

$

$

Not available

32

Cub Cadet MA-F1550110025

Bolt

$3.99

$

Usually ships in 3-6 days

0

33

Cub Cadet MA-07300006201

Liner, t=0.15

$

$

Not available

34

Cub Cadet MA-07300006202

Liner, t=0.2

$

$

Not available

35

Cub Cadet MA-07300006203

Liner, t=0.3

$

$

Not available
