7360 SS (590-603-100) - Cub Cadet Compact Tractor Axle, MFD Front - Diff Case Assembly Parts Diagram

Compact Tractor

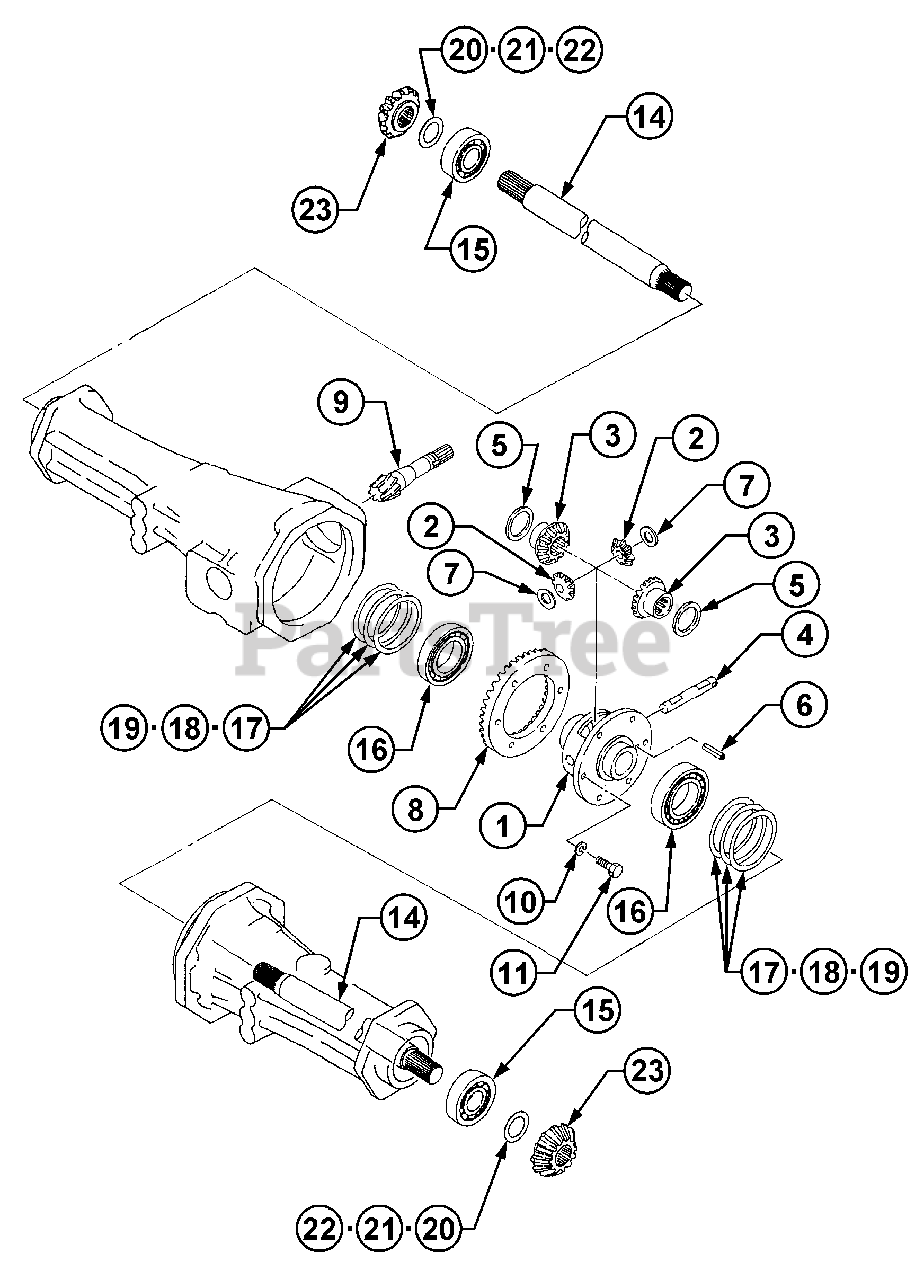

Axle, MFD Front - Diff Case Assembly Parts Diagram

  • Title

Cub Cadet MA-10312120002

Diff Case Assy

Note: (Incl. item(s) 1-11)

$

$

Not available

1

Cub Cadet MA-10312121000

Case, Diff

$580.99

$

Usually ships in 3-6 days

0

2

Cub Cadet MA-10191412000

Pinion, Mate

$

$

Not available

3

Cub Cadet MA-10191413000

Gear, Side

$

$

Not available

4

Cub Cadet MA-10191414000

Shaft, Pinion

$115.99

$

Usually ships in 3-6 days

0

5

Cub Cadet MA-10191416000

Washer, Thrust

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet MA-05500006040

Pin, Spring

$

$

Not available

7

Cub Cadet MA-10191415000

Washer

$

$

Not available

Cub Cadet MA-10312127002

6-35 Set

Note: (Incl. item(s) 8 & 9)

$

$

Not available

8

Gear, Ring

$

$

Not available

9

Shaft, Pinion

$

$

Not available

10

Cub Cadet MA-A3600101002

Washer, Spring

$

$

Not available

11

Cub Cadet MA-10312132000

Bolt

$

$

Not available

14

Cub Cadet MA-10312128000

Shaft, Diff.

$

$

Not available

15

Cub Cadet MA-07500063060

Bearing, Ball

$50.99

$

In Stock, only 2 left!

0

16

Cub Cadet MA-07500062100

Bearing, Ball

$

$

Not available

17

Cub Cadet MA-69542-60700

Liner, t=0.07

$

$

Not available

18

Cub Cadet MA-69542-60800

Liner, t=0.2

$

$

Not available

19

Cub Cadet MA-69542-60900

Liner, t=1.0

$

$

Not available

20

Cub Cadet MA-07310003001

Liner, t=0.15

$

$

Not available

21

Cub Cadet MA-07310003002

Liner, t=0.2

$

$

Not available

22

Cub Cadet MA-07310003003

Liner, t=0.3

$

$

Not available

23

Cub Cadet MA-10312129000

Gear 14T

$

$

Not available
