7360 SS (54A-458D100) - Cub Cadet Compact Tractor Rocker Cover & Camshaft Parts Diagram

Compact Tractor

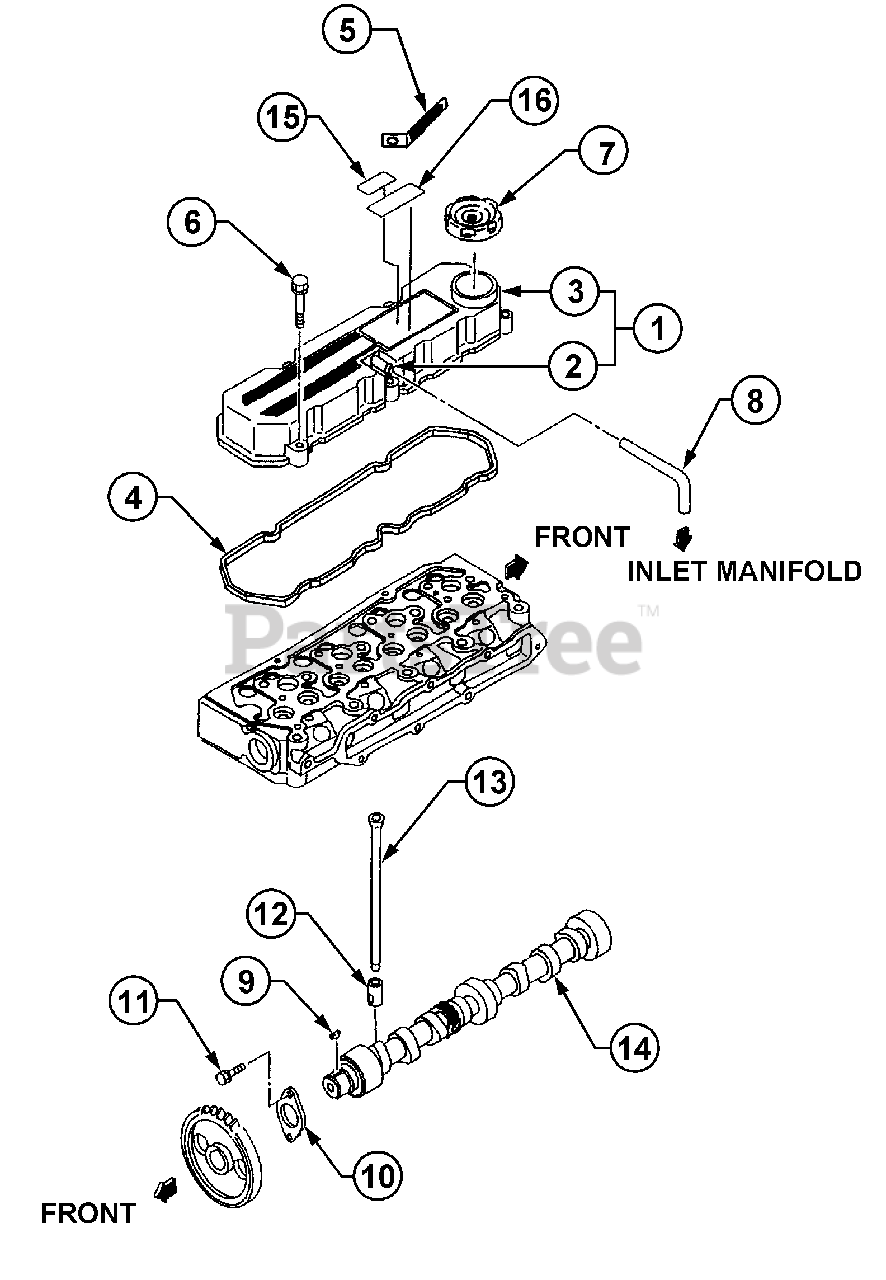

Rocker Cover & Camshaft Parts Diagram

  • Title

1

Cub Cadet MA-31A04-20030

Cover Assy, Rock

$

$

Not available

2

Pipe

$

$

Not available

3

Cover, Rocker

$

$

Not available

4

Cub Cadet MA-31A04-33202

Gasket, Cover

$

$

Not available

5

Cub Cadet MA-MS470059

Clip

$

$

Not available

6

Cub Cadet MA-F1540108040

Bolt, w/Washer

$

$

Not available

7

Cub Cadet MA-MD008784

Cap, Oil Filler

$

$

Not available

8

Cub Cadet MA-MM400380

Breather, Pipe

$

$

Not available

9

Cub Cadet MA-MF476215

Key, Woodruff

$

$

Not available

10

Cub Cadet MA-30405-31400

Plate, Thrust

$

$

Not available

11

Cub Cadet MA-F1805-08016

Bolt, w/Washer

$

$

Currently unavailable

12

Cub Cadet MA-MM402737

Tappet
(Superseded to MA-31A05-00300)

$25.99

$

In Stock, only 2 left!

0

13

Cub Cadet MA-31A05-01300

Rod, Push

$16.99

$

Usually ships in 3-6 days

0

14

Cub Cadet MA-31A05-00200

Camshaft
(Superseded to MA-31A05-00203)

$

$

Not available

15

Cub Cadet MA-31A04-06501

Label, Model

$

$

Not available

16

Label, Engine No.

$

$

Not available
