7360 SS (54A-458D100) - Cub Cadet Compact Tractor Oil System Parts Diagram

Compact Tractor

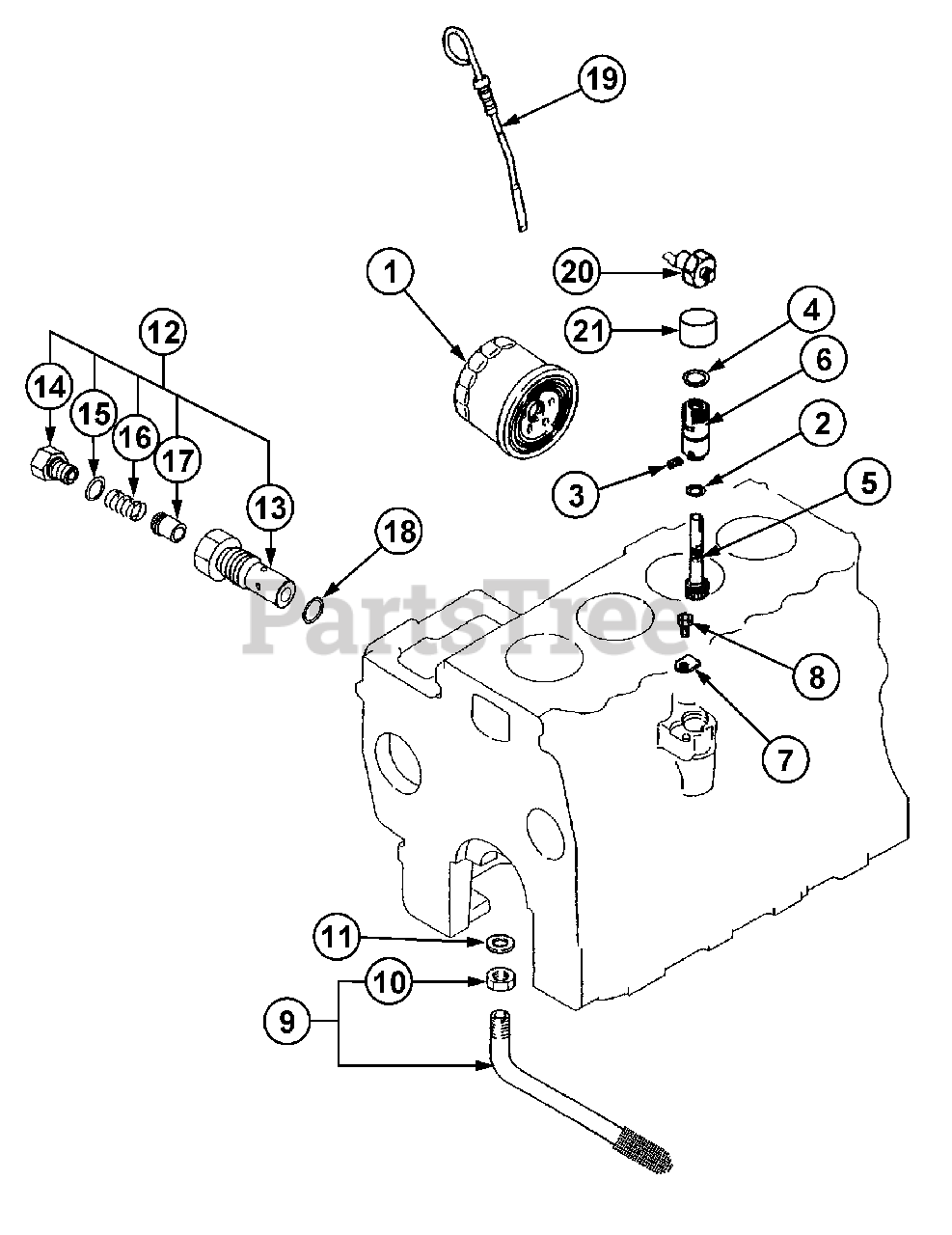

Oil System Parts Diagram

  • Title

1

Cub Cadet MA-MD134953

Filter Assy, Oil
(Superseded to MA-31A40-02101)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-MM430598

Driven Assy, Meter
(Superseded to MA-MM43059801)

Note: (Incl. item(s) 2-6)

$

$

Not available

2

Cub Cadet MA-MD701788

O-Ring

$

$

Not available

3

Cub Cadet MA-MF472535

Pin, Spring
(Superseded to MA-05500003014)

$

$

Not available

4

Cub Cadet MA-MF520012

O-Ring
(Superseded to MA-08300100180)

$

$

Not available

5

Cub Cadet MA-MM407171

Gear
(Superseded to MA-MM43059801)

$

$

Not available

6

Cub Cadet MA-MM430419

Sleeve

$

$

Not available

7

Cub Cadet MA-MD701789

Plate

$

$

Not available

8

Cub Cadet MA-F1440106012

Bolt, w/Washer

$

$

Not available

9

Cub Cadet MA-31A35-05050

Strainer Assy

$

$

Not available

10

Cub Cadet MA-MF430729

Nut, Jam

$

$

Not available

11

Cub Cadet MA-MF660036

Gasket

$

$

Not available

12

Cub Cadet MA-32A36-05010

Valve Assy, Relief

$

$

Not available

13

Housing, Valve

$

$

Not available

14

Plug

$

$

Not available

15

Gasket

$

$

Not available

16

Spring, Relief

$

$

Not available

17

Plunger, Relief

$

$

Not available

18

Cub Cadet MA-F4202-22000

Gasket

$

$

Not available

19

Cub Cadet MA-31A42-10100

Gear, Oil Level

$

$

Not available

20

Cub Cadet MA-31A90-00300

Switch, Oil Press

$

$

Not available

21

Plug, Shipping

Note: Not serviced

$

$

Not available
