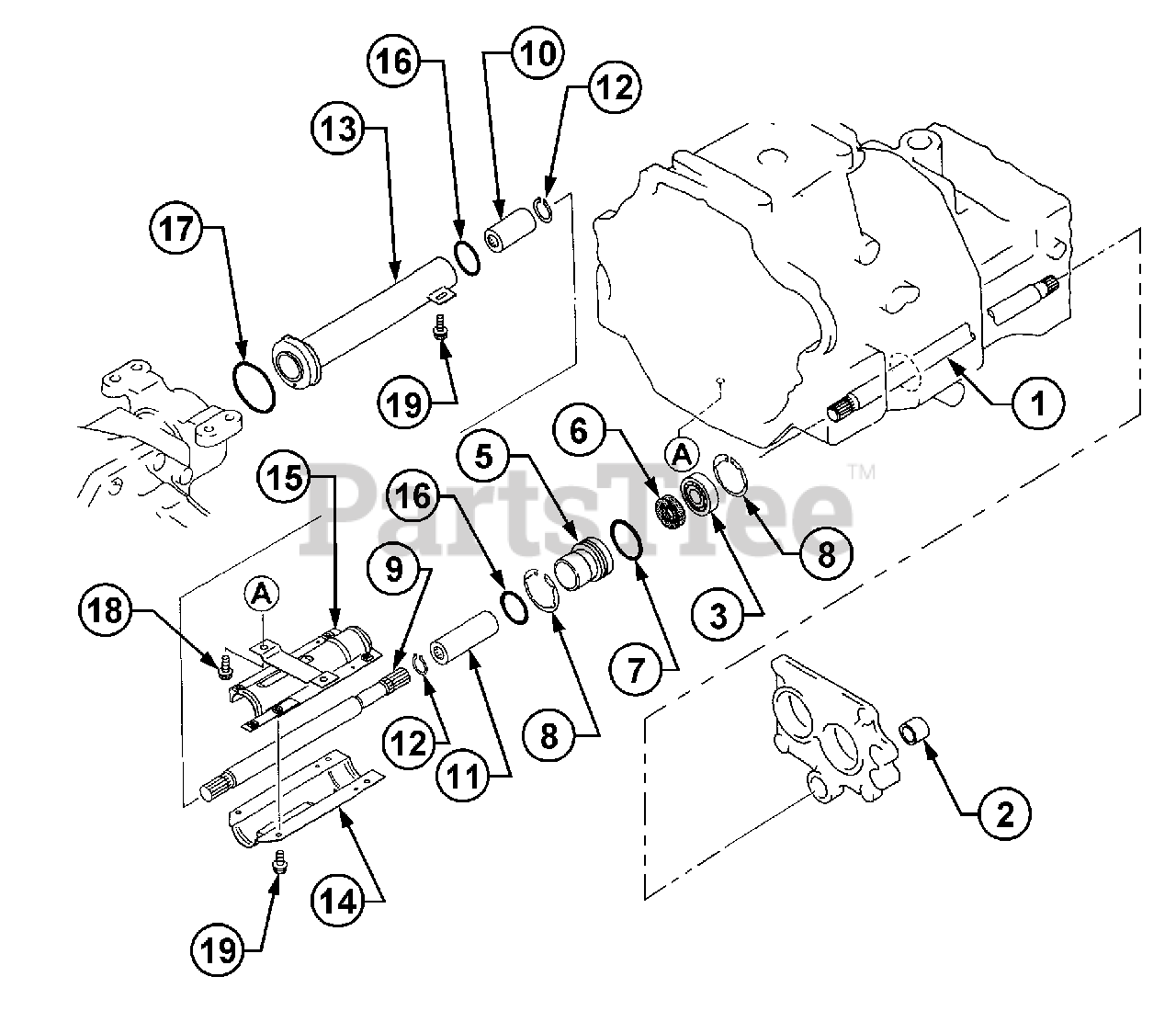

7360 SS (54A-458D100) - Cub Cadet Compact Tractor MFD P.T.O. - Shaft & Joint Parts Diagram

Compact Tractor

MFD P.T.O. - Shaft & Joint Parts Diagram

  • Title

1

Cub Cadet MA-19611904000

Shaft

$

$

Not available

2

Cub Cadet MA-07961025200

Bushing

$

$

Not available

3

Cub Cadet MA-07500062050

Bearing, Ball

$

$

Not available

5

Cub Cadet MA-10311927AG0

Sleeve

$

$

Not available

6

Cub Cadet MA-08401025408

Seal, Oil

$

$

Not available

7

Cub Cadet MA-08300100460

O-Ring

$

$

Not available

8

Cub Cadet MA-07410005201

C-Ring

$

$

Not available

9

Cub Cadet MA-10311939001

Shaft
(Superseded to MA-10311939AG1)

$

$

Not available

10

Cub Cadet MA-11761917000

Joint, Front
(Superseded to MA-11761917AG0)

$207.99

$

Usually ships in 3-6 days

0

11

Cub Cadet MA-10311929000

Joint
(Superseded to MA-10311929AG0)

$

$

Not available

12

Cub Cadet MA-07400002200

C-Ring

$

$

Not available

13

Cub Cadet MA-10311941AG0

Cover

$

$

Not available

14

Cub Cadet MA-10311932AG0

Cover A

$

$

Not available

15

Cub Cadet MA-10311933AG0

Cover B

$

$

Not available

16

Cub Cadet MA-08300100390

O-Ring

$

$

Not available

17

Cub Cadet MA-08300200650

O-Ring

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet MA-H1540108016

Bolt, w/Washer

$

$

Not available

19

Cub Cadet MA-H1440106016

Bolt, w/Washer

$3.49

$

Usually ships in 3-6 days

0
