7360 SS (54A-458D100) - Cub Cadet Compact Tractor Hydraulic Line & Block Parts Diagram

Compact Tractor

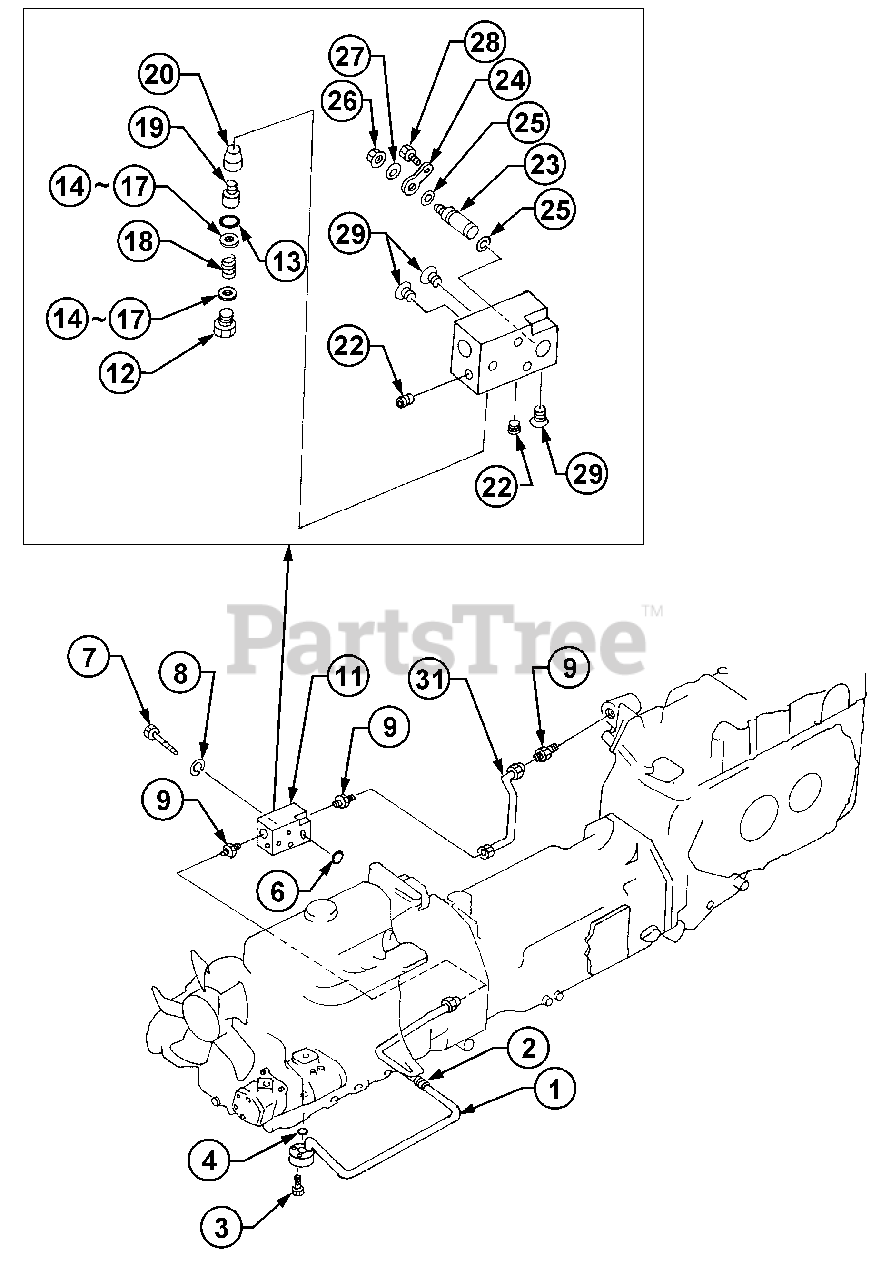

Hydraulic Line & Block Parts Diagram

  • Title

1

Cub Cadet MA-10372521AG2

Pipe D Assy

Note: Includes item 2

$

$

Not available

2

Cub Cadet MA-11802163000

Cushion

$

$

Not available

3

Cub Cadet MA-F1440106040

Bolt

$

$

Not available

4

Cub Cadet MA-08301100220

O-Ring

$

$

Not available

6

Cub Cadet MA-08301100220

O-Ring

$

$

Not available

7

Cub Cadet MA-A0540108070

Bolt

$

$

Not available

8

Cub Cadet MA-A3600100802

Washer

$

$

Not available

9

Cub Cadet MA-06203115210

Nipple

$

$

Not available

Cub Cadet MA-19612560AG0

Block Assy

Note: (Incl. item(s) 11-29)

$

$

Not available

11

Block

Note: Not available, furnish block assembly

$

$

Not available

12

Cub Cadet MA-10052405120

Plug

$

$

Not available

13

Cub Cadet MA-08300500180

O-Ring

$

$

Not available

Cub Cadet MA-08300500160

O-Ring

Note: Replaces MA-08300500180 when inventory is depleted.

$

$

Not available

14

Cub Cadet MA-10052405130

Shim, t=0.1

$

$

Not available

15

Cub Cadet MA-10052405140

Shim, t=0.3

$

$

Not available

16

Cub Cadet MA-10052405150

Shim, t=1.0

$

$

Not available

17

Cub Cadet MA-10052405160

Shim, t=2.0

$

$

Not available

18

Cub Cadet MA-10322418140

Spring

$

$

Not available

19

Cub Cadet MA-10052405180

Poppet

$

$

Not available

20

Cub Cadet MA-10052405191

Housing

$

$

Not available

22

Cub Cadet MA-A6010A01000

Plug, Taper

$

$

Not available

23

Cub Cadet MA-19612564000

Shaft

$

$

Not available

24

Cub Cadet MA-19632526000

Plate

$

$

Not available

25

Cub Cadet MA-08300100200

O-Ring

$

$

Not available

26

Cub Cadet MA-F3000106011

Nut, Flange

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet MA-03500141022

Washer

$

$

Not available

28

Cub Cadet MA-F1540108016

Bolt, w/Washer

$

$

Not available

29

Cub Cadet MA-60001014000

Plug

$

$

Not available

31

Cub Cadet MA-10372526AG1

Pipe Delivery

$

$

Not available
