7360 SS (54A-458D100) - Cub Cadet Compact Tractor Fender & Step Parts Diagram

Compact Tractor

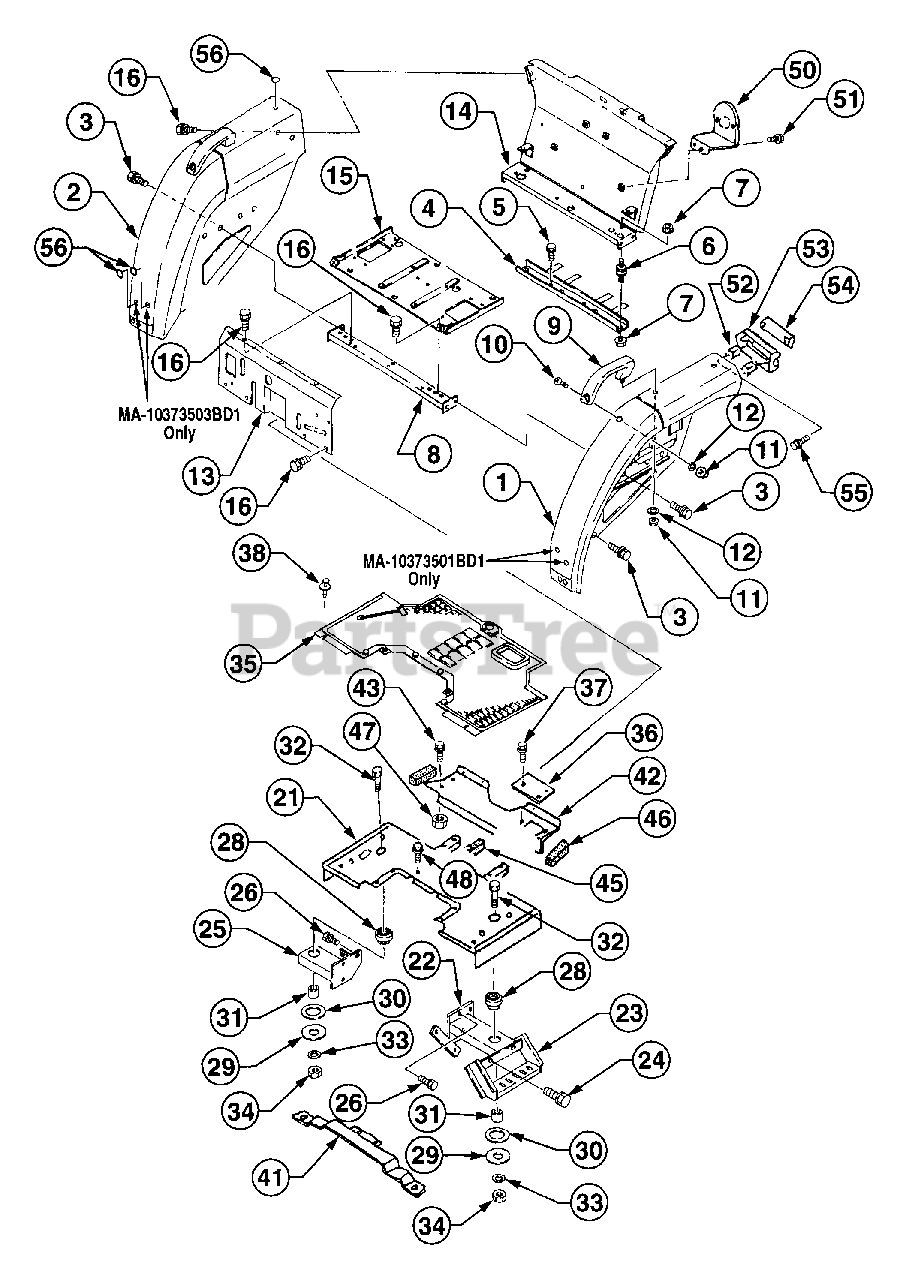

Fender & Step Parts Diagram

  • Title

1

Cub Cadet MA-10373501BD1

Fender L.H.

$

$

Not available

Cub Cadet MA-19613501BD0

Fender L.H.

Note: Replaces MA-10373501BD1 when inventory is depleted.

$

$

Currently unavailable

2

Cub Cadet MA-10373503BD1

Fender R.H.

$

$

Not available

Cub Cadet MA-19613503BD0

Fender R.H.

Note: Replaces MA-10373503BD1 when inventory is depleted.

$

$

Currently unavailable

3

Cub Cadet MA-H1540108020

Bolt

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet MA-10373504AG0

Bracket

$

$

Not available

5

Cub Cadet MA-F1550110020

Bolt

$

$

Not available

6

Cub Cadet MA-10263526000

Cushion

$

$

Not available

7

Cub Cadet MA-F3030110000

Nut

$

$

Not available

8

Cub Cadet MA-10373505AG0

Support, Fender

$

$

Not available

9

Cub Cadet MA-10363508000

Grip, Assist

$

$

Not available

10

Cub Cadet MA-A2520706020

Screw

$

$

Not available

11

Cub Cadet MA-F3000106000

Nut

$

$

Not available

12

Cub Cadet MA-03500150622

Washer

$

$

Not available

13

Cub Cadet MA-19613511AG0

Cover, Front

$

$

Not available

14

Cub Cadet MA-10373514BD2

Cover, Center

$

$

Not available

15

Cub Cadet MA-19613519AG0

Cover, Upper

$

$

Not available

16

Cub Cadet MA-F0500408016

Bolt

$

$

Not available

21

Cub Cadet MA-10375241BD1

Step

$

$

Not available

22

Cub Cadet MA-19613521AG0

Bracket L.H.,Step

$

$

Not available

23

Cub Cadet MA-19613523AG0

Step, Sub

$

$

Not available

24

Cub Cadet MA-F1550110025

Bolt

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet MA-10373571AG1

Bracket R.H.,Step

$

$

Not available

26

Cub Cadet MA-F1540112035

Bolt

$

$

Not available

28

Cub Cadet MA-10353525000

Mount

$

$

Not available

29

Cub Cadet MA-10353528000

Washer

$

$

Not available

30

Cub Cadet MA-10353529000

Washer

$

$

Not available

31

Cub Cadet MA-19633915000

Collar

$

$

Not available

32

Cub Cadet MA-A0540116070

Bolt

$

$

Not available

33

Cub Cadet MA-03550161630

Washer

$

$

Not available

34

Cub Cadet MA-A3010116002

Nut

$

$

Not available

35

Cub Cadet MA-19613556000

Mat, Step

$

$

Not available

36

Cub Cadet MA-10373532BD0

Plate

$

$

Not available

37

Cub Cadet MA-H1440106016

Bolt

$3.49

$

Usually ships in 3-6 days

0

38

Cub Cadet MA-10353548000

Clip

$

$

Not available

41

Cub Cadet MA-10375226AG0

Bracket

$

$

Not available

42

Cub Cadet MA-10375242BD1

Step, Center

$

$

Not available

43

Cub Cadet MA-H1540108025

Bolt

$

$

Not available

45

Cub Cadet MA-10375243000

Cushion, Rubber

$

$

Not available

46

Cub Cadet MA-10375244000

Cushion, Rubber

$

$

Not available

47

Cub Cadet MA-A3010108002

Nut

$

$

Not available

48

Cub Cadet MA-H1540108020

Bolt

$3.49

$

Usually ships in 3-6 days

0

50

Cub Cadet MA-19613531BD0

Bracket, Tail Lamp

$

$

Not available

51

Cub Cadet MA-H1540108016

Bolt

$

$

Not available

52

Cub Cadet MA-19613533000

Nut

$

$

Not available

53

Cub Cadet MA-10302805000

Case, Lamp

$

$

Not available

54

Cub Cadet MA-19643531AG0

Bracket

$

$

Not available

55

Cub Cadet MA-H1440106012

Bolt

$3.49

$

In Stock, only 1 left!

0

56

Cub Cadet MA-19613597000

Mark, y

Note: Use Qty. 3 (ea.) with Fenders MA-10373501BD1 and MA-10373503BD1

$

$

Not available
