7360 SS (54A-458D100) - Cub Cadet Compact Tractor Cylinder Head Parts Diagram

Compact Tractor

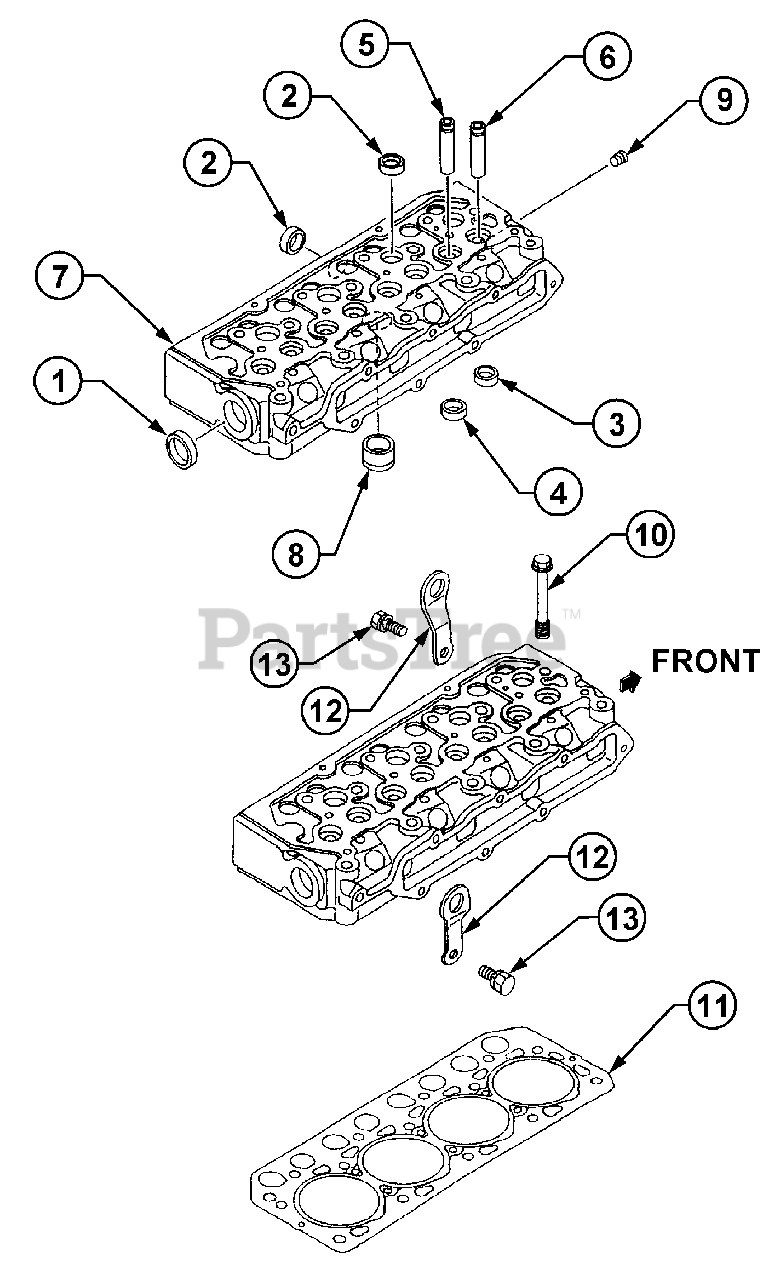

Cylinder Head Parts Diagram

  • Title

Cub Cadet MA-31A01-51040

Head Assy, Cyl
(Superseded to MA-31A01-51043)

Note: (Incl. item(s) 1-9)

$2983.99

$

Usually ships in 3-6 days

0

Head Sub Assy

Note: (Incl. item(s) 1-8)

$

$

Not available

1

Cub Cadet MA-MD000245

Cap, Sealing
(Superseded to MA-F5014-35000)

$

$

Not available

2

Cub Cadet MA-MF665538

Cap, Sealing
(Superseded to MA-F5014-25000)

$

$

Not available

3

Valve Seat In

$

$

Not available

4

Valve Seat Ex

$

$

Not available

5

Cub Cadet MA-31A01-02500

Valve Guide Ex

$57.99

$

Usually ships in 3-6 days

0

6

Cub Cadet MA-31A01-02600

Valve Guide In

$

$

Not available

7

Cylinder Head

$

$

Not available

8

Cub Cadet MA-31A03-01500

Jet, Combustion

$

$

Not available

9

Cub Cadet MA-MS661140

Plug, Taper

$

$

Not available

10

Cub Cadet MA-31A01-11100

Bolt, Head
(Superseded to MA-31A01-21100)

$

$

Not available

11

Cub Cadet MA-31A01-33300

Gasket, Head

$241.99

$

Usually ships in 3-6 days

0

12

Cub Cadet MA-MM408470

Hanger, Engine

$

$

Not available

13

Cub Cadet MA-MF241280

Bolt, w/Washer

$

$

Not available
