73590 (523 Dxi) - Toro Garden Tractor (SN: 240000001 - 240999999) (2004) SMART TURN REAR ASSEMBLY Parts Diagram

Garden Tractor

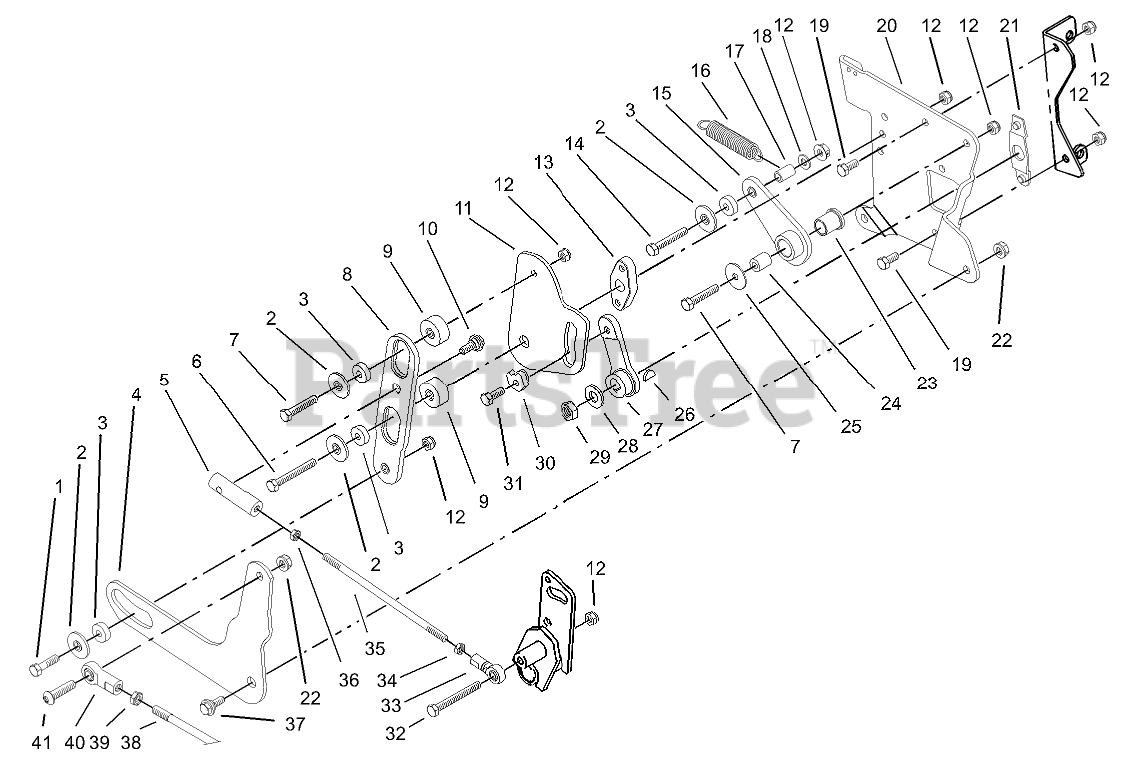

SMART TURN REAR ASSEMBLY Parts Diagram

  • Title
1

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

2

Toro 94-2313

RETAINER-BEARING

$

$

Not available

3

Toro 95-4185

BEARING-BALL

$

$

Not available

4

Toro 95-3801-03

SLIDER-LIFT

$

$

Not available

5

Toro 94-7637

END-ROD, RH

$

$

Not available

6

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

7

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

8

Toro 94-2144

SLIDER-CONTROL, SPEED

$

$

Not available

9

Toro 94-2169

STANDOFF-CAM PLATE

$

$

Not available

10

Toro 94-7817

BOLT-SHOULDER

$16.99

$

Usually ships in 3-6 days

0

11

Toro 94-2145

PLATE-CAM

$89.99

$

Usually ships in 3-6 days

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 94-2168

STANDOFF-SLIDER

$

$

Not available

14

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 94-7586

ARM-RETURN TO NEUTRAL

$

$

Not available

16

Toro 63-1590

SPRING-IDLER

$20.99

$

In Stock, Qty 6

0

17

Toro 94-2309

STANDOFF-SPRING

$

$

Not available

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 99-8053-03

PLATE-CONTROL

$

$

Not available

21

Toro 94-7814

LOCATOR-CONTROL PLATE

$

$

Not available

22

$6.49

$

In Stock, only 2 left!

0

23

Toro 94-7913

BUSHING-FLANGED

$

$

Not available

24

Toro 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

25

Toro 3256-57

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

26

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

27

Toro 94-7816

ARM-CONTROL, SPEED

$

$

Not available

28

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

30

$93.99

$

Usually ships in 3-6 days

0

31

Toro 95-4245

SCREW-THREAD LOCKING

$

$

Not available

32

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

33

Toro 94-7571

END-ROD, RH

$85.99

$

Usually ships in 3-6 days

0

34

Toro 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

35

Toro 94-2497

ROD-SLIDER TO PIVOT

$

$

Not available

36

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

37

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, Qty 12

0

38

Toro 94-7500

ROD-LIFT

$

$

Not available

39

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

40

Toro 92-7008

END-ROD, FEMALE

$52.99

$

Usually ships in 3-6 days

0

41

Toro 95-3857

SCREW-HSBH

$4.49

$

Usually ships in 3-6 days

0
