73590 (523 Dxi) - Toro Garden Tractor (SN: 240000001 - 240999999) (2004) PARKING BRAKE UPPER ASSEMBLY Parts Diagram

Garden Tractor

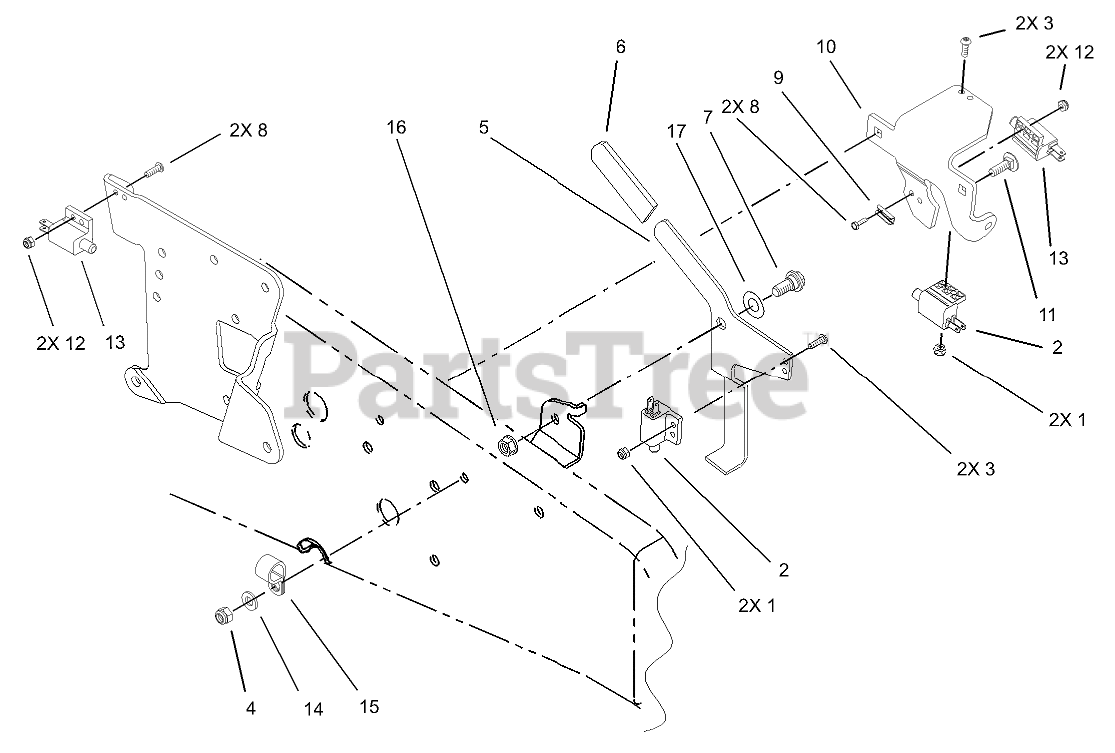

PARKING BRAKE UPPER ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$19.99

$

In Stock, Qty 20+

0

3

Toro 3274-14

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 94-2157-03

LATCH-BRAKE, PARKING

$

$

Not available

6

$2.49

$

Usually ships in 3-6 days

0

7

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, only 2 left!

0

8

Toro 99-8128

Screw

$

$

Not available

9

Toro 94-7905

RETAINER-SCREW

$

$

Not available

10

Toro 94-7562-03

BRACKET-SWITCH

$

$

Not available

11

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

12

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

13

Toro 95-1653

SWITCH-POLE, SINGLE

$20.99

$

Usually ships in 3-6 days

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 98-2358

CLAMP - R

$

$

Not available

16

$6.49

$

In Stock, only 2 left!

0

17

Toro 98-3087

WASHER

$

$

Not available
