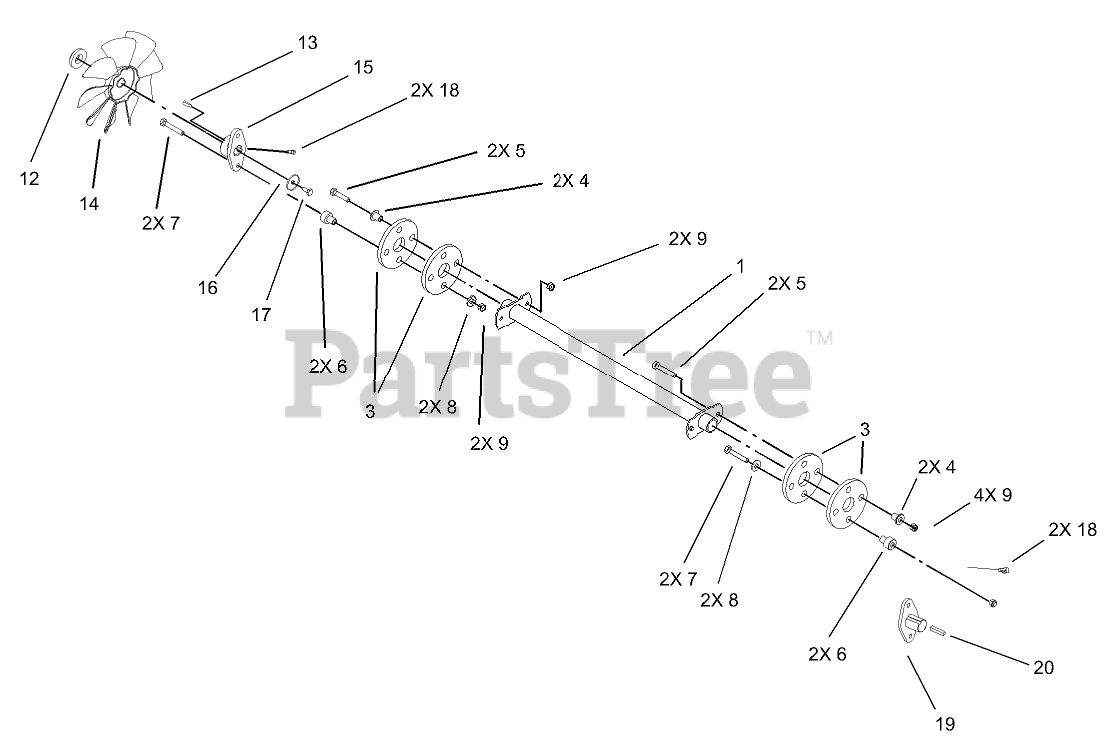

73590 (523 Dxi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) DRIVE SHAFT ASSEMBLY Parts Diagram

Garden Tractor

DRIVE SHAFT ASSEMBLY Parts Diagram

  • Title
1

Toro 94-2373-03

SHAFT-DRIVE

$

$

Not available

3

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$56.99

$

In Stock, Qty 20+

0

4

Toro 71-4411

SPACER

$2.99

$

In Stock, only 3 left!

0

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 71-4410

SPACER

$7.49

$

In Stock, only 2 left!

0

7

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

8

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 94-2371

SPACER-FAN

$

$

Not available

13

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

14

Toro 95-4223

FAN-HYDRO

$

$

Not available

15

$

$

Not available

16

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

17

Toro 94-7955

SCREW-HH

$

$

Not available

18

Toro 94-7975

SCREW-SET

$

$

Not available

19

Toro 94-7893

WA - PIN DRIVE

$

$

Not available

20

$

$

Not available
