73590 (523 Dxi) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) POWER STEERING & TILT ASSEMBLY Parts Diagram

Garden Tractor

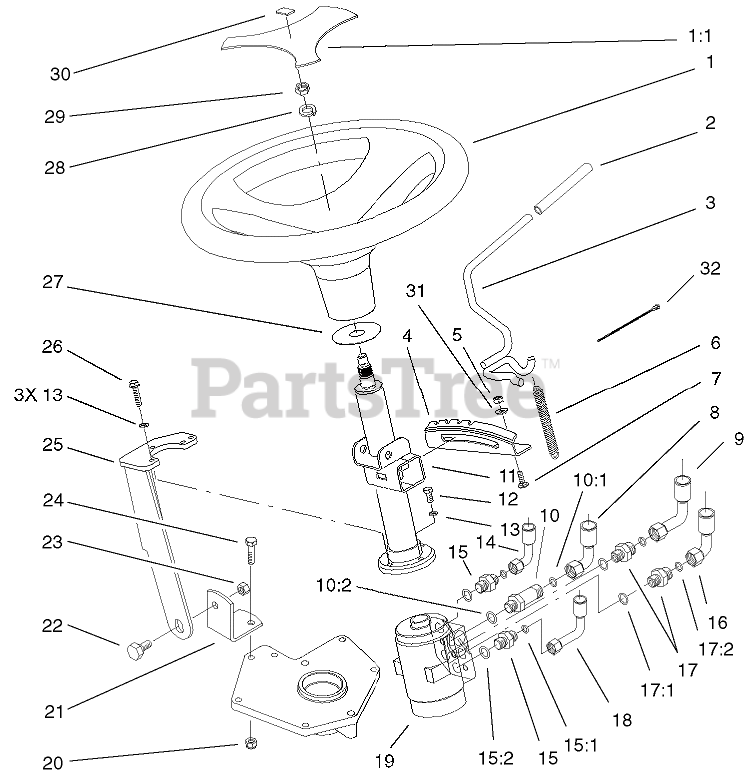

POWER STEERING & TILT ASSEMBLY Parts Diagram

  • Title
1

Toro 98-1474

WHEEL-STEERING

$

$

Not available

1:1

Toro 98-1468

COVER-WHEEL, STEERING

$18.99

$

In Stock, only 1 left!

0

2

Toro 92-6798

CAP-ROD, TILT

$4.99

$

In Stock, only 2 left!

0

3

Toro 95-3964

LEVER-TILT

$

$

Not available

4

Toro 94-2382

BRACKET-DETENT

$24.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 95-3805

SPRING

$14.99

$

In Stock, Qty 7

0

7

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

8

Toro 94-7947

HOSE ASM

$

$

Not available

9

Toro 94-7949

HOSE-ASM

$

$

Not available

10

Toro 95-4137

FITTING-HYD, LONG

$64.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

10:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

11

Toro 94-2451

COLUMN-POWER

$

$

Not available

12

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

13

Toro 48-8020

WASHER-SPRING

$1.49

$

Usually ships in 3-6 days

0

14

Toro 94-7948

HOSE ASM

$

$

Not available

15

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-35

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

15:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

16

Toro 95-3807

HOSE ASM

$

$

Not available

17

Toro 95-4138

FITTING-HYD. STRAIGHT
(Superseded to 340-2)

$12.99

$

In Stock, only 2 left!

0

17:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

17:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

18

Toro 94-7946

HOSE ASM

$

$

Not available

19

Toro 94-7567

CONTROL UNIT-POWER STEERING

$

$

Not available

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 94-7599-03

Bracket-Pivot
(Superseded to 94-7599)

$

$

Not available

22

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, Qty 12

0

23

$6.49

$

In Stock, only 2 left!

0

24

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

25

Toro 94-7521-03

Pivot-Power String

$

$

Not available

26

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

27

Toro 94-2025

WASHER-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

28

Toro 69-8420

WASHER-LOCK

$1.99

$

Usually ships in 3-6 days

0

29

Toro 95-4182

NUT-HH, JAM

$3.99

$

Usually ships in 3-6 days

0

30

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0

31

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0
