73590 (523 Dxi) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) ENGINE ASSEMBLY Parts Diagram

Garden Tractor

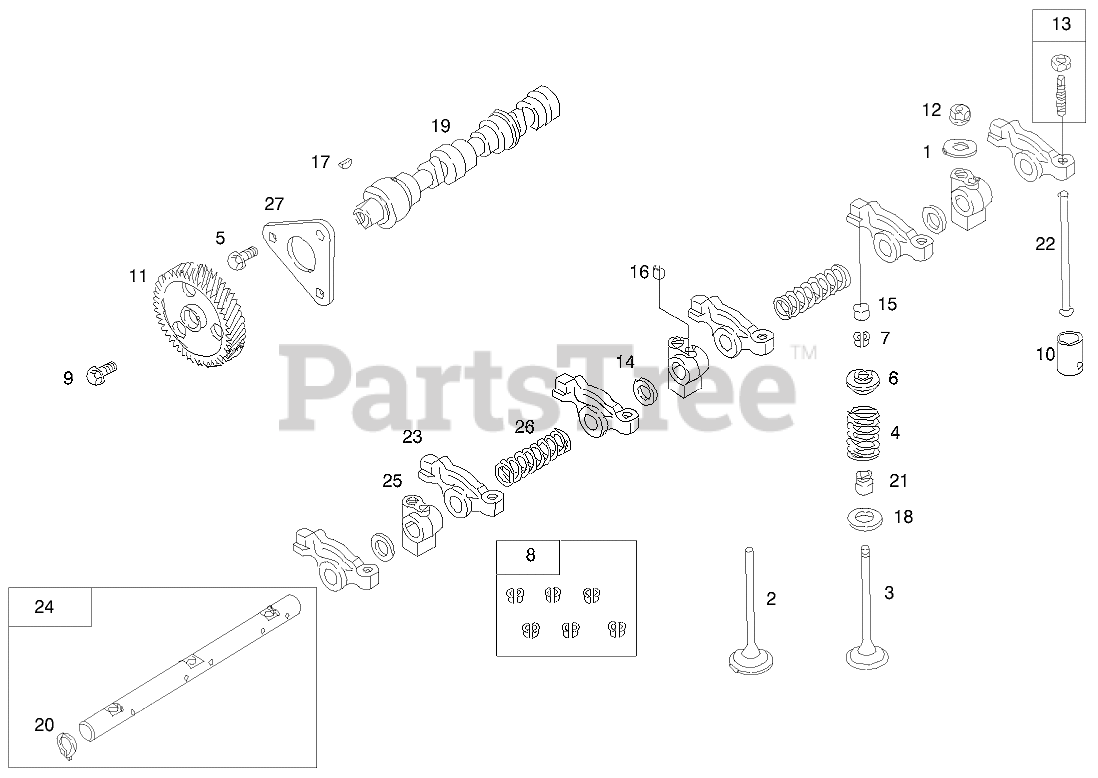

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 99-9079

WASHER-FLAT

$15.99

$

Usually ships in 3-6 days

0

2

Toro 99-9638

VALVE-EXHAUST

$

$

Not available

3

Toro 99-9639

VALVE-INTAKE

$

$

Not available

4

Toro 99-9640

SPRING-VALVE

$12.99

$

Usually ships in 3-6 days

0

4

Toro 100-5222

NIPPLE ASM

$

$

Not available

5

Toro 99-9083

SCREW-HEX

$15.99

$

Usually ships in 3-6 days

0

5

Toro 100-5230

VALVE ASM

$

$

Not available

6

Toro 99-9084

RETAINER-VALVE

$18.99

$

Usually ships in 3-6 days

0

7

Toro 99-9086

KEEPER-VALVE (SET)

$23.99

$

Usually ships in 3-6 days

0

8

Toro 99-9087

KEEPER-VALVE (SET OF 6)
(Superseded to 99-9086)

$23.99

$

Usually ships in 3-6 days

0

9

Toro 99-9085

SCREW-METRIC

$17.99

$

Usually ships in 3-6 days

0

9

Toro 99-9667

GASKET-SET

$586.99

$

Usually ships in 3-6 days

0

10

Toro 99-9088

TAPPET-VALVE

$51.99

$

Usually ships in 3-6 days

0

11

Toro 99-9641

GEAR-CAM

$

$

Not available

12

Toro 99-9091

NUT-HEX, METRIC

$15.99

$

Usually ships in 3-6 days

0

13

Toro 99-9092

ADJUSTER-ARM, ROCKER

$15.99

$

Usually ships in 3-6 days

0

14

Toro 99-9093

WASHER-SPACER

$17.99

$

Usually ships in 3-6 days

0

14

Toro 99-9668

VALVE OVERHAUL KIT

$337.99

$

Usually ships in 3-6 days

0

15

Toro 99-9094

CAP-VALVE

$

$

Not available

15

Toro 99-9039

SHAFT-GEAR

$

$

Not available

16

Toro 99-9090

SCREW-METRIC

$20.99

$

Usually ships in 3-6 days

0

17

Toro 99-9642

KEY-TIMING

$

$

Not available

18

Toro 99-9096

SEAT-SPRING, VALVE

$17.99

$

Usually ships in 3-6 days

0

19

Toro 99-9097

SHAFT-CAM

$

$

Not available

20

Toro 99-9099

RETAINER

$18.99

$

Usually ships in 3-6 days

0

21

Toro 99-9643

SEAL-VALVE

$20.99

$

Usually ships in 3-6 days

0

22

Toro 99-9103

ROD-PUSH

$34.99

$

Usually ships in 3-6 days

0

23

Toro 99-9104

ARM-ROCKER

$145.99

$

Usually ships in 3-6 days

0

24

Toro 99-9106

SHAFT-ARM, ROCKER

$

$

Not available

25

Toro 99-9107

SUPPORT-ARM, ROCKER

$44.99

$

Usually ships in 3-6 days

0

26

Toro 99-9108

SPRING-SHAFT, ROCKER

$9.99

$

Usually ships in 3-6 days

0

27

Toro 99-9109

RETAINER-CAMSHAFT

$69.99

$

Usually ships in 3-6 days

0
