73590 (523 Dxi) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) ELECTRICAL 23HP ASSEMBLY Parts Diagram

Garden Tractor

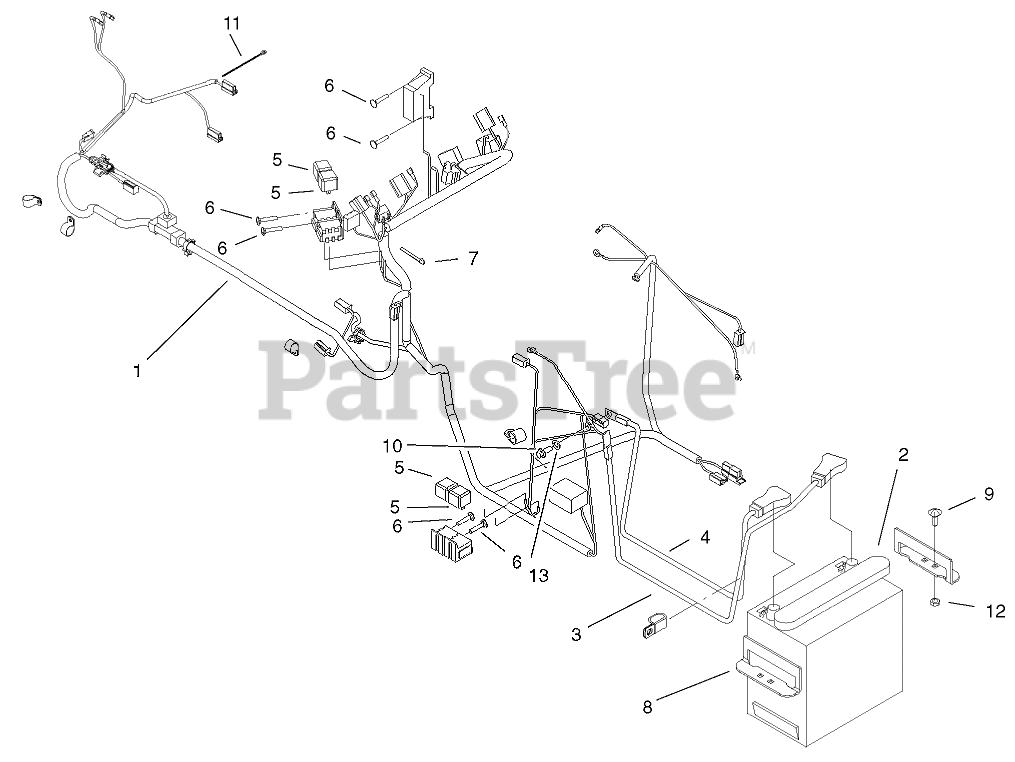

ELECTRICAL 23HP ASSEMBLY Parts Diagram

  • Title
1

Toro 99-3725

Harness-Main

$

$

Not available

2

Toro 94-7622

BATTERY - 495CCA

$

$

Not available

3

Toro 95-7852

CABLE - BATTERY,RED

$

$

Not available

4

Toro 95-7853

CABLE - BATTERY,

$

$

Not available

5

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 6

0

6

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

7

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

8

Toro 98-3497

HOLD - DOWN, BATTERY

$

$

Not available

9

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

10

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

Toro NN10277

FUSE-30 AMP

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

Toro 218-578

FUSE-BLADE, 10 AMP

Note: Not illustrated

$2.99

$

In Stock, Qty 6

0

Toro 109355

FUSE-BLADE, 15 AMP

Note: Not illustrated

$3.49

$

In Stock, only 1 left!

0
