73590 (523 Dxi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) FENDER & FUEL SYSTEM ASSEMBLY Parts Diagram

Garden Tractor

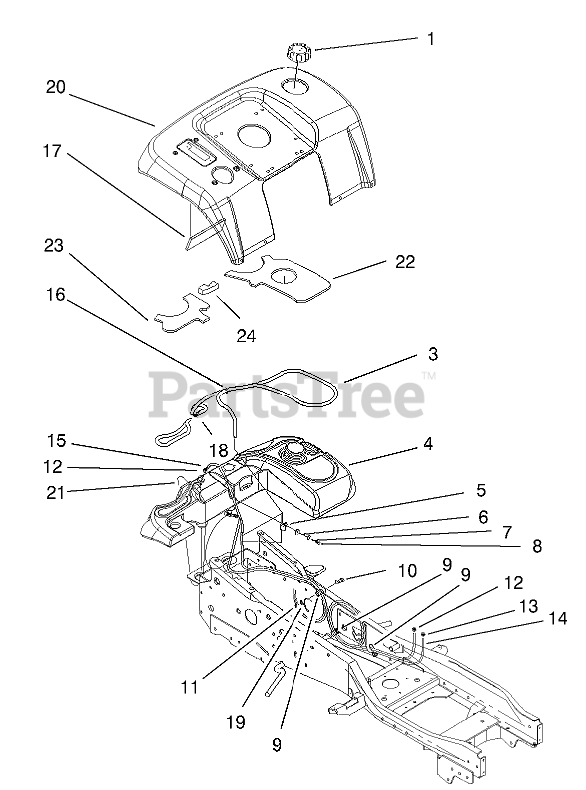

FENDER & FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 95-4193

DIESEL FUEL CAP ASM

$54.99

$

Usually ships in 3-6 days

0

2

Toro 95-4270

Tape-3m

$

$

Not available

3

Toro 99-8553

HOSE-VENT

$

$

Not available

4

Toro 99-6142

TANK-DIESEL ASSY. (SERVICE)

$815.99

$

Usually ships in 3-6 days

0

5

Toro 95-4187

CLAMP-TUBE
(Superseded to 119-8153)

$2.99

$

Usually ships in 3-6 days

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 98-1617

CLAMP-TUBE

$

$

Not available

10

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

13

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

14

Toro 99-9682

Hose-Fuel (Service)
(Superseded to 110-6184)

$67.99

$

Usually ships in 3-6 days

0

15

Toro 99-9683

HOSE-FUEL (SERVICE)
(Superseded to 95-4280)

$

$

Not available

16

Toro 94-8189

CLAMP-HOSE
(Superseded to 2412-146)

$1.99

$

In Stock, Qty 10

0

17

Toro 95-4157

FOAM-TANK CENTER

$

$

Not available

18

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 98-7208

REAR BODY ASM

$

$

Not available

21

Toro 99-5901

TIE-CABLE

$

$

Not available

22

Toro 99-6145

FOAM-TANK

$

$

Not available

23

Toro 99-6146

FOAM-TANK

$

$

Not available

24

Toro 99-6887

FOAM-TANK TOP

$

$

Not available
