73590 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) FENDER, FOOTREST & SEAT ASSEMBLY Parts Diagram

Garden Tractor

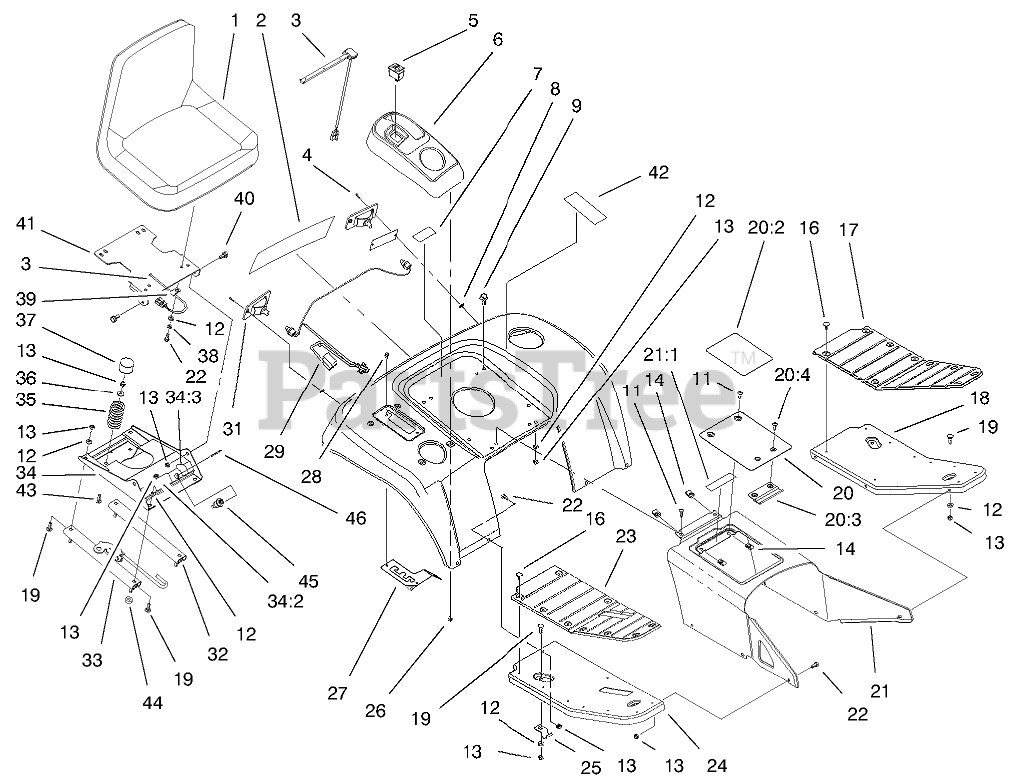

FENDER, FOOTREST & SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 94-3518

SEAT
(Superseded to 98-1625)

$

$

Not available

2

Toro 95-4262

DECAL - FENDER

$

$

Not available

3

Toro 38-1420

SWITCH-SEAT

$

$

Not available

4

Toro 3250-29

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 94-7602

SWITCH-CRUISE

$

$

Not available

6

Toro 94-2120

Pod-Control (Only On: 73552)

$

$

Not available

6

Toro 95-4000

Pod-Control Int-l (Only On: 73590)

$206.99

$

Usually ships in 3-6 days

0

7

Toro 76-1340

Decal-USA (Only On: 73552)

$16.99

$

In Stock, only 1 left!

0

8

Toro 95-4115

NUT-SPEED

$2.49

$

Usually ships in 3-6 days

0

9

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

11

Toro 92-7020

SCREW-HH

$

$

Not available

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

16

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

17

Toro 94-2096

PAD-FOOTREST, LH

$

$

Not available

18

Toro 94-2090-01

FOOTREST-LH

$164.99

$

Usually ships in 3-6 days

0

19

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

20

Toro 99-6089

ASM Cover/Decal (Only On: 73552)

$

$

Not available

20

Toro 98-1623

ASM-Tunnel Cover Europe (Only On: 73590)

$

$

Not available

20:2

Toro 99-6090

Decal-Danger (Only On: 73552)

$

$

Not available

20:2

Toro 98-1608

Decal-Danger Europe (Only On: 73590)

$

$

Not available

20:3

Toro 95-4107

RETAINER-COVER

$

$

Not available

20:4

Toro 32104-123

Screw-Plastite (Only On: 73552)

$

$

Not available

20:4

Toro 94-4496

Screw-Pan Hd (Only On: 73590)

$1.49

$

In Stock, Qty 20+

0

21

Toro 98-5025

ASM-Tunnel w/Decal (Only On: 73552)

$

$

Not available

21

Toro 98-5058

ASM-Tunnel w/Decal Europe (Only On: 73590)

$

$

Not available

21:1

Toro 80-8760

Decal-Danger (Only On: 73552)

$

$

Not available

21:1

Toro 98-5015

Decal-Warning (Only On: 73590)

$

$

Not available

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

23

Toro 94-2095

PAD-FOOTREST, RH

$

$

Not available

24

Toro 94-2089-01

FOOTREST-RH

$

$

Not available

25

Toro 95-3858

BRACKET-FOOTREST

$

$

Not available

26

Toro 32144-20

SCREW-HHFTF

$2.99

$

In Stock, only 4 left!

0

27

Toro 98-8711-03

GATE-HI / LO SHIFT

$

$

Not available

28

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

29

Toro 99-3726

HARNESS-REAR

$

$

Not available

31

Toro 94-2124

LAMP-TAILLIGHT

$

$

Not available

32

Toro 94-2112

SLIDE-SLAVE, SEAT

$

$

Not available

33

Toro 94-2177

SLIDE-LATCH, SEAT

$303.99

$

Usually ships in 3-6 days

0

34

Toro 99-6098

Seat Base ASM (Only On: 73552)

$142.99

$

Usually ships in 3-6 days

0

34

Toro 99-6099

Seat Base ASM-Intl (Only On: 73590)

$

$

Not available

34:2

Toro 99-2985

Decal-Danger (Only On: 73552)

$

$

Not available

34:3

Toro 99-5339

Decal-Nmir Switch (Only On: 73552)

$

$

Not available

35

Toro 94-2106-03

SPRING-COMPRESSION

$25.99

$

Usually ships in 3-6 days

0

36

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

37

Toro 95-4242

CAP-SPRING, SEAT

$

$

Not available

38

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

Toro 98-2390

CLAMP-R

$

$

Not available

40

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

41

Toro 94-2111-03

Mount-Seat
(Superseded to 94-2111)

$

$

Not available

42

Toro 98-3088

DECAL - DIESEL

$11.99

$

Usually ships in 3-6 days

0

43

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

44

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

45

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

Usually ships in 3-6 days

0

46

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0
