73590 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY (SERIAL NO. 99000001 & UP)(MODEL 73552) ENGINE ASSEMBLY (SERIAL NO. 99001001 & UP)(MODEL 73590) Parts Diagram

Garden Tractor

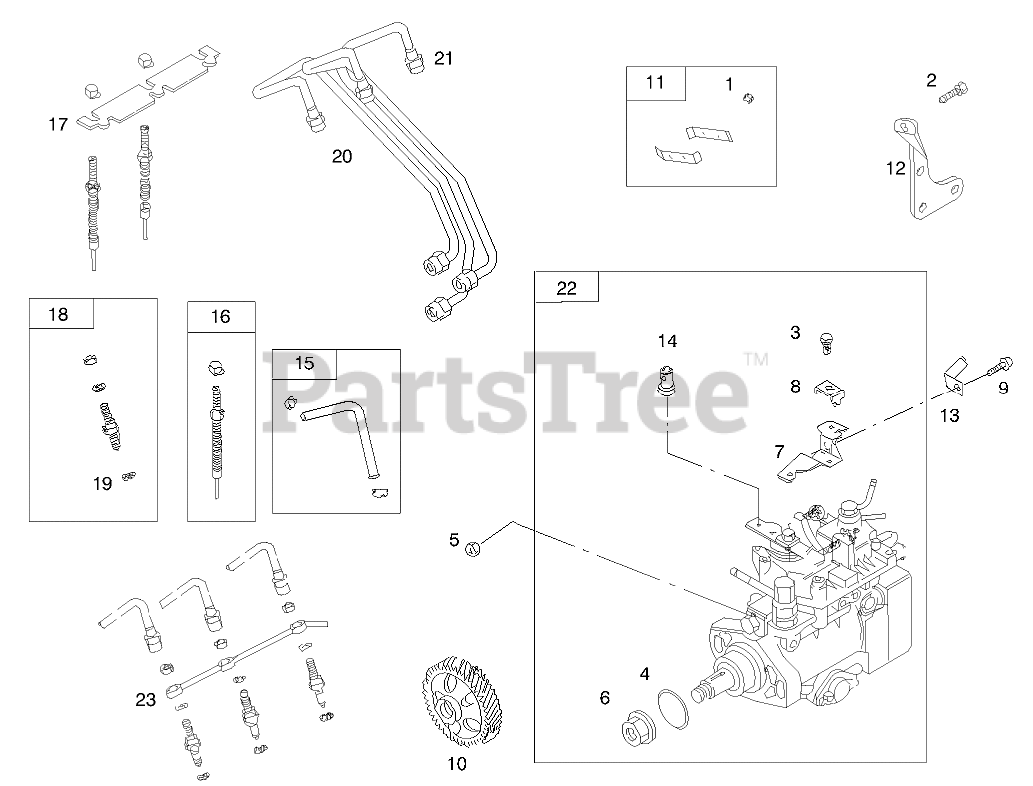

ENGINE ASSEMBLY (SERIAL NO. 99000001 & UP)(MODEL 73552) ENGINE ASSEMBLY (SERIAL NO. 99001001 & UP)(MODEL 73590) Parts Diagram

  • Title

1

Toro 99-9004

SCREW-HEX

$

$

Not available

2

Toro 99-9616

SCREW-HEX

$

$

Not available

3

Toro 99-9617

Screw-Metric
(Superseded to 99-9056)

$50.99

$

Usually ships in 3-6 days

0

4

Toro 99-9618

O-RING

$

$

Not available

5

Toro 99-9619

NUT-HEX, METRIC

$

$

Not available

6

Toro 99-9620

NUT-HEX, METRIC

$

$

Not available

7

Toro 99-9621

BRACKET-CLAMP, CASING

$

$

Not available

8

Toro 99-9622

Clamp-Casing
(Superseded to 99-9194)

$6.49

$

Usually ships in 3-6 days

0

8

Toro 99-9157

SWITCH-TEMPERATURE, WATER

$89.99

$

Usually ships in 3-6 days

0

9

Toro 99-9623

SCREW-HEX

$

$

Not available

9

Toro 99-9667

GASKET-SET

$621.99

$

Usually ships in 3-6 days

0

10

Toro 99-9624

GEAR-DRIVE

$

$

Not available

11

Toro 99-9625

CLAMP

$

$

Not available

12

Toro 99-9626

BRACKET-SUPPORT

$

$

Not available

13

Toro 99-9627

Bracket-Support
(Superseded to 99-9647)

$30.99

$

In Stock, Qty 16

0

14

Toro 99-9628

CLAMP-SWIVEL

$22.99

$

Usually ships in 3-6 days

0

14

Toro 99-9668

VALVE OVERHAUL KIT

$357.99

$

Usually ships in 3-6 days

0

15

Toro 99-9629

HOSE / CLAMP ASM

$70.99

$

Usually ships in 3-6 days

0

15

Toro 99-9039

SHAFT-GEAR

$

$

Not available

16

Toro 99-9630

PLUG-GLOW
(Superseded to 114-4695)

$190.99

$

Usually ships in 3-6 days

0

17

Toro 99-9631

STRAP-PLUG, GLOW

$54.99

$

Usually ships in 3-6 days

0

18

Toro 99-9632

NOZZLE-INJECTOR

$751.99

$

Usually ships in 3-6 days

0

19

Toro 99-9633

SEAT-INJECTOR

$17.99

$

Usually ships in 3-6 days

0

20

Toro 99-9634

PIPE-INJECTOR, NO. 2

$135.99

$

Usually ships in 3-6 days

0

21

Toro 99-9635

PIPE-INJECTOR, NO. 3

$106.99

$

Usually ships in 3-6 days

0

22

Toro 99-9636

PUMP-INJECTION

$

$

Not available

23

Toro 99-9637

PIPE-RETURN, FUEL

$101.99

$

Usually ships in 3-6 days

0
