73590 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY (SERIAL NO. 99000001 & UP)(MODEL 73552) ENGINE ASSEMBLY (SERIAL NO. 99001001 & UP)(MODEL 73590) Parts Diagram

Garden Tractor

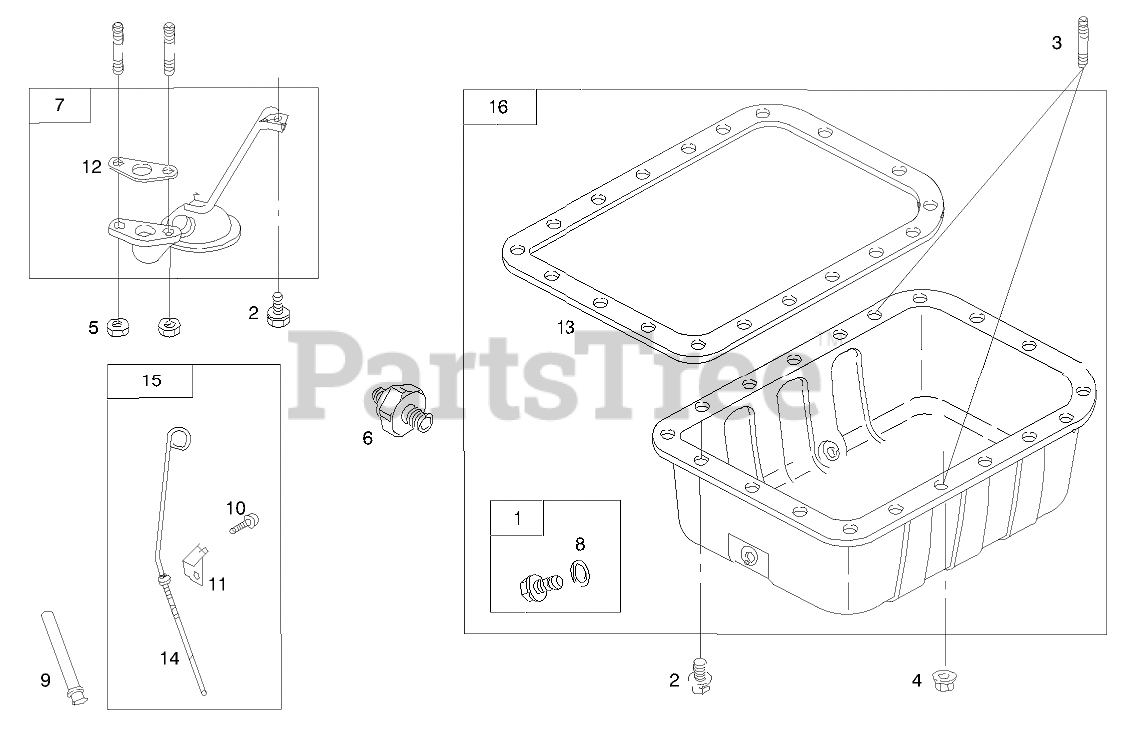

ENGINE ASSEMBLY (SERIAL NO. 99000001 & UP)(MODEL 73552) ENGINE ASSEMBLY (SERIAL NO. 99001001 & UP)(MODEL 73590) Parts Diagram

  • Title

1

Toro 99-9644

PLUG-DRAIN, OIL
(Superseded to 99-9247)

$30.99

$

In Stock, only 2 left!

0

2

Toro 99-9111

SCREW-HEX

$16.99

$

Usually ships in 3-6 days

0

3

Toro 99-9112

STUD-METRIC

$18.99

$

Usually ships in 3-6 days

0

4

Toro 99-9113

NUT-HEX, METRIC

$11.99

$

Usually ships in 3-6 days

0

5

Toro 99-9114

NUT-HEX, METRIC

$16.99

$

Usually ships in 3-6 days

0

6

Toro 99-9115

SWITCH-PRESSURE, OIL

$71.99

$

Usually ships in 3-6 days

0

7

Toro 99-9116

SCREEN-PUMP, OIL

$120.99

$

Usually ships in 3-6 days

0

8

Toro 99-9645

Washer-Seal
(Superseded to 99-9249)

$11.99

$

In Stock, only 4 left!

0

8

Toro 99-9157

SWITCH-TEMPERATURE, WATER

$84.99

$

Usually ships in 3-6 days

0

9

Toro 99-9118

TUBE-DIPSTICK

$24.99

$

Usually ships in 3-6 days

0

9

Toro 99-9667

GASKET-SET

$586.99

$

Usually ships in 3-6 days

0

10

Toro 99-9646

Screw-6mm Hex
(Superseded to 99-9623)

$

$

Not available

11

Toro 99-9647

BRACKET-SUPPORT

$30.99

$

In Stock, Qty 16

0

12

Toro 99-9120

GASKET-STRAINER, OIL

$

$

Not available

13

Toro 99-9121

GASKET-PAN, OIL

$81.99

$

In Stock, only 1 left!

0

14

Toro 99-9650

Dipstick
(Superseded to 99-9122)

$

$

Not available

14

Toro 99-9668

VALVE OVERHAUL KIT

$337.99

$

Usually ships in 3-6 days

0

15

Toro 99-9648

DIPSTICK

$

$

Not available

15

Toro 99-9039

SHAFT-GEAR

$

$

Not available

16

Toro 99-9649

PAN-OIL

$529.99

$

Usually ships in 3-6 days

0
