73590 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) BUMPER & HOOD SUPPORT ASSEMBLY Parts Diagram

Garden Tractor

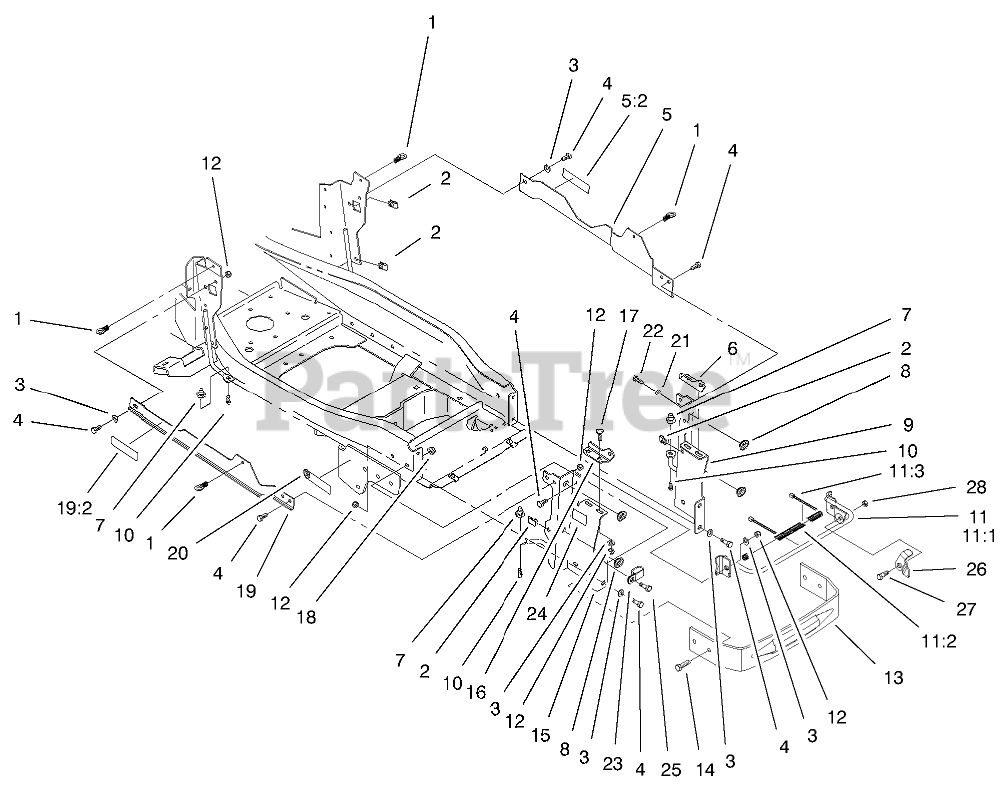

BUMPER & HOOD SUPPORT ASSEMBLY Parts Diagram

  • Title
1

Toro 95-4013

LATCH ASM

$21.99

$

Usually ships in 3-6 days

0

2

$2.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 98-5070

ASM-Support w/Decal (Only On: 73590)

$

$

Not available

5

Toro 98-5064

ASM-Support w/Decal (Only On: 73552)

$

$

Not available

5:2

Toro 98-5014

Decal-Warning (Only On: 73552)

$5.49

$

Usually ships in 3-6 days

0

5:2

Toro 98-5015

Decal-Warning (Only On: 73590)

$

$

Not available

6

Toro 98-9026-03

BRACKET-HINGE, LOWER LH

$

$

Not available

7

Toro 95-3989

MOUNT-SIDEPANEL

$

$

Not available

8

Toro 94-7910

GROMMET

$

$

Not available

9

Toro 95-4082-03

SUPPORT-HOOD, LH

$

$

Not available

10

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

11

Toro 99-5305

SUPPORT-HOOD

$

$

Not available

11:1

Toro 98-9017-03

Hood Support Brace W.a.
(Superseded to 99-5305)

$

$

Not available

11:2

Toro 95-4258

COVER-BRACE

$

$

Not available

11:3

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 94-2308-03

BUMPER-FRAME

$

$

Not available

14

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 95-4081-03

SUPPORT-HOOD, RH

$

$

Not available

16

Toro 98-9027-03

BRACKET-HINGE, LOWER RH

$

$

Not available

17

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 99-5344

ASM Support/Decal (Only On: 73590)

$

$

Not available

19

Toro 99-5345

ASM-Support/Decal (Only On: 73552)

$

$

Not available

19:2

Toro 98-5015

Decal-Warning (Only On: 73590)

$

$

Not available

19:2

Toro 98-5014

Decal-Warning (Only On: 73552)

$5.49

$

Usually ships in 3-6 days

0

20

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.49

$

In Stock, only 1 left!

0

21

Toro 3256-61

Washer-Flat (Only On: 73590)

$2.99

$

In Stock, only 2 left!

0

22

Toro 32144-42

Screw-Selftap (Only On: 73590)

$1.49

$

Usually ships in 3-6 days

0

23

Toro 98-1617

CLAMP-TUBE

$

$

Not available

24

Toro 93-8069

DECAL-SURFACE, HOT

$12.99

$

Usually ships in 3-6 days

0

25

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 98-9015

LEVER-PROP, HOOD

$

$

Not available

27

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, Qty 13

0

28

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0
