73580 (520 Lxi) - Toro Garden Tractor (SN: 210000001 - 210999999) (2001) LIQUID COOLED GAS ENGINE ASSEMBLY Parts Diagram

Garden Tractor

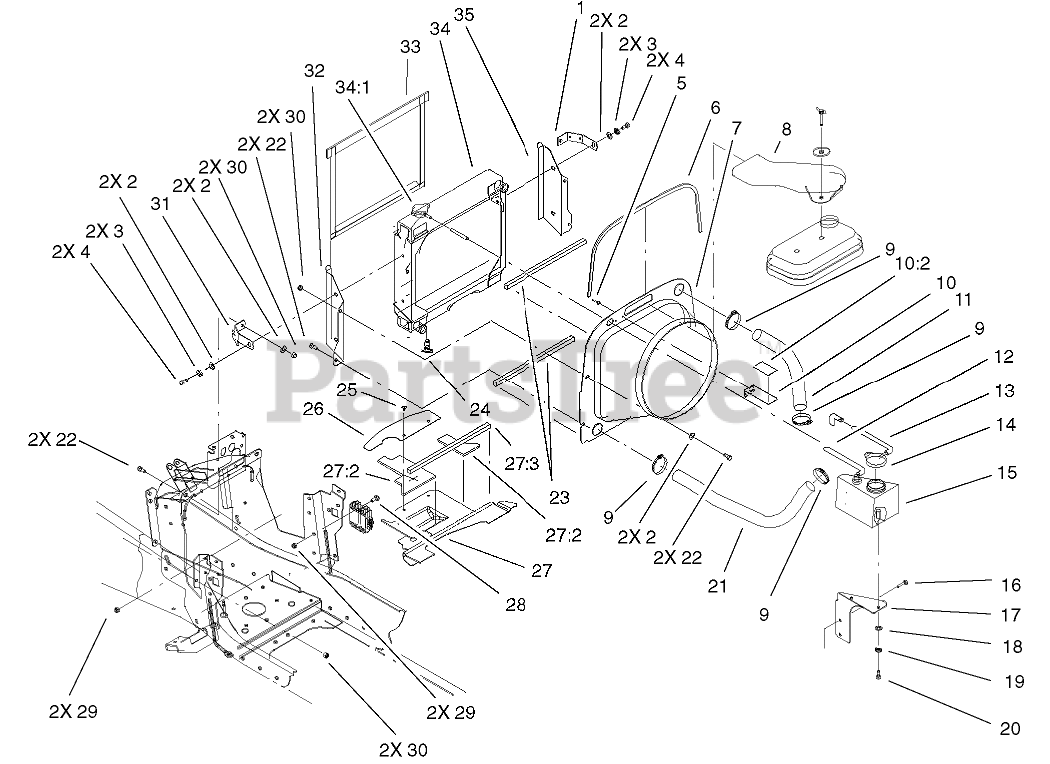

LIQUID COOLED GAS ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 94-7644-03

Strap-Radiator
(Superseded to 94-7644)

$

$

Not available

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

5

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0

6

Toro 98-7216

TRIM - LOC 31"

$

$

Not available

7

Toro 94-7911

SHROUD - FAN

$437.99

$

Usually ships in 3-6 days

0

8

Toro 94-7891

DUCT - AIR, KAWASAKI

$

$

Not available

9

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 4 left!

0

10

Toro 98-5024

FAN/DECAL ASM

$

$

Not available

10:2

Toro 95-4143

DECAL - WARNING

$

$

Not available

11

Toro 95-4268

HOSE - RAD. KAWASKI

$

$

Not available

12

Toro 62-2470

HOSE - FUEL LINE
(Superseded to 109-0310)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 95-4227

HOSE - OVERFLOW

$

$

Not available

14

Toro 95-4191

CAP - COOLANT RESERVOIR
(Superseded to 1-643164)

$19.99

$

In Stock, only 1 left!

0

15

Toro 95-4017

BOTTLE - OVERFLOW

$

$

Not available

16

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

17

Toro 95-4080-03

Brkt-Bottle
(Superseded to 95-4080)

$

$

Not available

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 95-4269

HOSE - RAD. KAWASKI

$138.99

$

Usually ships in 3-6 days

0

22

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 95-4161

FOAM - RADIATOR/SHROUD

$

$

Not available

24

Toro 95-4142

VALVE - DRAIN

$

$

Not available

25

Toro 95-4237

RIVET - PLASTIC

$

$

Not available

26

Toro 95-4170

BAFFLE - TOWER REAR

$

$

Not available

27

Toro 99-8052

BAFFLE-TOWER ASM

$

$

Not available

27:2

Toro 98-5026

FOAM - BAFFLE

$

$

Not available

27:3

Toro 95-4161

FOAM - RADIATOR/SHROUD

$

$

Not available

28

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

29

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 98-3590-03

Bracket-Relay
(Superseded to 98-3590)

$

$

Not available

32

Toro 94-7645-03

Support-Radiator RH
(Superseded to 94-7645)

$

$

Not available

33

Toro 98-1643-03

SCREEN - CHAFF
(Superseded to 98-1643)

$

$

Not available

34

Toro 94-7601

RADIATOR - GAS

$

$

Not available

34:1

Toro 93-5957

CAP-RADIATOR

$21.99

$

In Stock, only 1 left!

0

35

Toro 94-7646-03

Support-LH Radiator
(Superseded to 94-7646)

$

$

Not available
