73580 (520 Lxi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) STARTER ASSEMBLY Parts Diagram

Garden Tractor

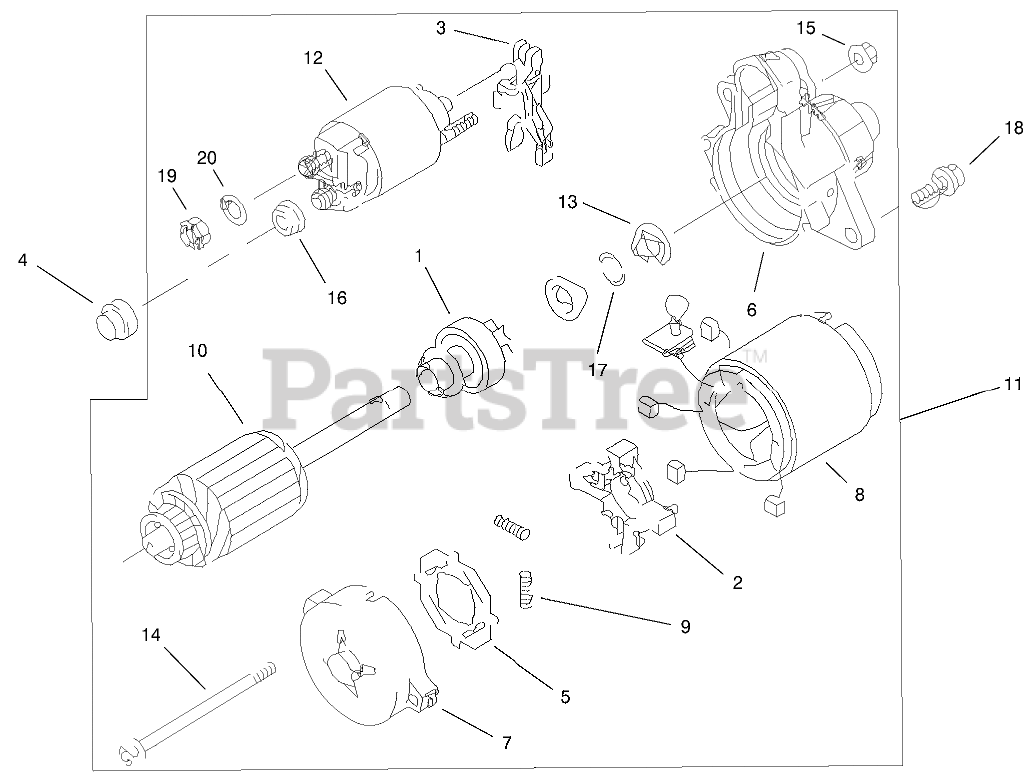

STARTER ASSEMBLY Parts Diagram

  • Title
1

Toro 95-9961

CLUTCH ASM

$

$

Not available

2

Toro KW10048

HOLDER-BRUSH

$

$

Not available

3

Toro KW10051

LEVER-SHIFT

$

$

Not available

4

Toro 95-9963

COVER

$

$

Not available

5

Toro KW10073

INSULATOR

$34.99

$

Usually ships in 3-6 days

0

6

Toro 95-9964

COVER ASM

$

$

Not available

7

Toro 95-9965

COVER ASM

$

$

Not available

8

Toro KW10081

BRUSH

$

$

Not available

9

Toro KW10082

SPRING-BRUSH

$

$

Not available

10

Toro KW10084

ARMATURE

$

$

Not available

11

Toro 95-9966

STARTER - ELECTRIC

$

$

Not available

12

Toro KW10098

SWITCH ASSY

$

$

Not available

13

Toro 95-9967

STOPPER

$17.99

$

Usually ships in 3-6 days

0

14

$36.99

$

Usually ships in 3-6 days

0

15

$

$

Not available

16

$

$

Not available

17

Toro KW10219

RING-SNAP

$

$

Not available

18

Toro KW10031

BOLT-FLANGED (8X30)

$1.99

$

Usually ships in 3-6 days

0

19

Toro 95-9968

NUT - HEX, SMALL

$

$

Not available

20

Toro KW10143

Washer

$

$

Not available
